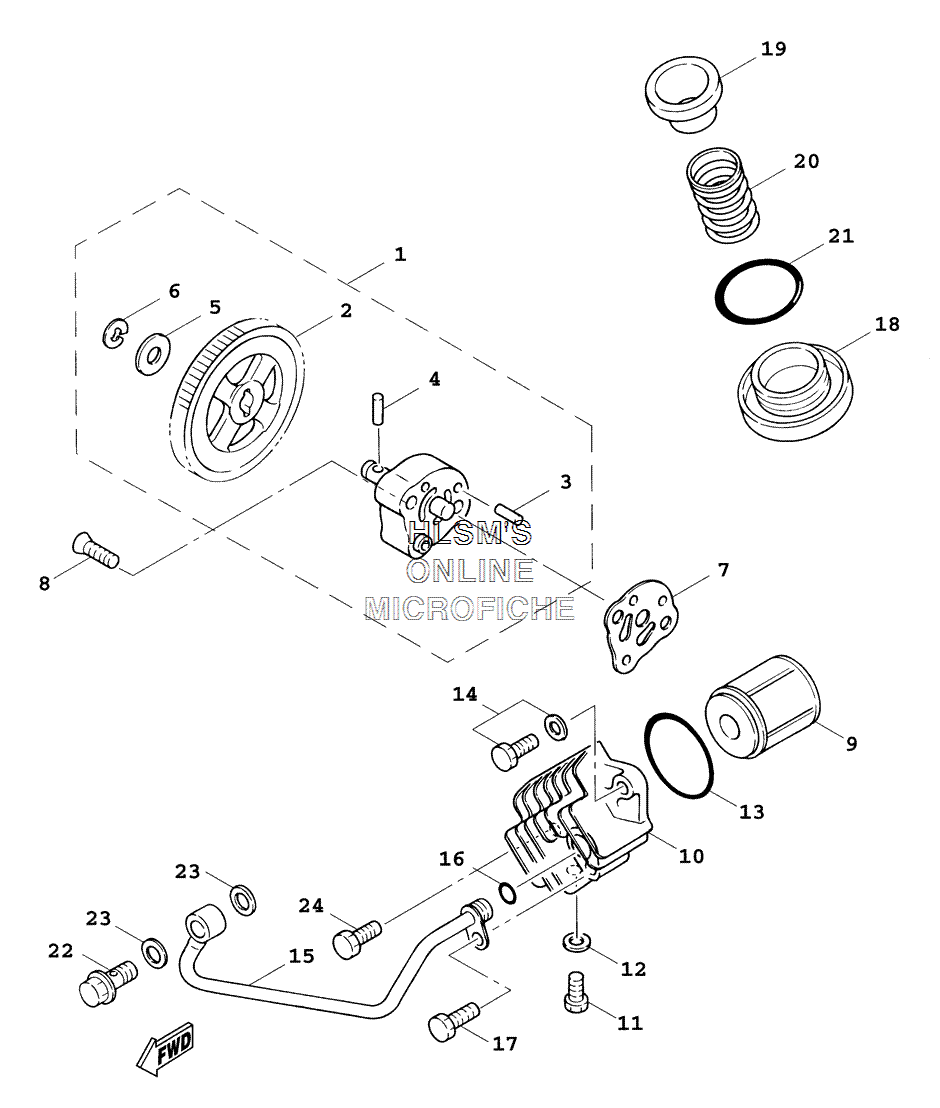

OIL PUMP W/ CLEANER для Yamaha VINO 125 - 2006 года выпуска
-
№АртикулНазвание
-
14CW-E3300-20-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
24CW-E3325-10-00 ...GEAR, PUMP DRIVEN...GEAR, PUMP DRIVEN
-
393603-12833-00 ...PIN, DOWEL...PIN, DOWEL
-
493602-13832-00 ...PIN, DOWEL...PIN, DOWEL
-
590201-077F5-00 ...WASHER, PLATE...WASHER, PLATE
-
699001-05600-00 ...CIRCLIP...CIRCLIP
-
73UH-E3475-00-00 GASKETGASKET
-
898707-06020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
93UH-E3440-00-00 ELEMENT ASSY., OIL CLEANERELEMENT ASSY., OIL CLEANER
-
105NV-E3447-00-00 COVER, OIL ELEMENTCOVER, OIL ELEMENT
-
1197007-06010-00 BOLTBOLT
-
1290430-06166-00 GASKETGASKET
-
1393210-44880-00 O-RINGO-RING
-
1490119-06841-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
154CW-E3405-00-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
1693210-08006-00 O-RINGO-RING
-
1791317-06012-00 BOLTBOLT
-
185NW-E5341-00-00 PLUG, DRAINPLUG, DRAIN
-
193KW-E3411-00-00 STRAINER, OILSTRAINER, OIL
-
2090501-16829-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2193210-35879-00 O-RINGO-RING
-
2290401-08803-00 BOLT, UNIONBOLT, UNION
-
2390201-08087-00 WASHER, PLATEWASHER, PLATE
-
2490119-06840-00 BOLT, WITH WASHERBOLT, WITH WASHER
