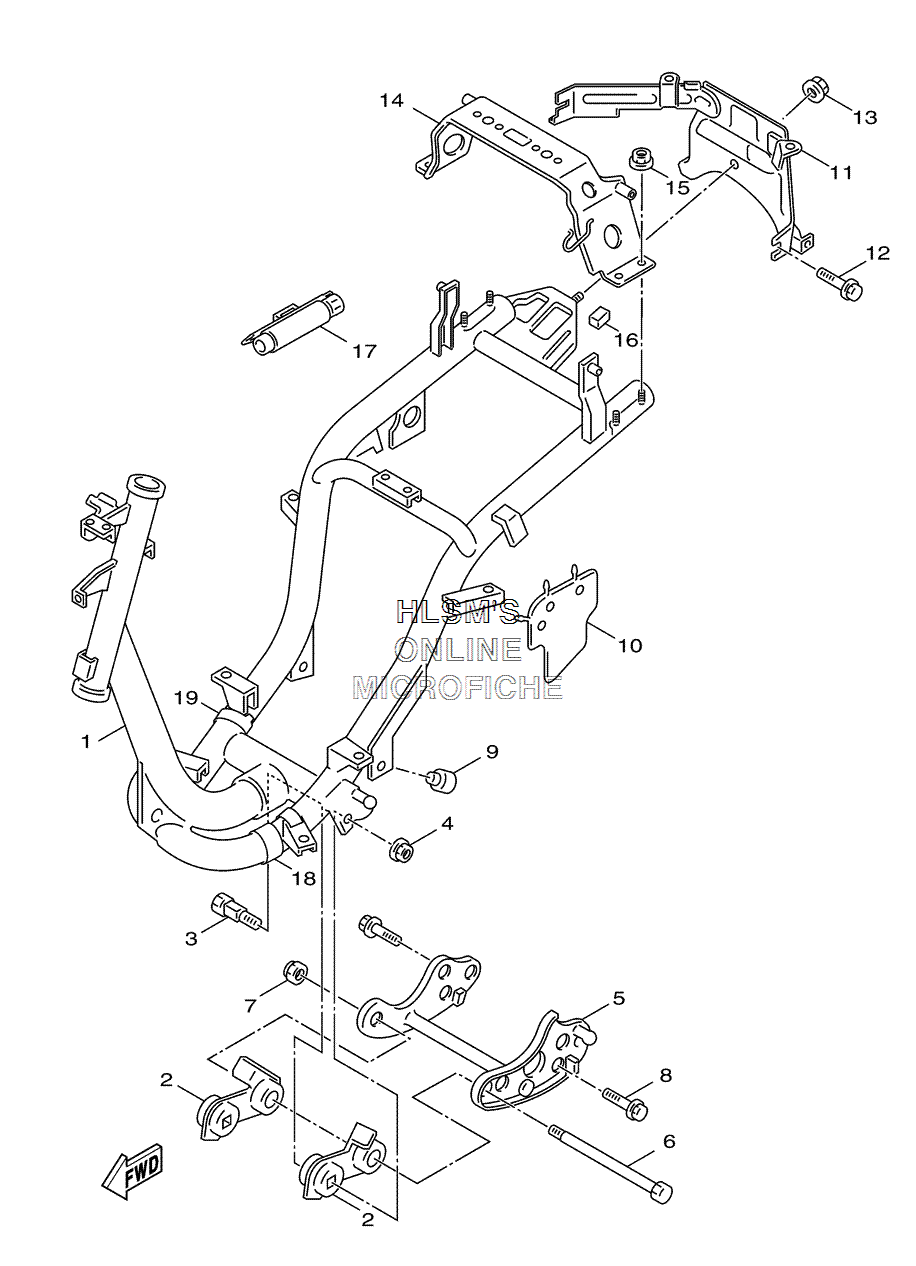

FRAME для Yamaha VINO 125 - 2006 года выпуска
-
№АртикулНазвание
-
15YR-F1110-00-33 FRAME COMP. (BLACK)FRAME COMP. (BLACK)
-
24TE-F1420-11-00 ENGINE BRACKET COMP. 2ENGINE BRACKET COMP. 2
-
34CW-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
490185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
54TE-F1410-00-00 ENGINE BRACKET COMP.ENGINE BRACKET COMP.
-
690105-10836-00 BOLT, FLANGEBOLT, FLANGE
-
790185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
895807-10030-00 BOLT, FLANGEBOLT, FLANGE
-
94CW-F7114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
105JS-F1521-00-00 FLAP, FRONT FENDERFLAP, FRONT FENDER
-
115YR-F1232-00-00 REINFORCEMENT, TAILREINFORCEMENT, TAIL
-
1295707-06500-00 NUT, FLANGENUT, FLANGE
-
1395707-08500-00 NUT, FLANGENUT, FLANGE
-
145YR-F1349-00-00 BRACKET, SEATBRACKET, SEAT
-
1595707-06500-00 NUT, FLANGENUT, FLANGE
-
165JS-F4182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
174TE-F8100-00-00 TOOL KITTOOL KIT
-
185YR-F1541-00-00 DAMPER 1DAMPER 1
-
195YR-F1542-00-00 DAMPER 2DAMPER 2
