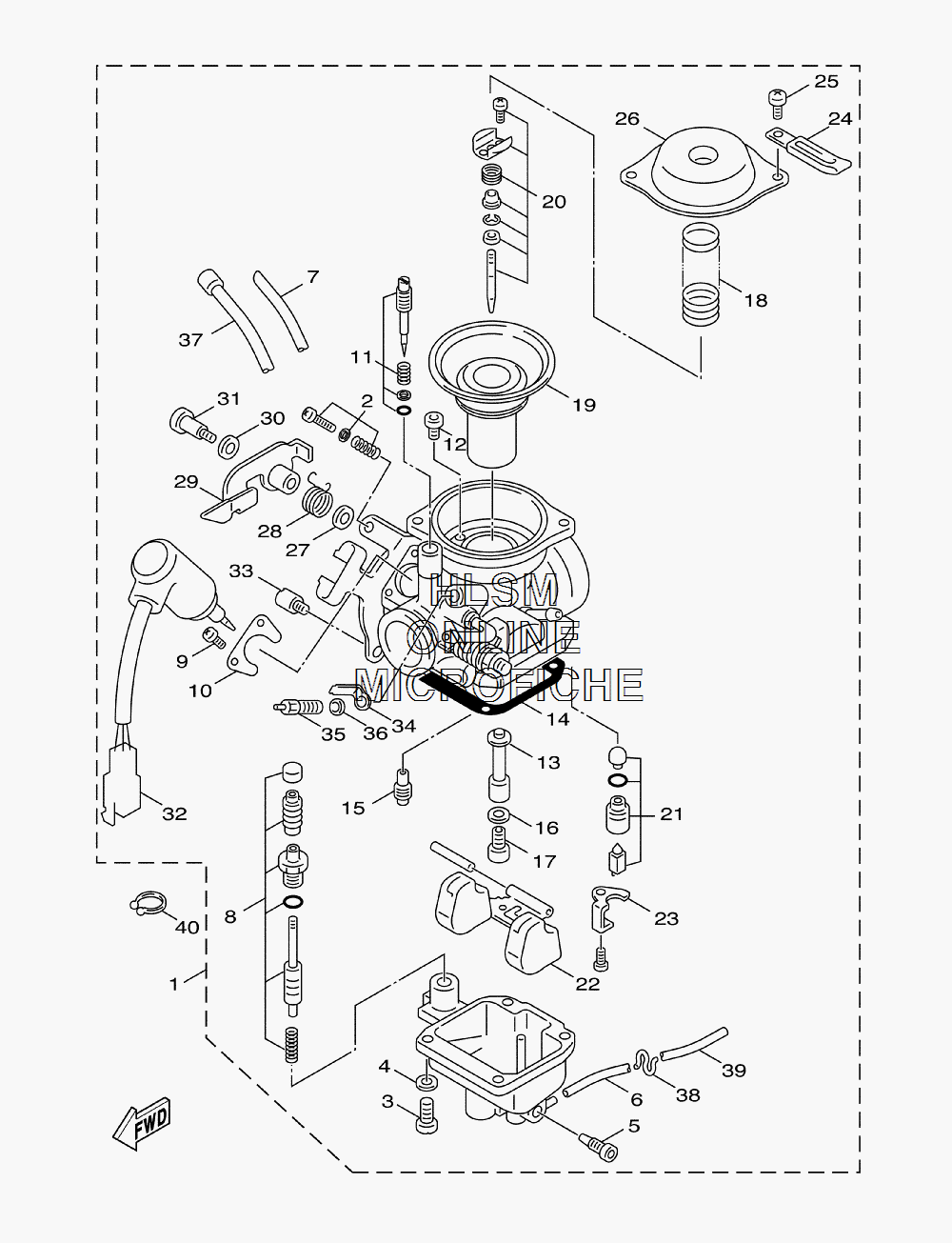

CARBURETOR ASSY. для Yamaha VINO 125 - 2007 года выпуска
-
№АртикулНазвание
-
15YR-E4901-00-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
24CW-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
398507-04014-00 ...SCREW, PAN HEAD N15...SCREW, PAN HEAD N15
-
492907-04100-00 ...WASHER (6TA)...WASHER (6TA)
-
54KP-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
6353-14196-00-00 ...PIPE...PIPE
-
75CY-14197-00-00 ...PIPE...PIPE
-
84CW-14504-00-00 ...ROD SET...ROD SET
-
998507-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
104CW-14243-00-00 ...PLATE...PLATE
-
115NN-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
123G2-14231-32-00 ...JET, MAIN (#160)...JET, MAIN (#160)
-
135NN-14141-34-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
144CW-14959-00-00 ...GASKET...GASKET
-
15193-14142-22-00 ...JET, PILOT (#22.5)...JET, PILOT (#22.5)
-
16137-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
17620-1423A-70-00 ...JET, MAIN (#97.5)...JET, MAIN (#97.5)
-
183UR-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
194CW-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
205NN-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
213KW-14107-20-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
224G0-14985-00-00 ...FLOAT...FLOAT
-
233UH-14945-00-00 ...PLATE...PLATE
-
243UH-14146-00-00 ...PLATE...PLATE
-
2598507-05008-00 ...SCREW, PAN HEAD (JN2)...SCREW, PAN HEAD (JN2)
-
264CW-14958-00-00 ...COVER, DIAPHRAGM...COVER, DIAPHRAGM
-
274CW-14962-00-00 ...WASHER...WASHER
-
285CY-14589-00-00 ...SPRING...SPRING
-
295CY-14582-00-00 ...LEVER...LEVER
-
304CW-14117-00-00 ...WASHER, PLUG SCREW...WASHER, PLUG SCREW
-
314CW-14115-00-00 ...PLUG, SCREW...PLUG, SCREW
-
325YR-14171-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
335CY-14216-00-00 ...SCREW...SCREW
-
344DH-82103-00-00 ...TERMINAL 1...TERMINAL 1
-
355FU-83790-00-00 ...HEATER ASSY (15W)...HEATER ASSY (15W)
-
365CY-14951-00-00 ...WASHER...WASHER
-
375NN-14987-00-00 ...HOSE...HOSE
-
385YR-1410F-00-00 ...CONNECTOR...CONNECTOR
-
393XV-14349-20-00 ...PIPE...PIPE
-
4090464-23811-00 CLAMPCLAMP
