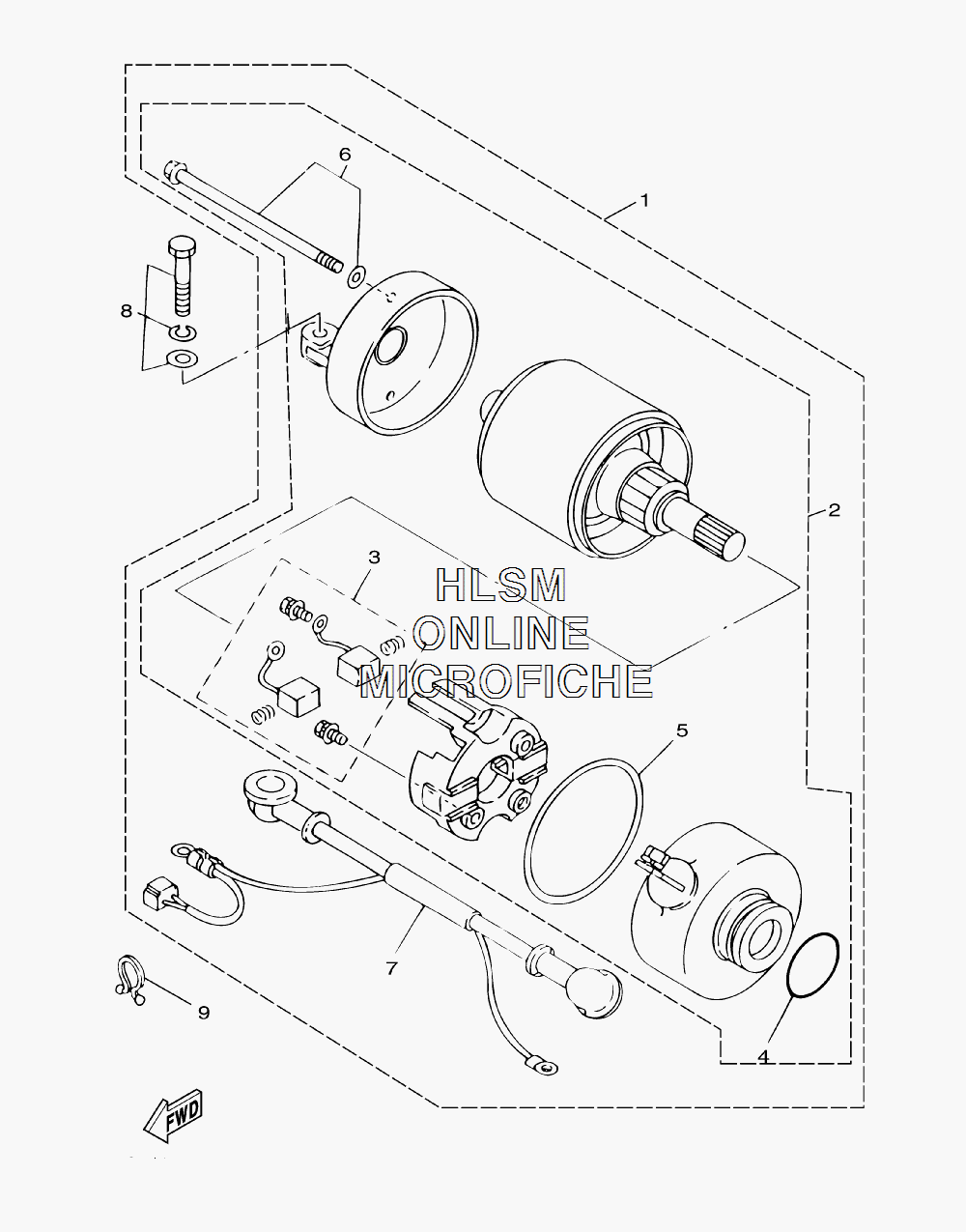

STARTING MOTOR ASSY. для Yamaha VINO 125 - 2007 года выпуска
-
№АртикулНазвание
-
14TE-H1800-10-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
24CW-W8180-00-00 ...ELECTRIC STARTER KIT...ELECTRIC STARTER KIT
-
33KW-H1801-00-00 ...BRUSH SET...BRUSH SET
-
493210-26668-00 ...O-RING...O-RING
-
53KW-H1861-00-00 ...GASKET...GASKET
-
63UH-H1828-01-00 ...BOLT 2...BOLT 2
-
74TE-H183G-00-00 ...CORD COMP....CORD COMP.
-
897507-06625-00 BOLT, HEX HEAD W/WASHERBOLT, HEX HEAD W/WASHER
-
990464-23811-00 CLAMPCLAMP
