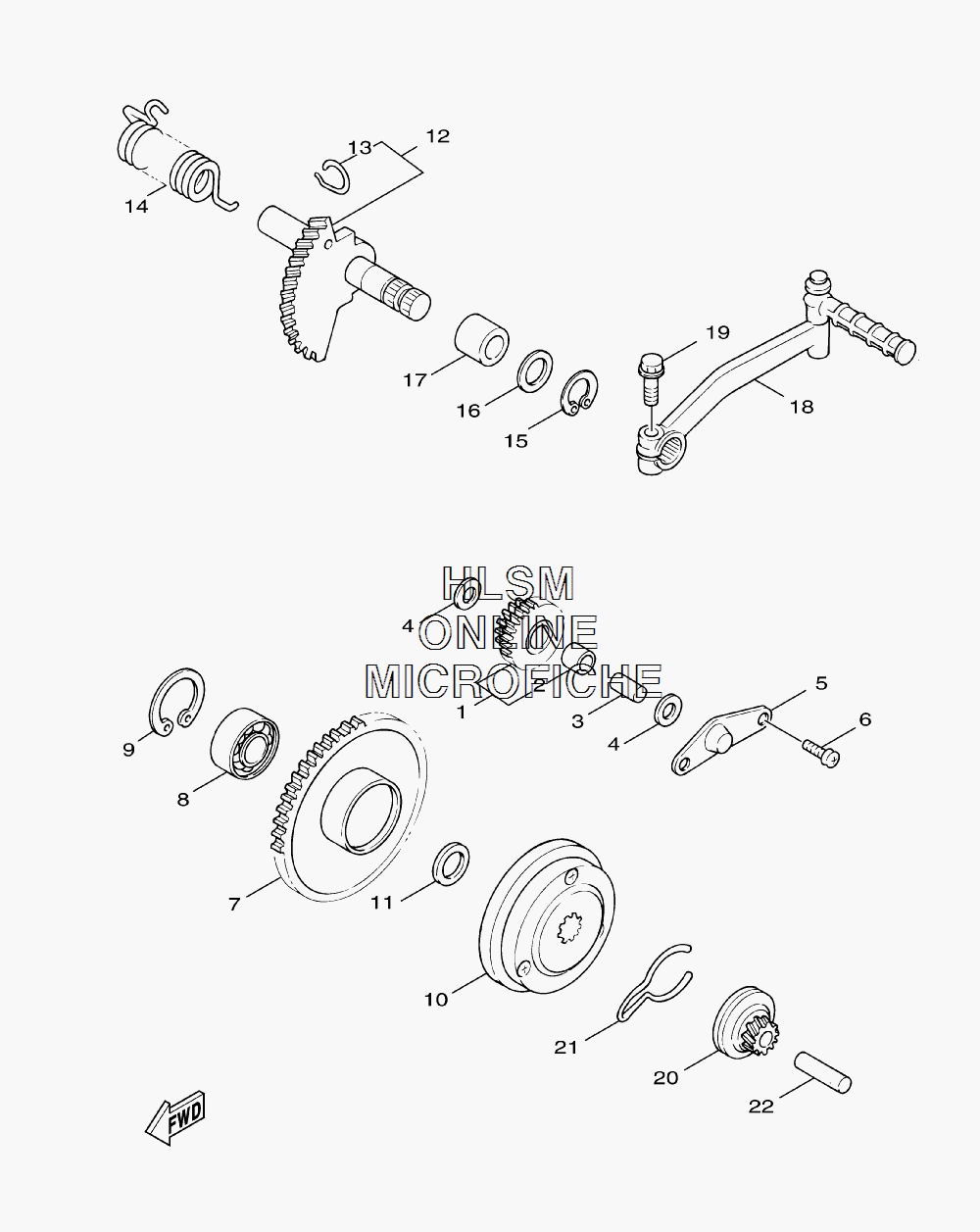

STARTER CLUTCH ASSY. для Yamaha VINO 125 - 2007 года выпуска
-
№АртикулНазвание
-
14CW-E5650-00-00 IDLE GEAR ASSYIDLE GEAR ASSY
-
293315-110Y6-00 ...BEARING...BEARING
-
35CA-E5521-00-00 SHAFT 1SHAFT 1
-
490201-108A3-00 WASHER, PLATEWASHER, PLATE
-
53UH-E5532-00-00 PLATE, IDLE GEARPLATE, IDLE GEAR
-
698507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
74CW-E5524-01-00 WHEEL, STARTERWHEEL, STARTER
-
893306-003Y4-00 BEARINGBEARING
-
993450-35015-00 CIRCLIP, INNERCIRCLIP, INNER
-
104CW-E5570-00-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
1190201-163G6-00 WASHER, PLATEWASHER, PLATE
-
125NW-E5601-00-00 KICK SHAFT ASSYKICK SHAFT ASSY
-
134CW-E5687-00-00 ...CLIP...CLIP
-
1490508-40804-00 SPRING, TORSIONSPRING, TORSION
-
1599009-17400-00 CIRCLIPCIRCLIP
-
1690201-175F6-00 WASHER, PLATEWASHER, PLATE
-
1790380-17806-00 BUSH, SOLIDBUSH, SOLID
-
184CW-E5620-00-00 KICK CRANK ASSYKICK CRANK ASSY
-
1991317-08030-00 BOLT, SOCKETBOLT, SOCKET
-
204CW-E5630-00-00 KICK PINION ASSYKICK PINION ASSY
-
214CW-E5673-00-00 CLIPCLIP
-
224CW-E5659-00-00 SHAFTSHAFT
