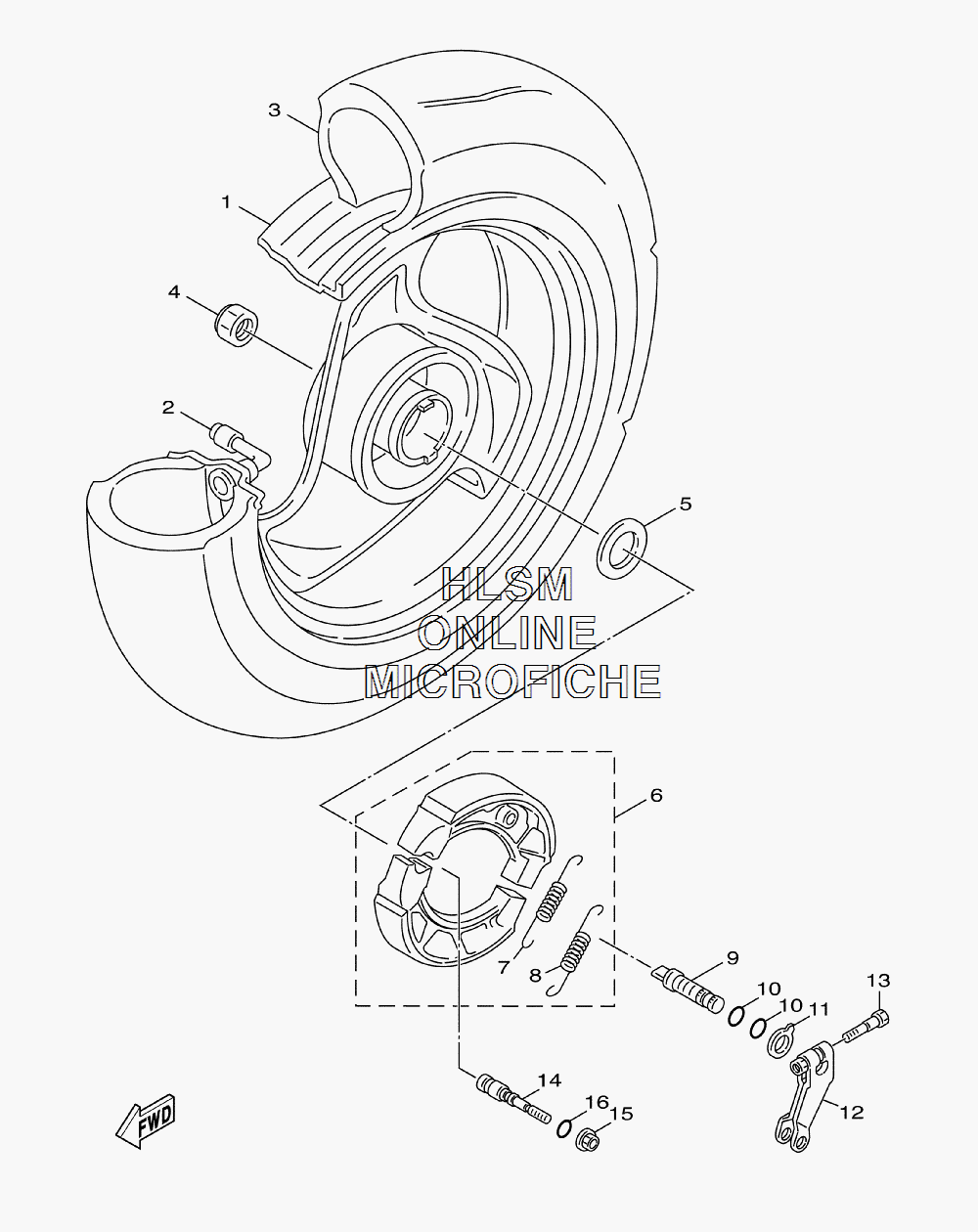

WHEEL - REAR для Yamaha VINO 125 - 2007 года выпуска
-
№АртикулНазвание
-
14HP-F5338-12-1V CAST WHEEL, REAR (FS)CAST WHEEL, REAR (FS)
-
293900-00802-00 VALVE, RIMVALVE, RIM
-
394135-108H0-00 TIRE (3.50-10) (CHENGSHIN)TIRE (3.50-10) (CHENGSHIN)
-
490185-14124-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590201-20276-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
65YR-X2533-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
790506-12001-00 ...SPRING, TENSION...SPRING, TENSION
-
890506-15001-00 ...SPRING, TENSION...SPRING, TENSION
-
95YR-F5351-00-00 CAMSHAFTCAMSHAFT
-
1093210-09859-00 O-RINGO-RING
-
114CW-F533A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
124CW-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
1390101-06278-00 BOLTBOLT
-
143C8-F5326-00-00 PIN, PIVOTPIN, PIVOT
-
1595707-10500-00 NUT, FLANGE (8AB)NUT, FLANGE (8AB)
-
1693210-07890-00 O-RINGO-RING
