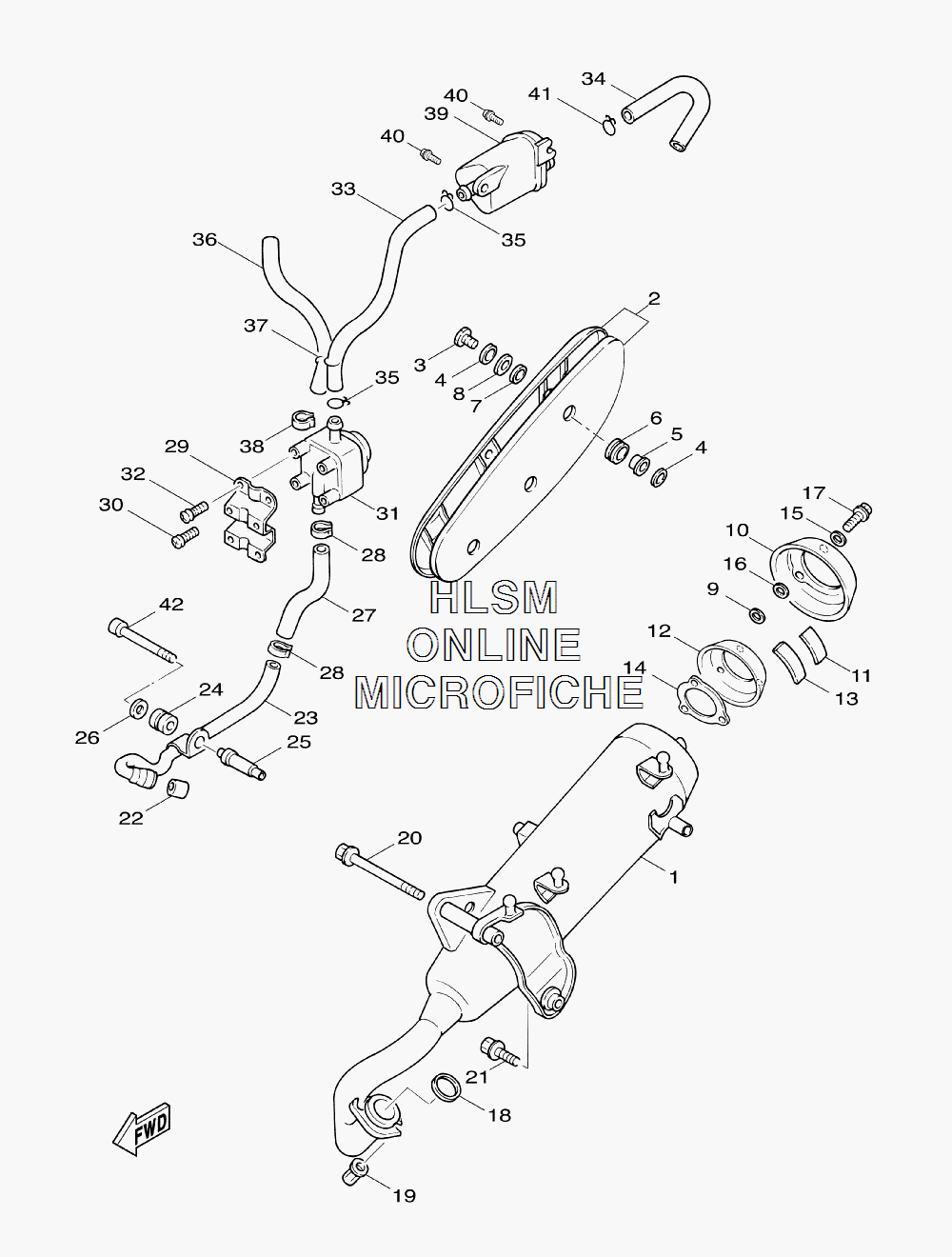

EXHAUST ASSY. для Yamaha VINO 125 - 2007 года выпуска
-
№АртикулНазвание
-
15YR-E4610-00-98 EXHAUST PIPE ASSY 1 (LGB)EXHAUST PIPE ASSY 1 (LGB)
-
25JS-E4708-10-00 PROTECTOR ASSYPROTECTOR ASSY
-
398980-06020-00 SCREW, BINDSCREW, BIND
-
490201-06814-00 WASHER, PLATEWASHER, PLATE
-
55JS-E4779-00-00 COLLARCOLLAR
-
65JS-E4445-00-00 GROMMETGROMMET
-
75JS-E4759-00-00 WASHERWASHER
-
85JS-E4617-00-00 WASHERWASHER
-
94CW-E4766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
105HK-E4799-01-00 CAPCAP
-
115HK-E478J-00-00 FIBER, 12FIBER, 12
-
125HK-E4787-00-00 CAP, SILENCERCAP, SILENCER
-
135HK-E478H-00-00 FIBER, 11FIBER, 11
-
145HK-E478G-00-00 FIBER, 10FIBER, 10
-
1592907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1690201-064J1-00 WASHER, PLATEWASHER, PLATE
-
1798907-06025-00 SCREW, BINDSCREW, BIND
-
184DH-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1990179-06850-00 NUTNUT
-
2095817-08110-00 BOLT, FLANGEBOLT, FLANGE
-
2195817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2242H-14714-10-00 GASKET, MUFFLERGASKET, MUFFLER
-
235NN-E4872-00-00 PIPE 2PIPE 2
-
2490480-15520-00 GROMMETGROMMET
-
254CW-E4876-00-00 PIPE 6PIPE 6
-
2690201-06557-00 WASHER, PLATEWASHER, PLATE
-
274CW-E4883-00-00 HOSE, BEND 3HOSE, BEND 3
-
2890468-08812-00 CLIPCLIP
-
294CW-E4849-00-00 BRACKETBRACKET
-
3098507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
314CW-E4803-12-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
3298507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
334TE-E4884-00-00 HOSE, BEND 4HOSE, BEND 4
-
345YR-E4885-00-00 HOSE, BEND 5HOSE, BEND 5
-
3590467-16829-00 CLIPCLIP
-
365NN-E3542-00-00 HOSE, VACUUM SENSING 1HOSE, VACUUM SENSING 1
-
3790464-23811-00 CLAMPCLAMP
-
3890467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
394CW-E4806-00-00 AIR FILTER CASE ASSY.AIR FILTER CASE ASSY.
-
4095807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4190467-16829-00 CLIPCLIP
-
4291317-06075-00 BOLTBOLT
