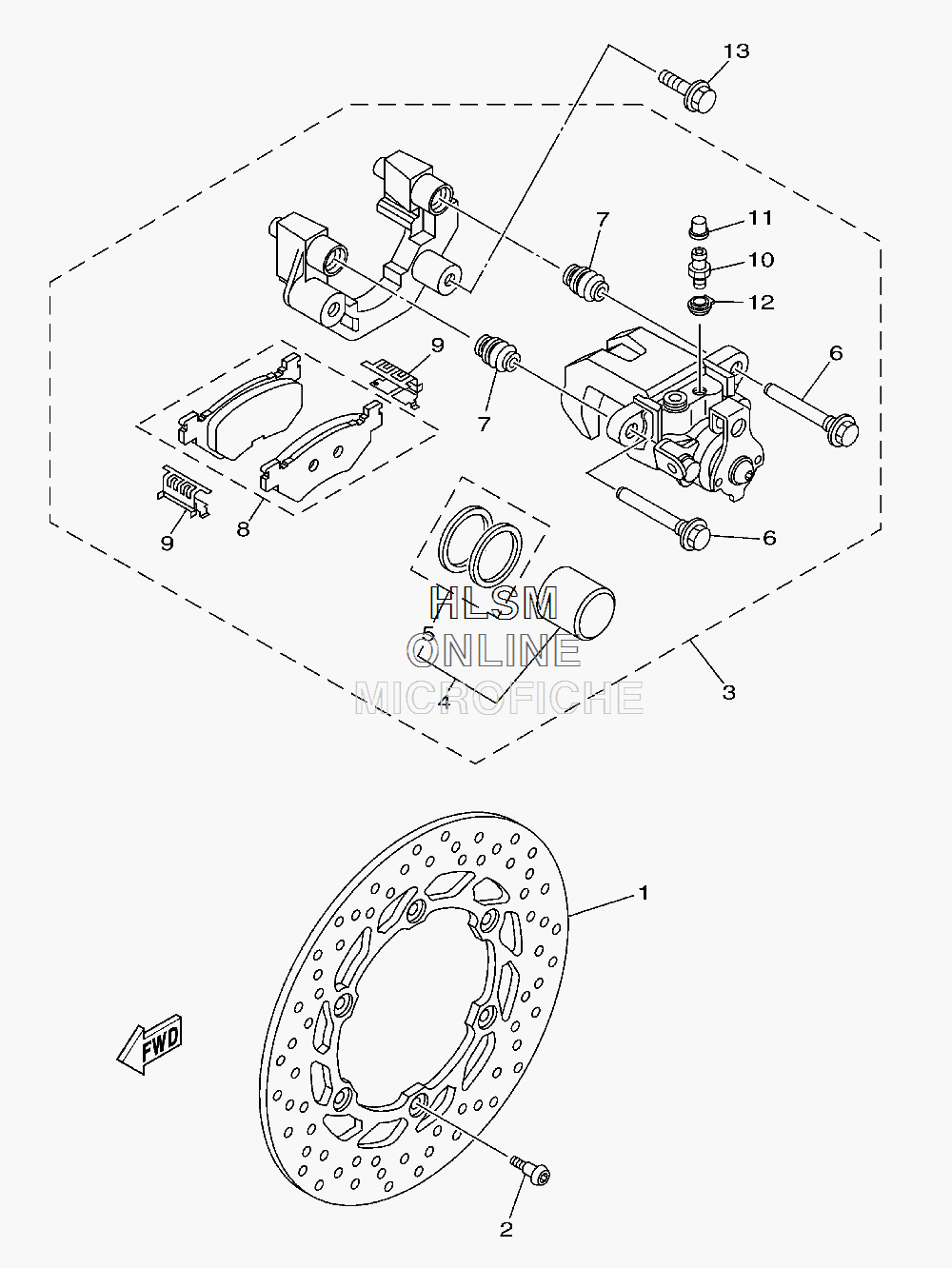

BRAKE - REAR CALIPER для Yamaha TMAX - 2011 года выпуска
-
№АртикулНазвание
-
14B5-2582V-00-00 DISC, REAR BRAKE 1DISC, REAR BRAKE 1
-
290109-064G6-00 BOLTBOLT
-
34B5-2580V-00-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
44D9-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55GJ-W0047-01-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
64D9-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
85RU-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
94TT-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
105GM-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
111D7-25825-00-00 ...CAP...CAP
-
125GM-25975-00-00 ...RUBBER, BUSHING...RUBBER, BUSHING
-
1390105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
