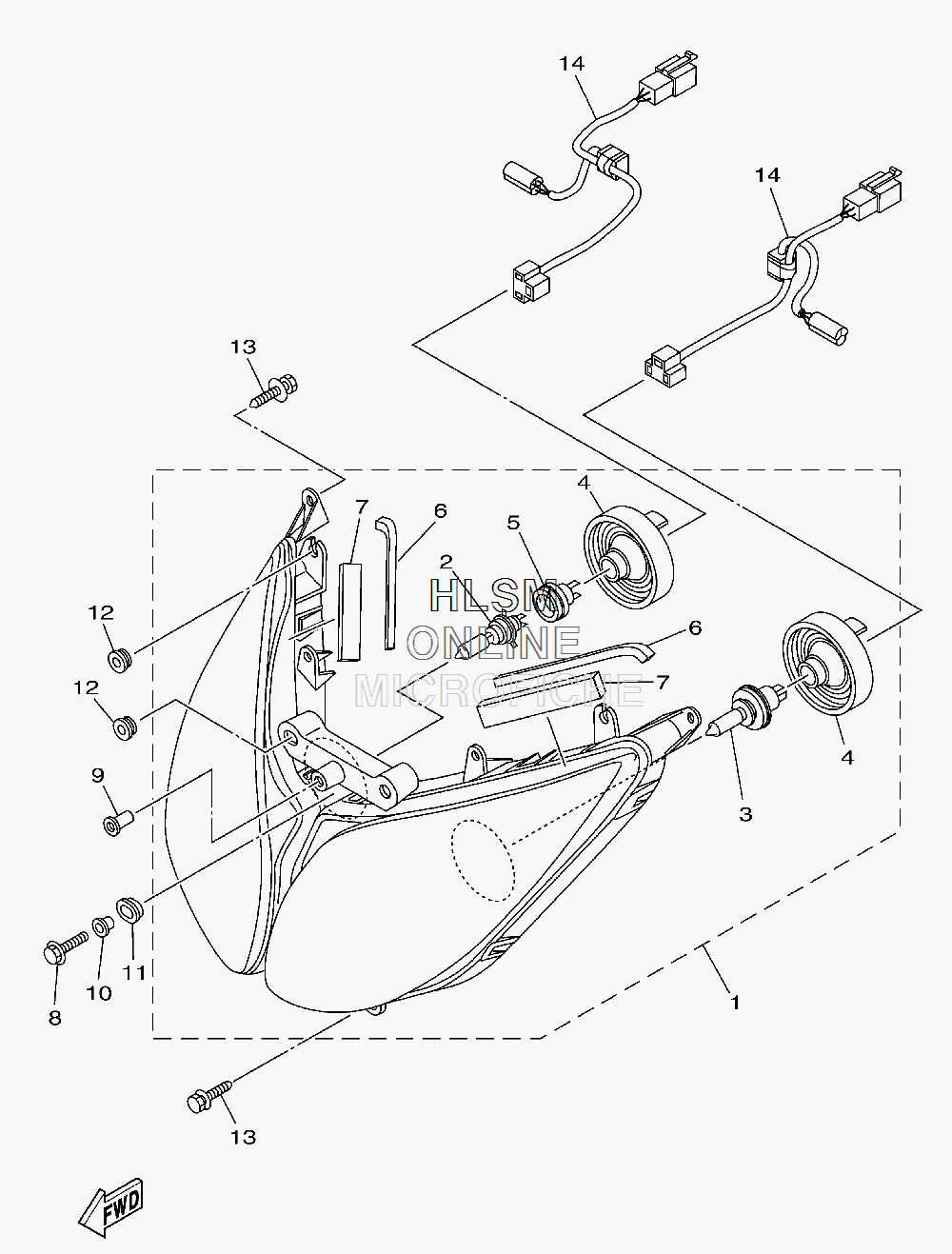

HEADLIGHT ASSY. для Yamaha TMAX - 2011 года выпуска
-
№АртикулНазвание
-
14B5-84310-31-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
24SV-84314-00-00 ...BULB (12V-55W)...BULB (12V-55W)
-
38G9-84314-00-00 ...BULB (12V-60/55W)...BULB (12V-60/55W)
-
45GJ-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
54SV-84350-00-00 ...SOCKET CORD ASSY 2...SOCKET CORD ASSY 2
-
690520-10008-00 ...DAMPER, PLATE...DAMPER, PLATE
-
77TD-14747-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
895802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
990179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1090387-06160-00 COLLARCOLLAR
-
1190480-01559-00 GROMMETGROMMET
-
1290480-13398-00 GROMMETGROMMET
-
1390119-06156-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
144B5-84359-30-00 CORD, HEADLIGHTCORD, HEADLIGHT
