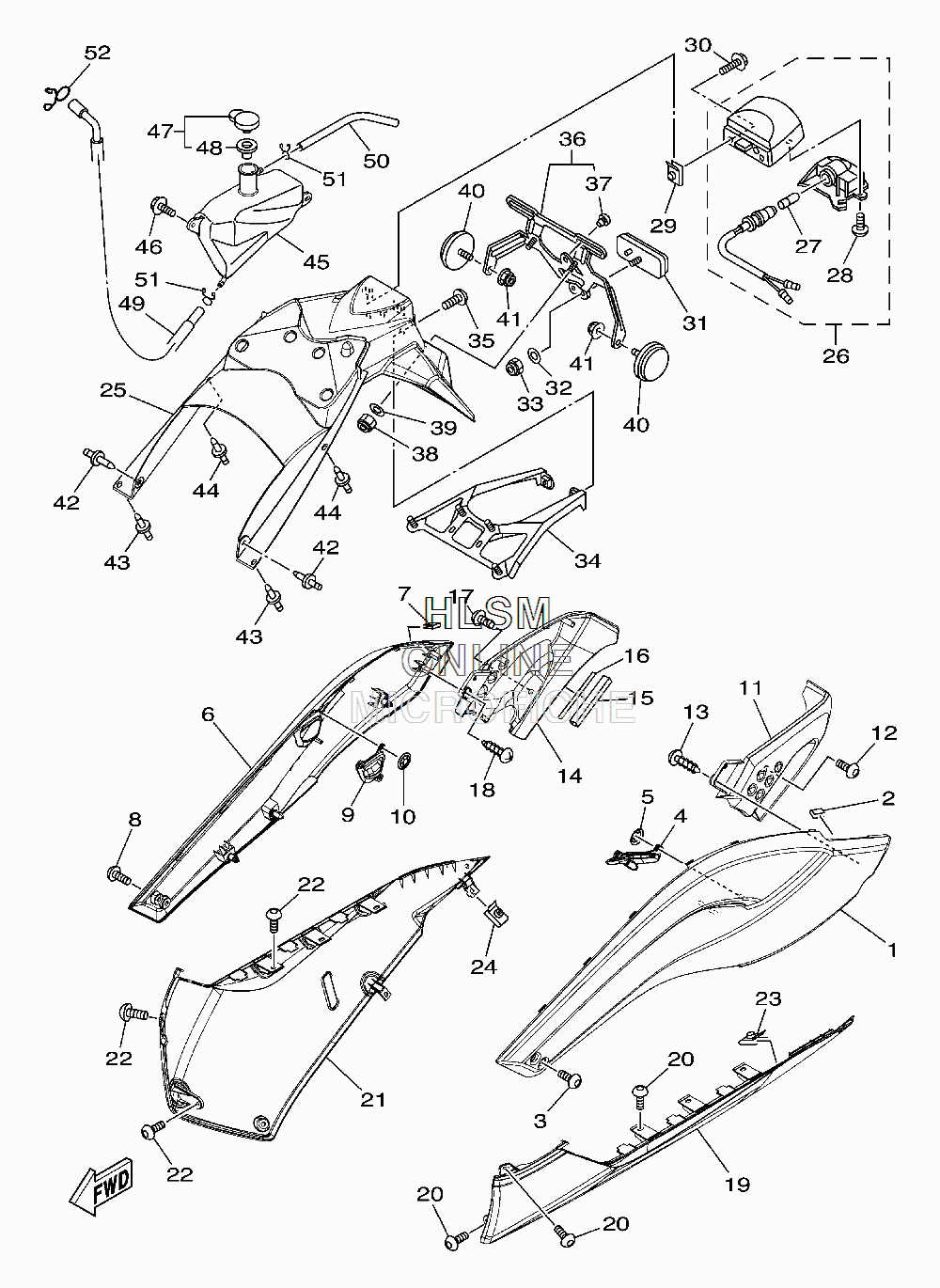

SIDE COVER 2 для Yamaha TMAX - 2011 года выпуска
-
№АртикулНазвание
-
14B5-21731-00-P2 COVER, SIDE 3 (MBL2) (FOR SMX)COVER, SIDE 3 (MBL2) (FOR SMX)
-
24B5-21732-00-00 SEAL 1SEAL 1
-
392014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
44B5-27475-00-00 CAP 1CAP 1
-
590183-05M02-00 NUT, SPRINGNUT, SPRING
-
64B5-21741-00-P2 COVER, SIDE 4 (MBL2) (FOR SMX)COVER, SIDE 4 (MBL2) (FOR SMX)
-
74B5-21732-00-00 SEAL 1SEAL 1
-
892014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
94B5-27476-00-00 CAP 2CAP 2
-
1090183-05M02-00 NUT, SPRINGNUT, SPRING
-
114B5-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
1290110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1397702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
144B5-27423-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
155KE-28345-10-00 MOLE 1MOLE 1
-
164B5-21669-00-00 SEALSEAL
-
1790110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
194B5-2171L-00-P1 MOLE, SIDE COVER 1 (FOR SMX)MOLE, SIDE COVER 1 (FOR SMX)
-
2090167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
214B5-2171M-01-P1 MOLE, SIDE COVER 2 (FOR SMX)MOLE, SIDE COVER 2 (FOR SMX)
-
2290167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
2390183-05042-00 NUT, SPRINGNUT, SPRING
-
2490183-050A6-00 NUT, SPRINGNUT, SPRING
-
254B5-2152R-00-00 GUARD, MUDGUARD, MUD
-
264B5-84745-00-00 LICENCE LIGHT UNIT ASSYLICENCE LIGHT UNIT ASSY
-
274HC-84744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
2897707-40612-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2990183-05014-00 NUT, SPRINGNUT, SPRING
-
3090119-05023-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
313Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
3290201-05043-00 WASHER, PLATEWASHER, PLATE
-
3395602-05100-00 NUT, UNUT, U
-
344B5-2172K-10-00 BRACKET 1BRACKET 1
-
3590111-06109-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
364B5-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
3790338-07043-00 ...PLUG...PLUG
-
3895607-06100-00 NUT, UNUT, U
-
3990201-062A8-00 WASHER, PLATEWASHER, PLATE
-
40449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
4195602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4290269-06001-00 RIVETRIVET
-
4390269-06001-00 RIVETRIVET
-
4490269-06001-00 RIVETRIVET
-
454B5-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
4690119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
471AA-21815-00-00 CAPCAP
-
481AA-21874-00-00 ...GASKET...GASKET
-
494B5-21816-00-00 PIPE 1PIPE 1
-
5090445-09094-00 HOSE (L210)HOSE (L210)
-
5190467-090A2-00 CLIPCLIP
-
5290467-100A1-00 CLIPCLIP
