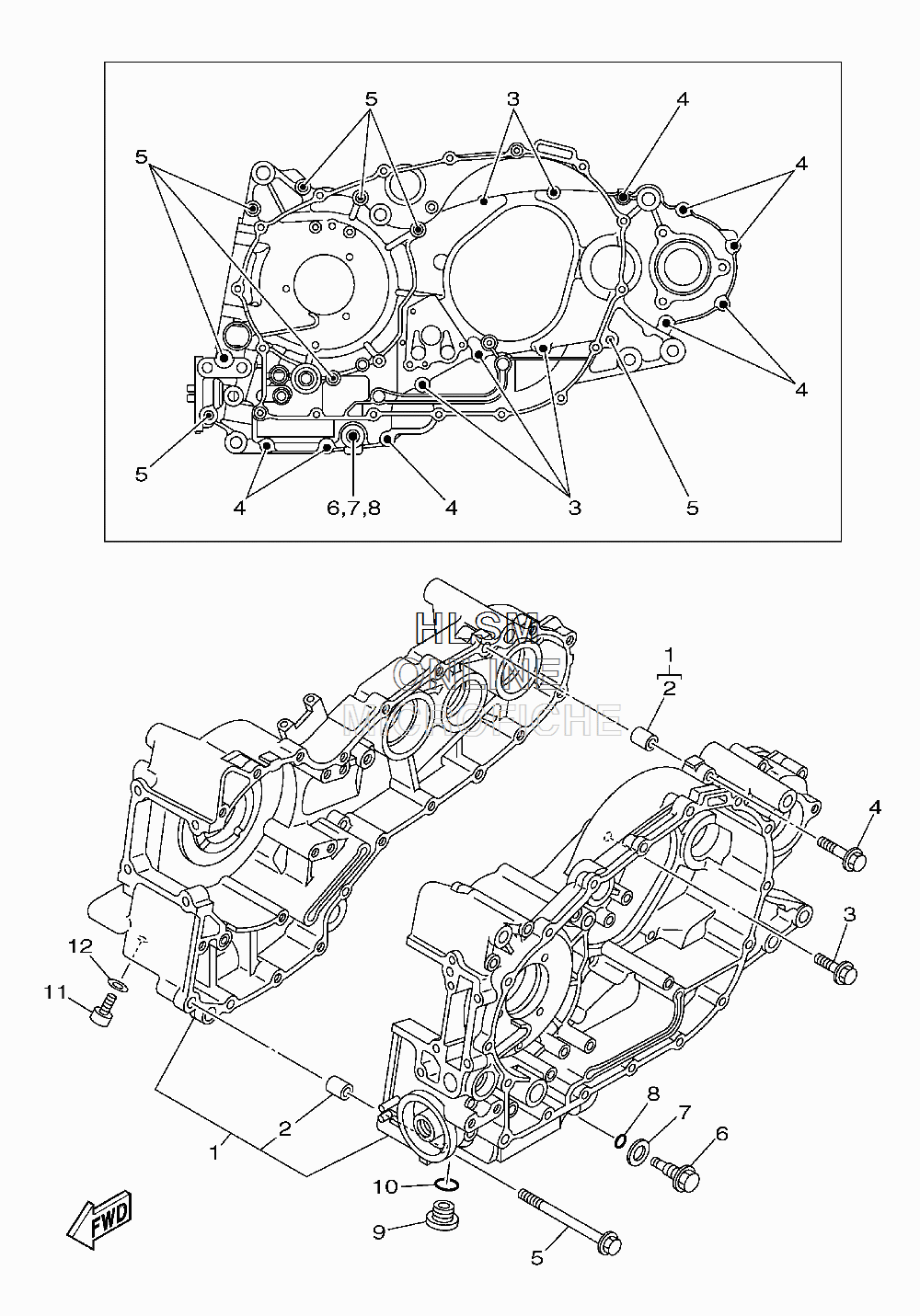

CRANKCASE ASSY. для Yamaha TMAX - 2011 года выпуска
-
№АртикулНазвание
-
14B5-15100-09-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10114-00 ...PIN, DOWEL...PIN, DOWEL
-
395022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
495022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
595022-08110-00 BOLT, FLANGEBOLT, FLANGE
-
615B-15481-00-00 BOLT 1BOLT 1
-
7214-11198-01-00 GASKETGASKET
-
893210-48364-00 O-RINGO-RING
-
94H7-15189-00-00 PLUGPLUG
-
1093210-22382-00 O-RINGO-RING
-
1190110-08077-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290430-08119-00 GASKETGASKET
