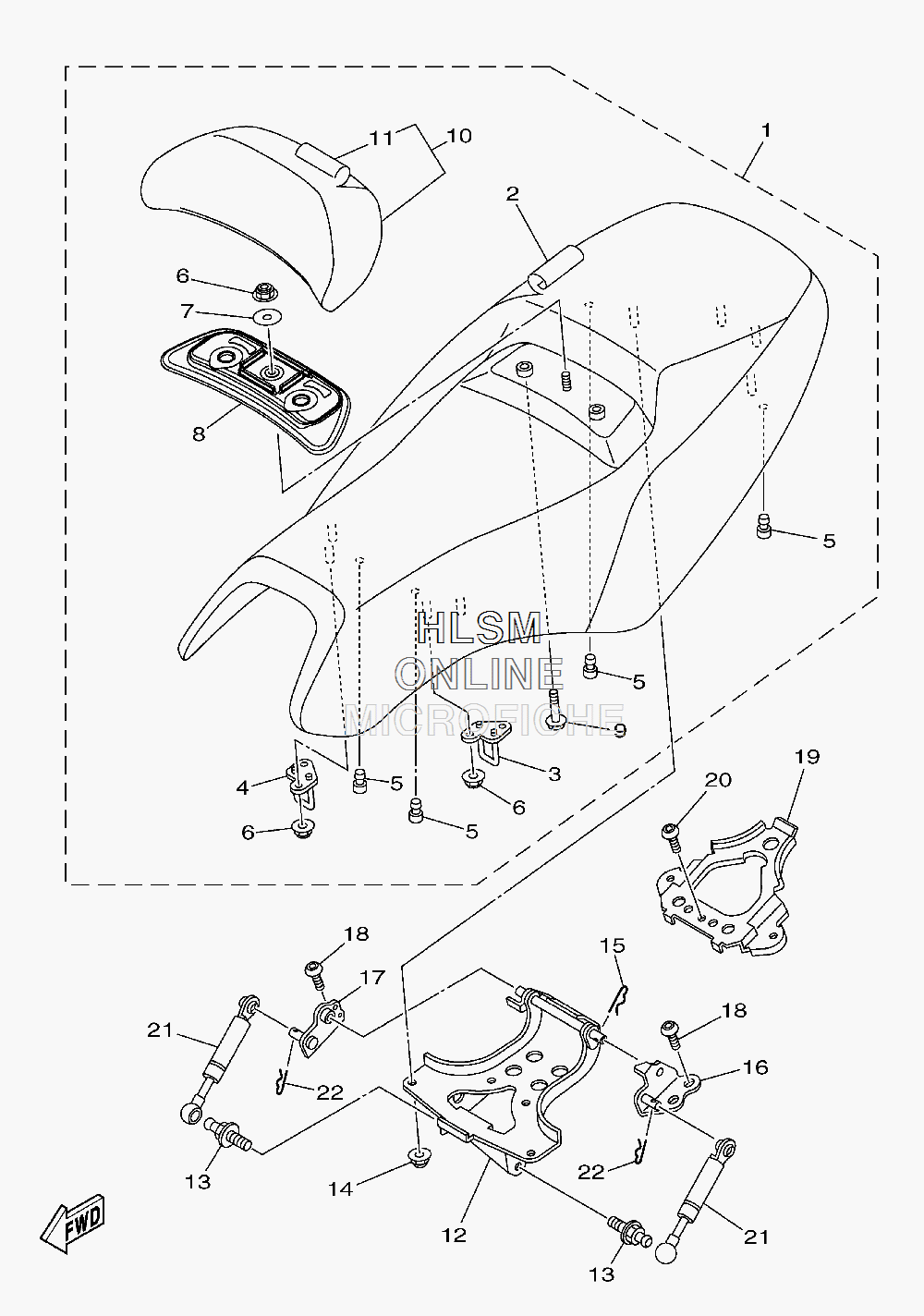

SEAT ASSY. для Yamaha TMAX - 2011 года выпуска
-
№АртикулНазвание
-
14B5-24730-51-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
24B5-24731-00-00 ...COVER, SEAT...COVER, SEAT
-
34B5-24718-20-00 ...BRACKET, SEAT...BRACKET, SEAT
-
44B5-24728-20-00 ...BRACKET, SEAT...BRACKET, SEAT
-
55SL-24723-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
695607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
790201-065G8-00 ...WASHER, PLATE...WASHER, PLATE
-
84B5-24752-00-00 ...PLATE...PLATE
-
995802-06025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
104B5-24790-01-00 ...SEAT BACK ASSY...SEAT BACK ASSY
-
114B5-24791-00-00 ......COVER, SEAT BACK......COVER, SEAT BACK
-
124B5-24726-00-00 HINGE, SEATHINGE, SEAT
-
134B5-2474E-00-00 ARMARM
-
1490176-06016-00 NUT, CAPNUT, CAP
-
1590468-18121-00 CLIPCLIP
-
164B5-24769-00-00 HINGE, SEATHINGE, SEAT
-
174B5-24779-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
1892012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
194B5-2475U-00-00 BRACKET, TAIL COVERBRACKET, TAIL COVER
-
2092012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
214B5-2478G-12-00 STOPPERSTOPPER
-
2290468-16001-00 CLIPCLIP
