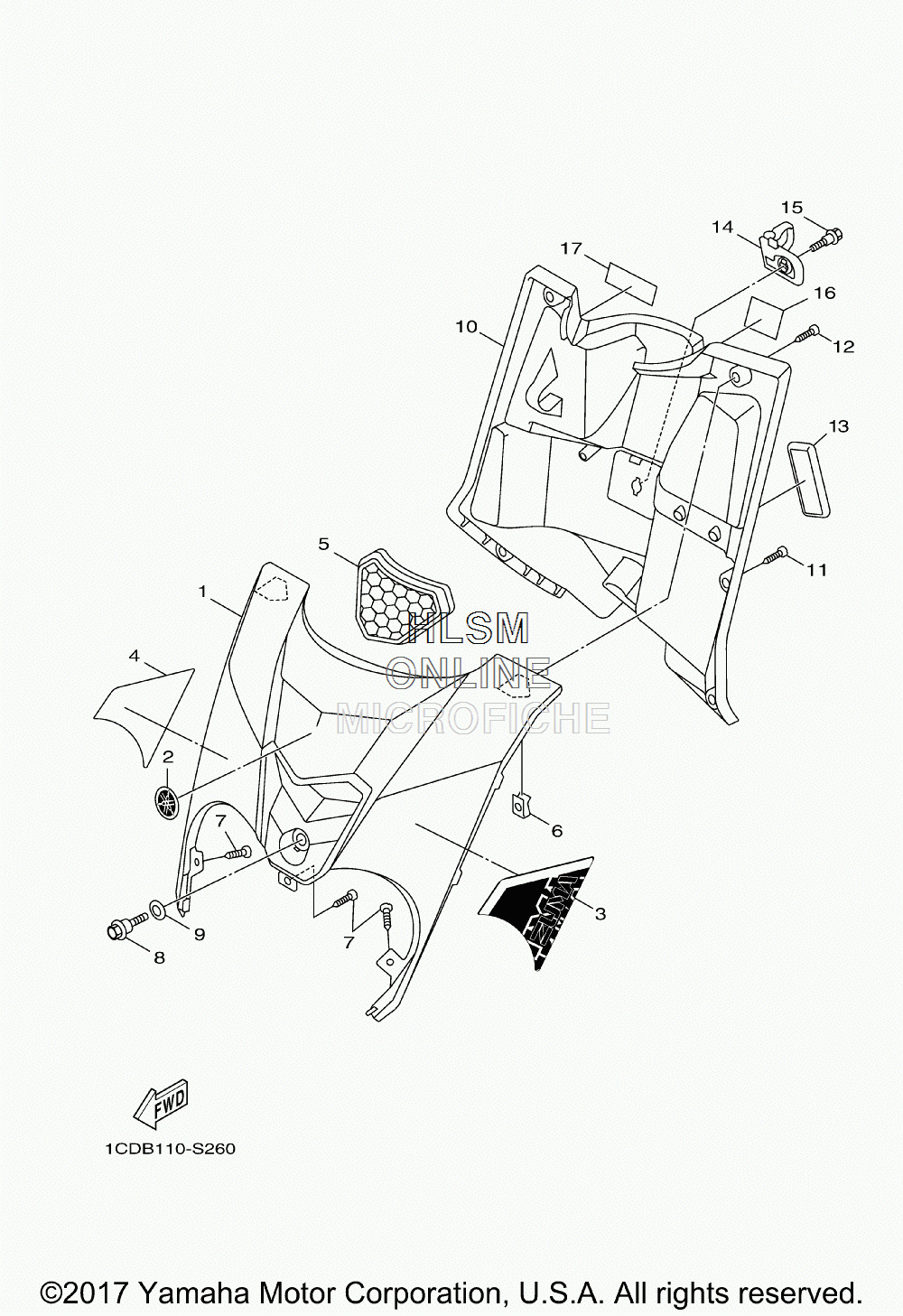

COWLING W/ LEG SHIELD для Yamaha ZUMA 50F - 2017 года выпуска
-
№АртикулНазвание
-
11CD-F8311-00-7M LEG SHIELD 1 (MDS - MIDNIGHT SILVER)LEG SHIELD 1 (MDS - MIDNIGHT SILVER)
-
11CD-F8311-00-P9 LEG SHIELD 1 (DRMD - RED METALLIC)LEG SHIELD 1 (DRMD - RED METALLIC)
-
25TY-F1569-00-00 GRAPHIC 1GRAPHIC 1
-
31CD-F8391-00-00 GRAPHIC 1 (MDS - MIDNIGHT SILVER)GRAPHIC 1 (MDS - MIDNIGHT SILVER)
-
31CD-F8391-10-00 GRAPHIC 1 (DRMD - RED METALLIC)GRAPHIC 1 (DRMD - RED METALLIC)
-
41CD-F8392-00-00 GRAPHIC 2 (MDS - MIDNIGHT SILVER)GRAPHIC 2 (MDS - MIDNIGHT SILVER)
-
41CD-F8392-10-00 GRAPHIC 2 (DRMD - RED METALLIC)GRAPHIC 2 (DRMD - RED METALLIC)
-
51CD-F834V-00-00 PROTECTOR 1PROTECTOR 1
-
690183-05816-00 NUT, SPRINGNUT, SPRING
-
797707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
890119-06887-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990387-068C3-00 COLLARCOLLAR
-
101CD-F8300-00-00 LEG SHIELD ASSYLEG SHIELD ASSY
-
1197707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1297707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
135FM-F8349-00-00 CAPCAP
-
141CF-F8379-00-00 HOOKHOOK
-
1590109-06872-00 BOLTBOLT
-
161CD-F4877-00-00 LABEL, CAUTIONLABEL, CAUTION
-
171CD-F118K-00-00 LABEL, CAUTIONLABEL, CAUTION
