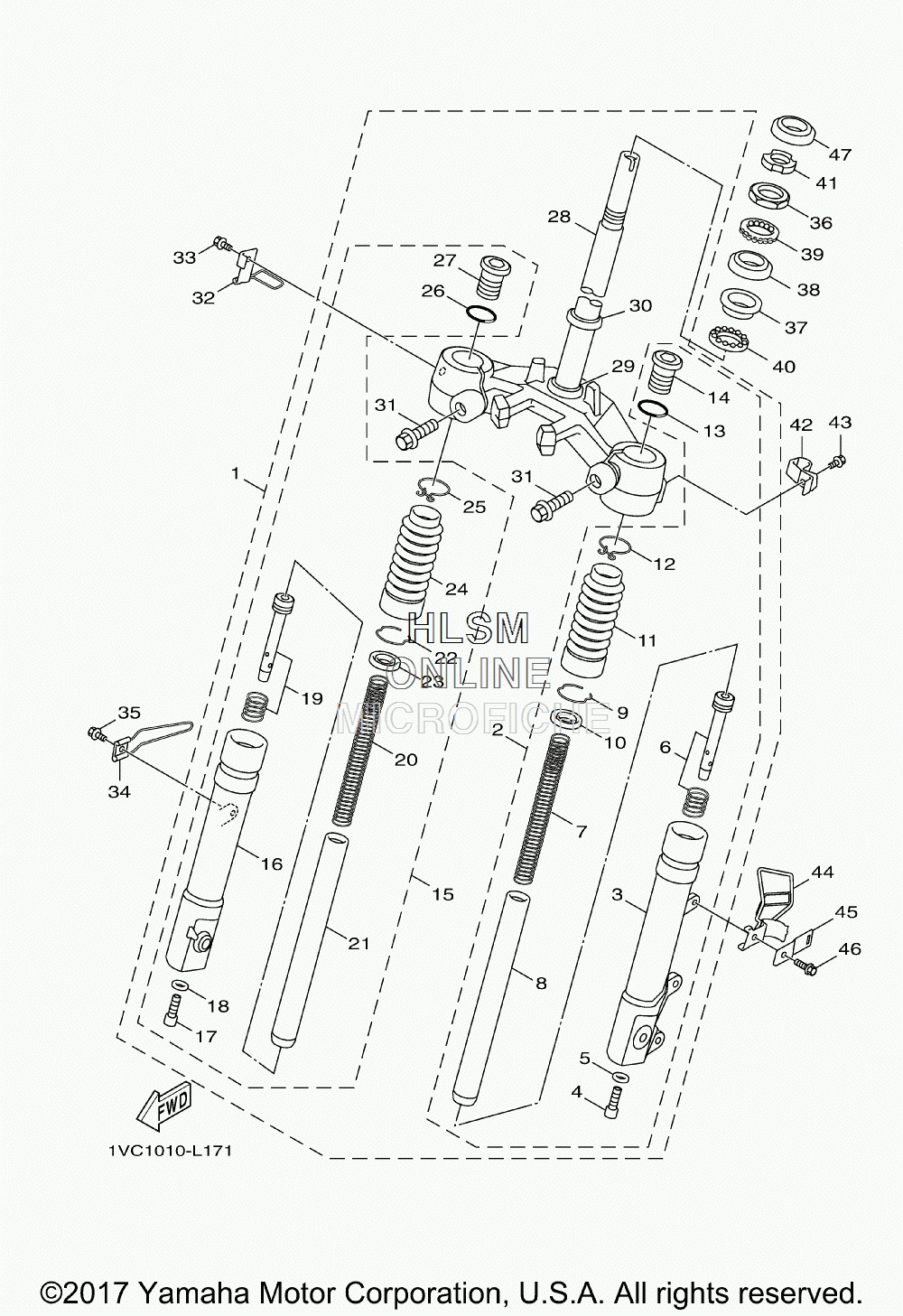

SUSPENSION - FRONT FORK для Yamaha ZUMA 50F - 2017 года выпуска
-
№АртикулНазвание
-
11CD-F3100-10-00 FRONT FORK ASSYFRONT FORK ASSY
-
21CD-F3102-10-00 ...FRONT FORK ASSY (LEFT)...FRONT FORK ASSY (LEFT)
-
31CD-F3126-10-00 ......TUBE, OUTER (LEFT)......TUBE, OUTER (LEFT)
-
41CD-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
53GF-F3158-00-00 ......GASKET......GASKET
-
615P-F3170-00-00 ......CYLINDER COMP., FRONT FOR......CYLINDER COMP., FRONT FOR
-
715P-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
83B3-F3110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
93NW-F3156-00-00 ......RING, SNAP......RING, SNAP
-
105SU-F3145-00-00 ......OIL SEAL......OIL SEAL
-
111CD-F3191-00-00 ......BOOT......BOOT
-
1213P-F3192-00-00 ......BAND......BAND
-
133GF-F3147-00-00 ......O-RING......O-RING
-
141P4-F3356-00-00 ......BOLT 2......BOLT 2
-
151CD-F3103-10-00 ...FRONT FORK ASSY (RIGHT)...FRONT FORK ASSY (RIGHT)
-
161CD-F3136-10-00 ......TUBE, OUTER 2......TUBE, OUTER 2
-
171CD-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
183GF-F3158-00-00 ......GASKET......GASKET
-
1915P-F3170-00-00 ......CYLINDER COMP., FRONT FOR......CYLINDER COMP., FRONT FOR
-
2015P-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
213B3-F3110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
223NW-F3156-00-00 ......RING, SNAP......RING, SNAP
-
235SU-F3145-00-00 ......OIL SEAL......OIL SEAL
-
241CD-F3191-00-00 ......BOOT......BOOT
-
2513P-F3192-00-00 ......BAND......BAND
-
263GF-F3147-00-00 ......O-RING......O-RING
-
271P4-F3356-00-00 ......BOLT 2......BOLT 2
-
281CD-F3340-00-00 ...UNDER BRACKET COMP....UNDER BRACKET COMP.
-
291CD-F3462-00-00 ...SEAL, DUST...SEAL, DUST
-
3022F-23414-01-00 ...RACE, BALL 4...RACE, BALL 4
-
311CD-F3346-00-00 ...BOLT 1...BOLT 1
-
323P3-F3389-00-00 GUIDE, CABLEGUIDE, CABLE
-
3395807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
341P4-F3317-00-00 HOLDER, CABLEHOLDER, CABLE
-
3595807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
363KJ-23411-01-00 RACE, BALL 1RACE, BALL 1
-
3722F-23412-01-00 RACE, BALL 2RACE, BALL 2
-
382E9-23412-00-00 RACE, BALL 2RACE, BALL 2
-
3922F-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
4093505-32042-00 BALLBALL
-
412E9-23454-00-00 NUT, FITTING 2NUT, FITTING 2
-
423P3-F5875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
4395807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
441VC-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
455HK-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
4695807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
475SU-F3415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
