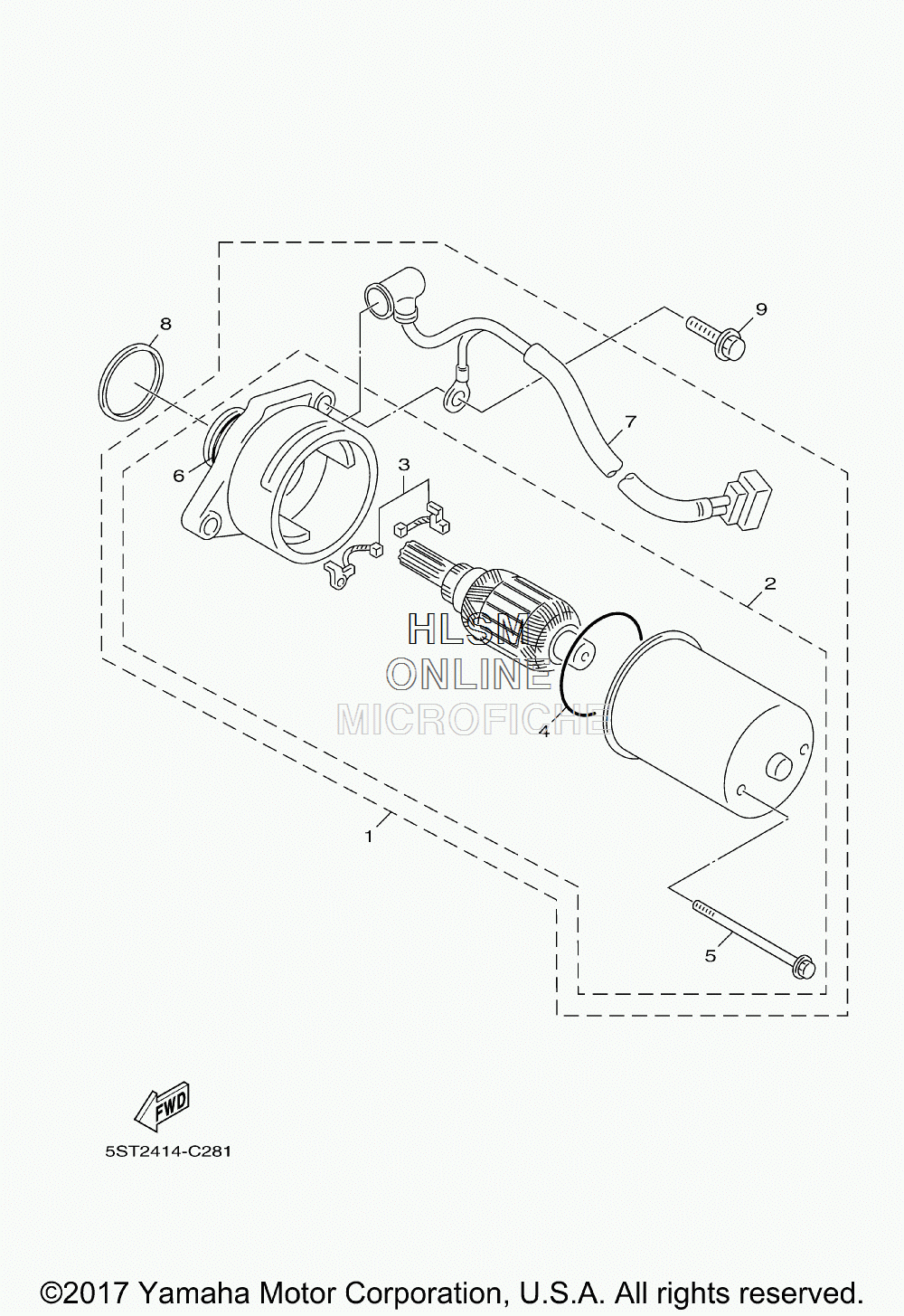

STARTING MOTOR ASSY. для Yamaha ZUMA 50F - 2017 года выпуска
-
№АртикулНазвание
-
11CD-H1800-00-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
23B3-WH180-10-00 ...ELECTRIC STARTER KIT...ELECTRIC STARTER KIT
-
34DM-H1801-00-00 ......BRUSH SET......BRUSH SET
-
493210-44678-00 ......O-RING......O-RING
-
55ST-H1828-10-00 ......SCREW 2......SCREW 2
-
693210-23614-00 ......O-RING......O-RING
-
71CD-H183G-00-00 ...CORD COMP....CORD COMP.
-
890202-26800-00 WASHER, PLATEWASHER, PLATE
-
991317-06020-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- RADIATOR W/ HOSES
- REAR ARM
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- • STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY.
- WATER PUMP ASSY.
- WHEEL - FRONT
- WHEEL - REAR
