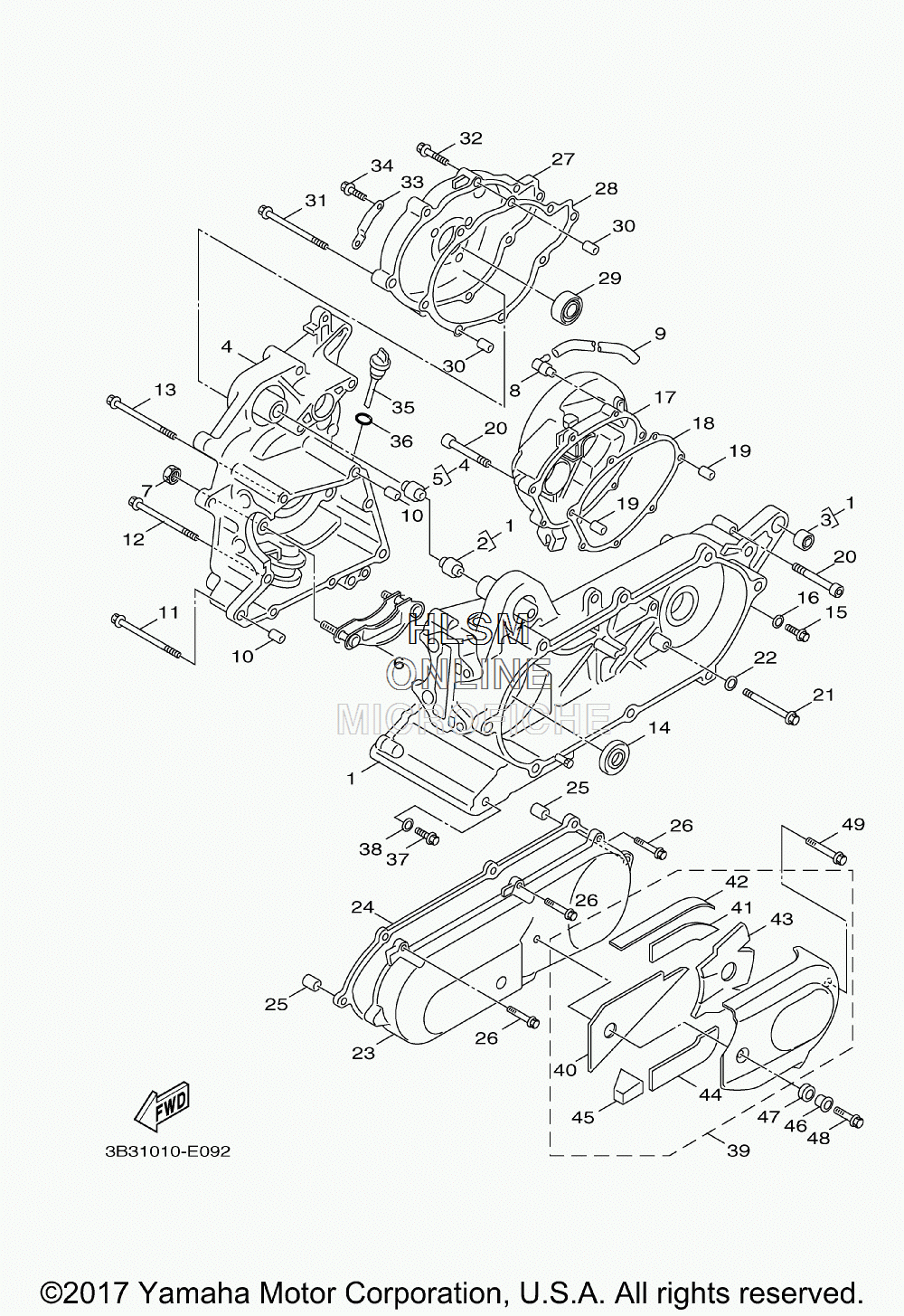

CRANKCASE ASSY. для Yamaha ZUMA 50F - 2017 года выпуска
-
№АртикулНазвание
-
13B3-WE511-01-00 CRANKCASE 1CRANKCASE 1
-
25ST-F2123-00-00 ...BUSH 1...BUSH 1
-
34X6-F2216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
45ST-WE512-10-00 CRANKCASE 2CRANKCASE 2
-
55ST-F2123-00-00 ...BUSH 1...BUSH 1
-
65ST-E5142-10-00 GUIDE 1GUIDE 1
-
795607-06100-00 NUT, UNUT, U
-
85ST-E5371-00-00 BREATHERBREATHER
-
93B3-E5373-00-00 PIPE, BREATHERPIPE, BREATHER
-
1091810-14807-00 PIN, DOWELPIN, DOWEL
-
1190105-06808-00 BOLT, FLANGEBOLT, FLANGE
-
1290105-06810-00 BOLT, FLANGEBOLT, FLANGE
-
1395027-06100-00 BOLT, FLANGEBOLT, FLANGE
-
1493102-19804-00 OIL SEALOIL SEAL
-
1595817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1690430-08119-00 GASKETGASKET
-
173B3-E5421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
183B3-E5461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1991810-14807-00 PIN, DOWELPIN, DOWEL
-
2095027-06035-00 BOLT, FLANGEBOLT, FLANGE
-
2195817-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2290430-06014-00 GASKETGASKET
-
233B3-E5411-10-33 COVER, CRANKCASE 1 (YB - YAMAHA BLACK)COVER, CRANKCASE 1 (YB - YAMAHA BLACK)
-
243B3-E5451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
2591810-14807-00 PIN, DOWELPIN, DOWEL
-
2695027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
275ST-E5417-10-00 COVER, CAPCOVER, CAP
-
285ST-E5453-10-00 GASKETGASKET
-
2993102-17807-00 OIL SEALOIL SEAL
-
3091810-14807-00 PIN, DOWELPIN, DOWEL
-
3190105-06895-00 BOLT, FLANGEBOLT, FLANGE
-
3290105-06898-00 BOLT, FLANGEBOLT, FLANGE
-
333B3-E5113-00-00 PLATEPLATE
-
3490105-06896-00 BOLT, FLANGEBOLT, FLANGE
-
353B3-E5362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
365ML-E3769-00-00 O-RINGO-RING
-
3795817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
3890430-08119-00 GASKETGASKET
-
393B3-XE543-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
403B3-E5316-00-00 ...DAMPER 1...DAMPER 1
-
413B3-E5326-00-00 ...DAMPER 2...DAMPER 2
-
423B3-E5335-00-00 ...DAMPER 3...DAMPER 3
-
433B3-E5337-00-00 ...DAMPER 4...DAMPER 4
-
443B3-E533C-00-00 ...DAMPER 7...DAMPER 7
-
453B3-E533D-00-00 ...DAMPER 8...DAMPER 8
-
4690387-06877-00 COLLARCOLLAR
-
4790480-12237-00 GROMMETGROMMET
-
4895827-06065-00 BOLT, FLANGEBOLT, FLANGE
-
4995827-06035-00 BOLT, FLANGEBOLT, FLANGE
