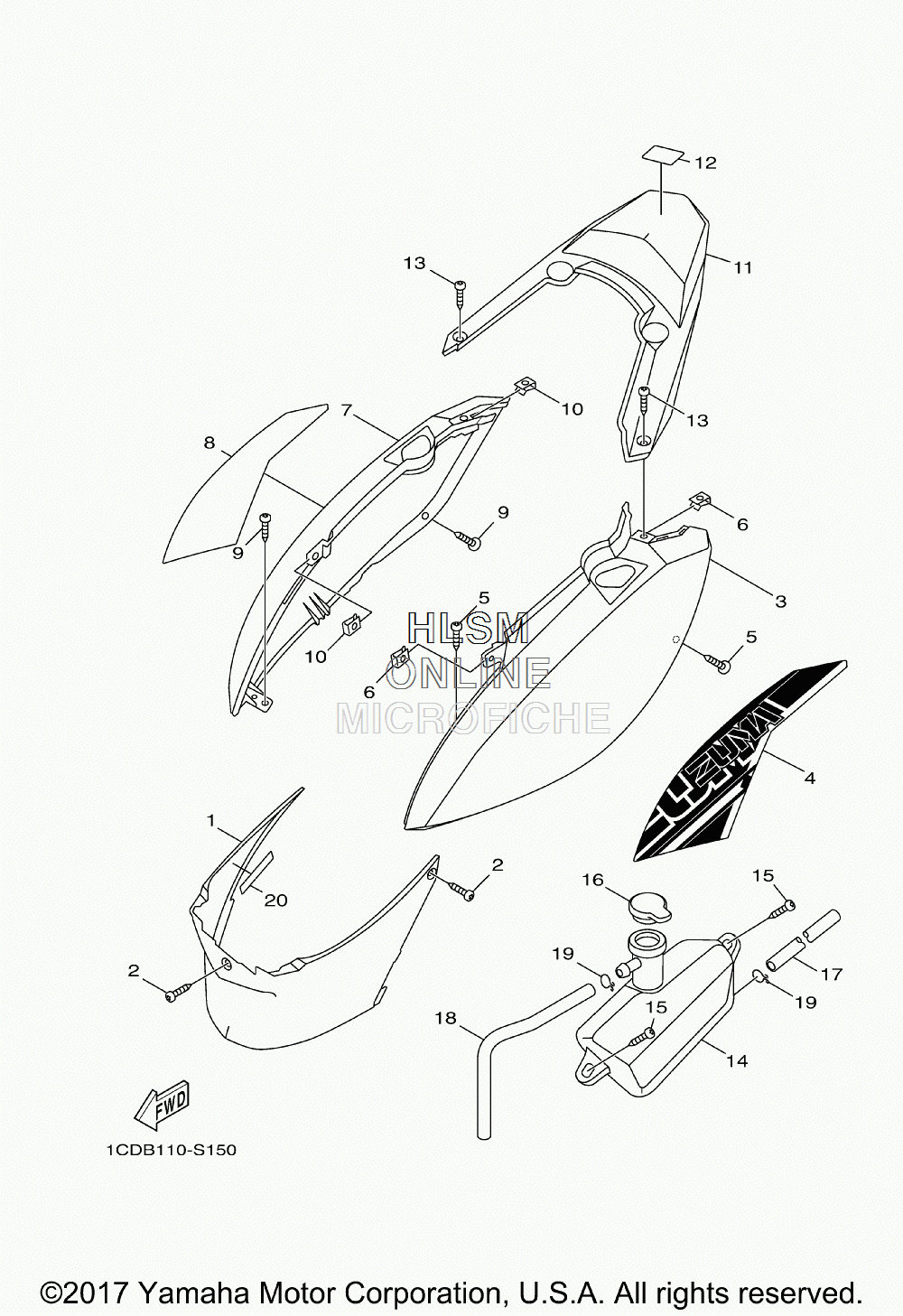

SIDE COVER для Yamaha ZUMA 50F - 2017 года выпуска
-
№АртикулНазвание
-
11CD-F1711-00-00 COVER, SIDE 1COVER, SIDE 1
-
297707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
31CD-F1721-00-7M COVER, SIDE 2 (MDS - MIDNIGHT SILVER)COVER, SIDE 2 (MDS - MIDNIGHT SILVER)
-
31CD-F1721-00-PA COVER, SIDE 2 (DRMD - RED METALLIC)COVER, SIDE 2 (DRMD - RED METALLIC)
-
41CD-F179L-00-00 GRAPHIC 9 (MDS - MIDNIGHT SILVER)GRAPHIC 9 (MDS - MIDNIGHT SILVER)
-
41CD-F179L-10-00 GRAPHIC 9 (DRMD - RED METALLIC)GRAPHIC 9 (DRMD - RED METALLIC)
-
597707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
690183-05816-00 NUT, SPRINGNUT, SPRING
-
71CD-F1731-00-7M COVER, SIDE 3 (MDS - MIDNIGHT SILVER)COVER, SIDE 3 (MDS - MIDNIGHT SILVER)
-
71CD-F1731-00-PA COVER, SIDE 3 (DRMD - RED METALLIC)COVER, SIDE 3 (DRMD - RED METALLIC)
-
81CD-F179M-00-00 GRAPHIC 10 (MDS - MIDNIGHT SILVER)GRAPHIC 10 (MDS - MIDNIGHT SILVER)
-
81CD-F179M-10-00 GRAPHIC 10 (DRMD - RED METALLIC)GRAPHIC 10 (DRMD - RED METALLIC)
-
997707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1090183-05816-00 NUT, SPRINGNUT, SPRING
-
111CD-F1741-00-7M COVER, SIDE 4 (MDS - MIDNIGHT SILVER)COVER, SIDE 4 (MDS - MIDNIGHT SILVER)
-
111CD-F1741-00-PA COVER, SIDE 4 (DRMD - RED METALLIC)COVER, SIDE 4 (DRMD - RED METALLIC)
-
121CD-F4875-00-00 LABEL 1LABEL 1
-
1397707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
143B3-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
1597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
165CA-F1815-00-00 CAPCAP
-
171CD-F1816-00-00 PIPE 1PIPE 1
-
185ST-F1877-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
1990467-090A2-00 CLIPCLIP
-
205ML-E5337-00-00 DAMPER 4DAMPER 4
