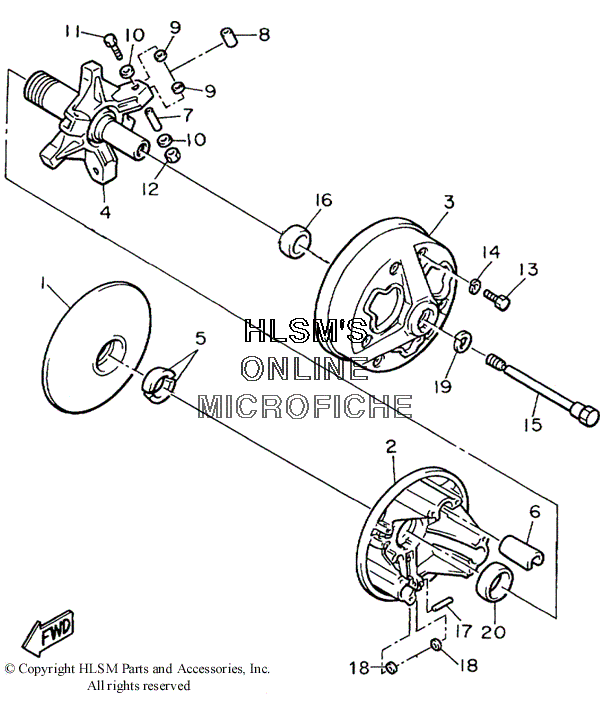

CLUTCH REPAIR KIT для Yamaha BRAVO 250 - 2000 года выпуска
-
№АртикулНазвание
-
189X-17601-09-00 CLUTCH REPAIR KIT (AP)CLUTCH REPAIR KIT (AP)
-
284J-17611-00-00 ...SHEAVE, PRIM. FIXED...SHEAVE, PRIM. FIXED
-
38V0-17621-01-00 ...SHEAVE, PRI. SLIDING...SHEAVE, PRI. SLIDING
-
48V0-17631-00-00 ...CAP...CAP
-
58V0-17640-02-00 ...SPIDER COMPLETE...SPIDER COMPLETE
-
68V0-17639-00-00 ...STOPPER...STOPPER
-
788X-17653-00-00 ...SLIDER...SLIDER
-
890387-057W5-00 ...COLLAR...COLLAR
-
990202-08205-00 ...WASHER, PLATE...WASHER, PLATE
-
1090201-050P9-00 ...WASHER, PLATE...WASHER, PLATE
-
1197027-05035-00 ...BOLT...BOLT
-
1295617-05100-00 ...NUT, U...NUT, U
-
1397017-06030-00 ...BOLT...BOLT
-
1492907-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
158V0-17647-00-00 ...BOLT...BOLT
-
1690389-28032-00 ...BUSH (90389-28026-00)...BUSH (90389-28026-00)
-
1793607-44190-00 ...PIN, DOWEL...PIN, DOWEL
-
1890201-077F5-00 ...WASHER, PLATE...WASHER, PLATE
-
1992907-16100-00 ...WASHER...WASHER
-
2090389-40029-00 ...BUSH...BUSH
