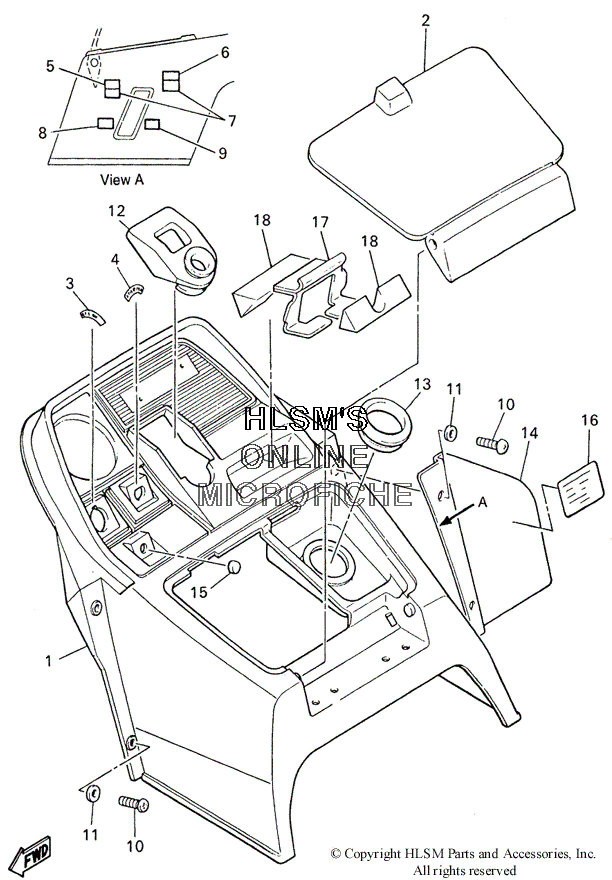

CONSOLE ASSY для Yamaha BRAVO 250 - 2000 года выпуска
-
№АртикулНазвание
-
28R4-77712-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
28Y1-77711-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
38K2-77741-00-00 INDICATOR 1INDICATOR 1
-
48K4-77742-00-00 INDICATOR 2INDICATOR 2
-
587A-77742-00-00 INDICATOR 2INDICATOR 2
-
687A-77743-00-00 INDICATOR 3INDICATOR 3
-
787A-77741-00-00 INDICATOR 1INDICATOR 1
-
887A-77745-00-00 INDICATOR 5INDICATOR 5
-
987A-77744-00-00 INDICATOR 4INDICATOR 4
-
1098507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1190201-05029-00 WASHER, PLATEWASHER, PLATE
-
128R4-77740-00-00 GROMMET, INSTRUMENT PANELGROMMET, INSTRUMENT PANEL
-
1390480-53313-00 GROMMETGROMMET
-
148U0-77721-00-00 BRACKET 1BRACKET 1
-
1590480-12012-00 GROMMETGROMMET
-
168Y1-77762-70-00 LABEL, WARNING 2LABEL, WARNING 2
-
1780F-23881-00-00 BRACKET 1BRACKET 1
-
1880F-23858-00-00 SPACERSPACER
