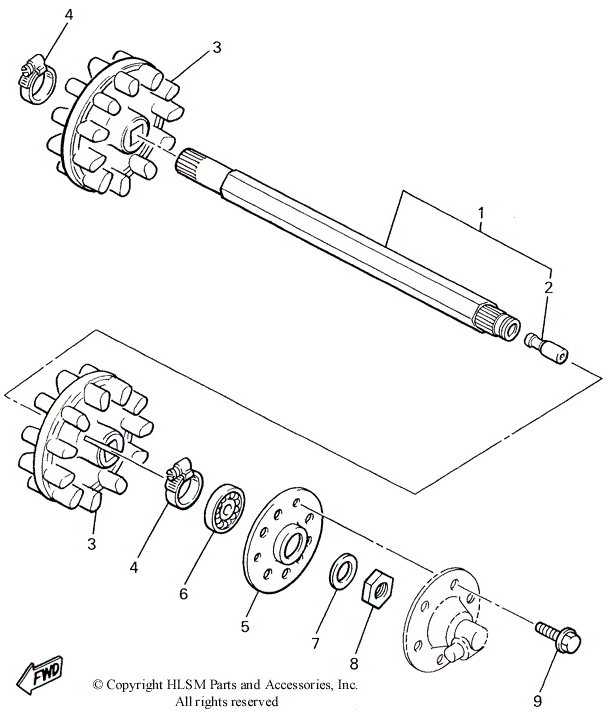

DRIVE TRAIN ASSEMBLY для Yamaha BRAVO 250 - 2000 года выпуска
-
№АртикулНазвание
-
185A-W4751-00-00 AXLE, FRONTAXLE, FRONT
-
28K4-47577-00-00 ...CONNECTOR...CONNECTOR
-
38E3-47531-00-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
490460-50079-00 CLAMP, HOSECLAMP, HOSE
-
58F3-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
693306-00416-00 BEARING (B6004RS)BEARING (B6004RS)
-
790208-20008-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
890170-20211-00 NUTNUT
-
995827-08014-00 BOLT, FLANGEBOLT, FLANGE
