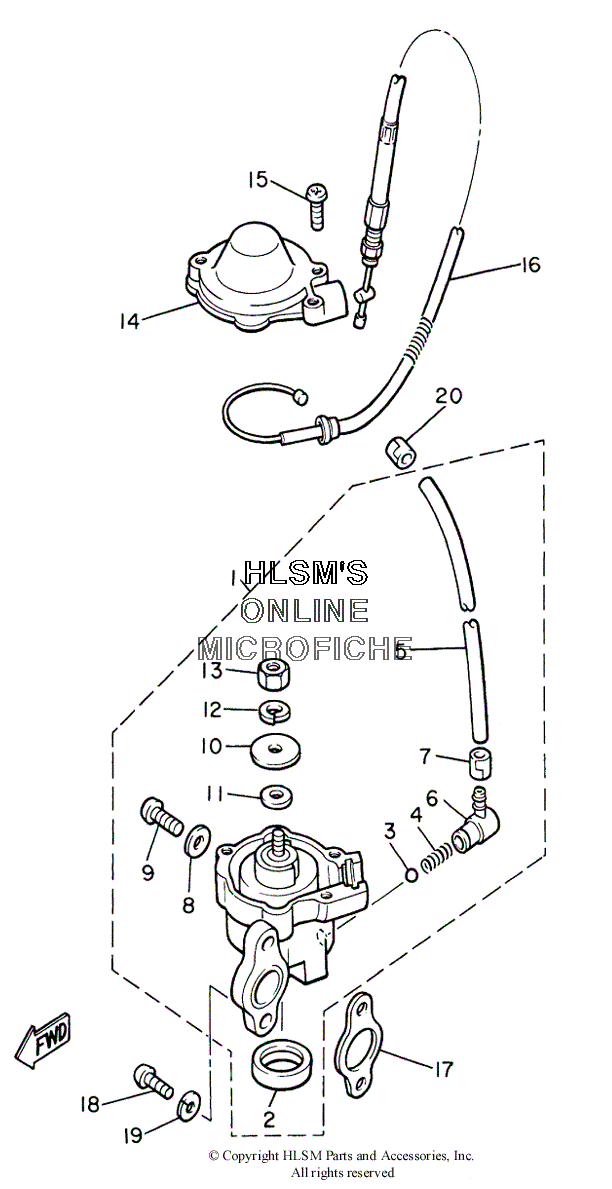

OIL PUMP ASSY для Yamaha BRAVO 250 - 2000 года выпуска
-
№АртикулНазвание
-
181E-13101-01-00 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
290338-21075-00 ...PLUG...PLUG
-
393505-32002-00 ...BALL...BALL
-
490501-02217-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
590446-08201-00 ...HOSE...HOSE
-
6353-13552-01-00 ...NOZZLE...NOZZLE
-
790468-02025-00 ...CLIP...CLIP
-
890430-04004-00 ...GASKET...GASKET
-
998907-04008-00 ...SCREW, BIND...SCREW, BIND
-
10137-13138-01-00 ...PLATE, ADJUSTING...PLATE, ADJUSTING
-
11137-13137-00-03 ...SHIM, PLUNGER (0.3T) (UR UN)...SHIM, PLUNGER (0.3T) (UR UN)
-
11137-13137-00-05 ...SHIM, PLUNGER (0.5T) (UR UN)...SHIM, PLUNGER (0.5T) (UR UN)
-
11137-13137-00-10 ...SHIM, PLUNGER (1.0T) (UR UN)...SHIM, PLUNGER (1.0T) (UR UN)
-
1292907-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
1395307-05600-00 ...NUT...NUT
-
148A5-13146-01-00 COVER, AJST PULLEYCOVER, AJST PULLEY
-
1598507-04018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1681E-26320-00-00 PUMP CABLE ASSEMBLYPUMP CABLE ASSEMBLY
-
178Y0-13116-01-00 GASKET, PUMP CASEGASKET, PUMP CASE
-
1898507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992907-05100-00 WASHER, SPRINGWASHER, SPRING
-
2090468-02025-00 CLIPCLIP
