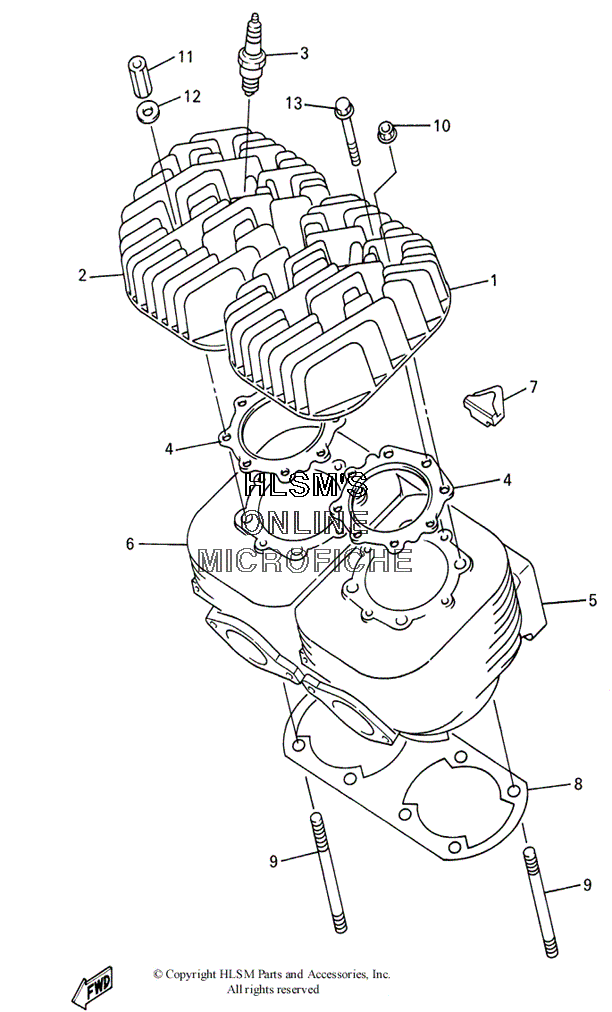

CYLINDER W/ HEAD ASSY для Yamaha VENTURE 500 XL - 2000 года выпуска
-
№АртикулНазвание
-
18DJ-11111-00-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
28DJ-11121-00-00 HEAD, CYLINDER 2HEAD, CYLINDER 2
-
3NGK-BR9ES-01-PC PLUG, SPARK (94702-00188)PLUG, SPARK (94702-00188)
-
48DJ-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
58DJ-11311-00-00 CYLINDER 1CYLINDER 1
-
68DJ-11321-00-00 CYLINDER 2CYLINDER 2
-
78V0-11355-00-00 SEAL, CYLINDER 1SEAL, CYLINDER 1
-
888F-11351-01-00 GASKET, CYLINDERGASKET, CYLINDER
-
995617-08740-00 BOLT, STUDBOLT, STUD
-
1095707-08500-00 NUT, FLANGENUT, FLANGE
-
1190179-08269-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1290201-08100-00 WASHER, PLATEWASHER, PLATE
-
1395817-06035-00 BOLT, FLANGEBOLT, FLANGE
