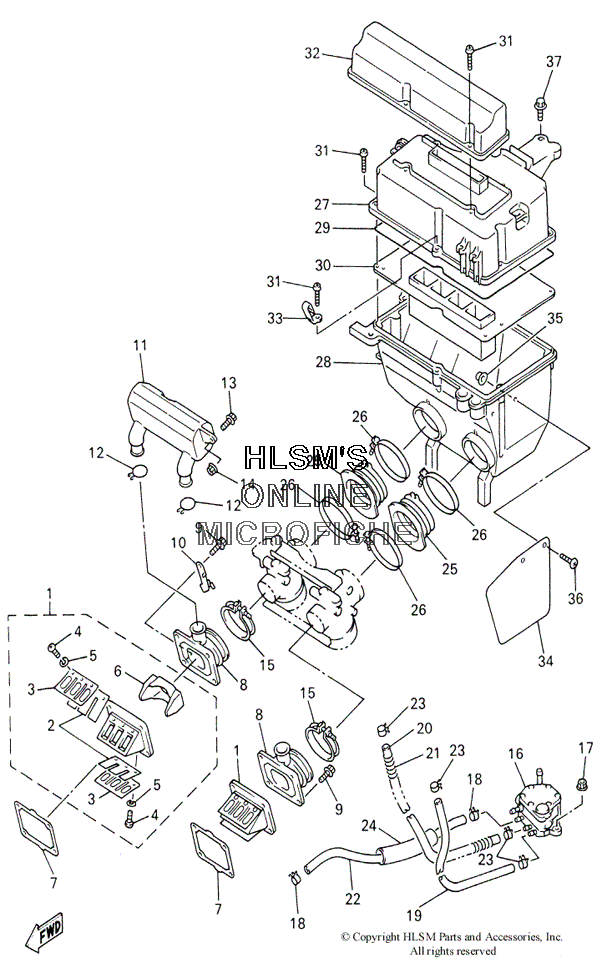

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha VENTURE 500 XL - 2000 года выпуска
-
№АртикулНазвание
-
18DJ-13610-00-00 REED VALVE ASSEMBLYREED VALVE ASSEMBLY
-
23SP-13613-00-00 ...REED, VALVE...REED, VALVE
-
38DJ-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592907-03100-00 ...WASHER...WASHER
-
64DA-13625-00-00 ...SPACER, REED VALVE...SPACER, REED VALVE
-
780L-13621-01-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
88DJ-13555-00-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
995817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1090462-10243-00 CLAMPCLAMP
-
118DJ-13581-00-00 CHAMBER, AIRCHAMBER, AIR
-
1290467-24096-00 CLIPCLIP
-
1390119-05001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1495707-05300-00 NUT, FLANGENUT, FLANGE
-
1586M-13575-00-00 CLAMP, HOSE (90460-56257)CLAMP, HOSE (90460-56257)
-
168CR-24410-01-00 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
1795707-06500-00 NUT, FLANGENUT, FLANGE
-
1890467-11032-00 CLIPCLIP
-
1990445-095K1-00 HOSEHOSE
-
2090445-096K0-00 HOSEHOSE
-
2190501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2290445-116K1-00 HOSEHOSE
-
2390467-09026-00 CLIPCLIP
-
2490445-226J7-00 HOSEHOSE
-
258DJ-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
2690460-68230-00 CLAMP, HOSECLAMP, HOSE
-
278DJ-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
288DJ-14441-00-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
298CR-14452-00-00 SEALSEAL
-
308DJ-14477-00-00 PLATEPLATE
-
3190167-05043-00 SCREW, TAPPINGSCREW, TAPPING
-
328DJ-14437-00-00 DUCTDUCT
-
3390465-08368-00 CLAMPCLAMP
-
348DJ-12682-00-00 PROTECTOR, HEATPROTECTOR, HEAT
-
3590179-05271-00 NUTNUT
-
3690154-05052-00 SCREW, BINDINGSCREW, BINDING
-
3790119-06182-00 BOLT, WITH WASHERBOLT, WITH WASHER
