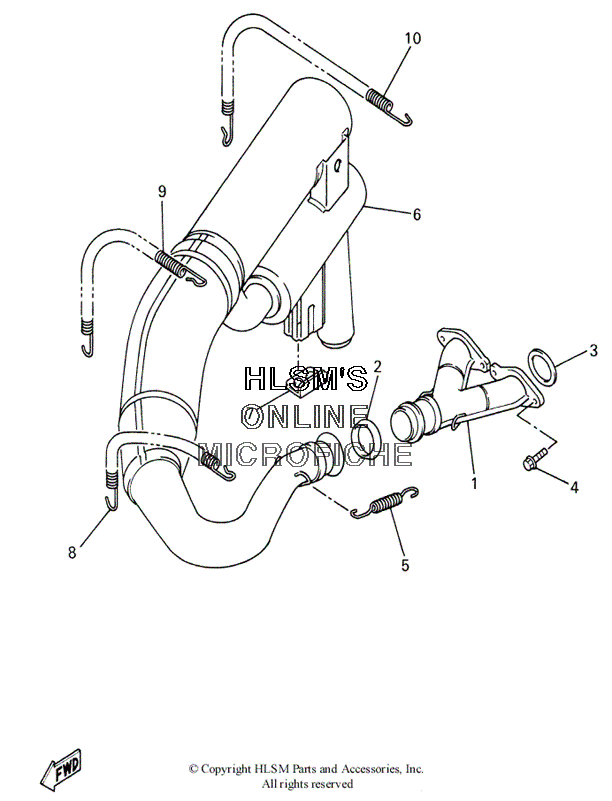

EXHAUST SYSTEM для Yamaha VENTURE 500 XL - 2000 года выпуска
-
№АртикулНазвание
-
18DJ-14610-00-00 EXHAUST PIPE ASSEMBLY 1EXHAUST PIPE ASSEMBLY 1
-
28AB-14714-01-00 GASKET, MUFFLERGASKET, MUFFLER
-
38DJ-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
495817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
590506-20272-00 SPRING, TENSIONSPRING, TENSION
-
68DJ-14710-00-00 MUFFLER ASSEMBLY 1MUFFLER ASSEMBLY 1
-
783R-14728-01-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
890506-16518-00 SPRING, TENSIONSPRING, TENSION
-
990506-16497-00 SPRING, TENSIONSPRING, TENSION
-
1090506-18519-00 SPRING, TENSIONSPRING, TENSION
