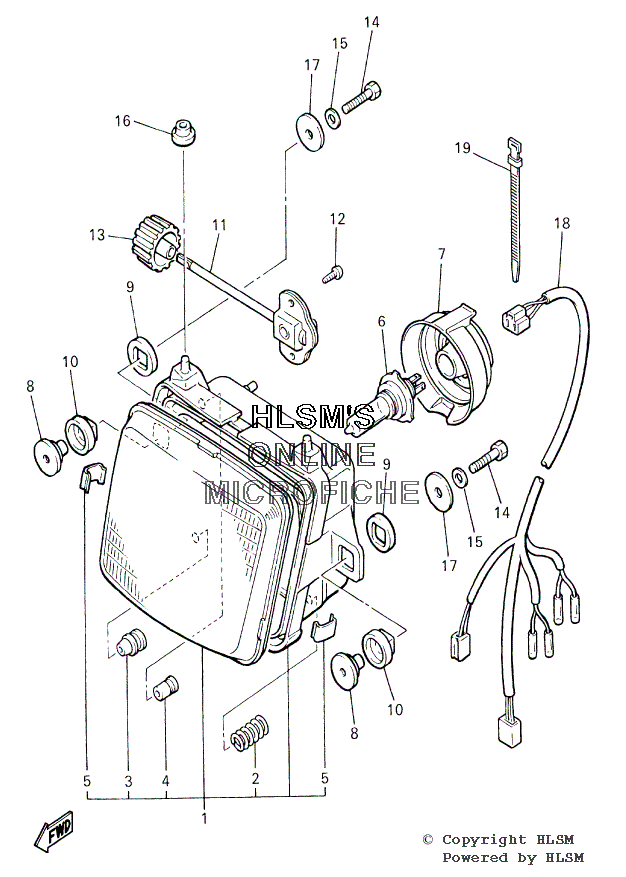

ELECTRICAL - HEADLIGHT ASSY для Yamaha VIKING 540 - 2001 года выпуска
-
№АртикулНазвание
-
184R-8430A-A0-00 HEAD LIGHT UNIT ASSYHEAD LIGHT UNIT ASSY
-
251L-84332-00-00 ...SPRING, SCREW...SPRING, SCREW
-
351L-8431U-00-00 ...HOLDER...HOLDER
-
451L-84334-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
536Y-84324-00-00 ...SPRING, REFLECTOR...SPRING, REFLECTOR
-
62F9-84314-00-00 BULB (12V-60/55W) (H4) HALOGENBULB (12V-60/55W) (H4) HALOGEN
-
736Y-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
8498-84145-60-00 COLLAR, BODY FITTINGCOLLAR, BODY FITTING
-
9498-84164-60-00 DAMPERDAMPER
-
10498-84163-60-00 DAMPERDAMPER
-
1183R-8430M-00-00 GEAR UNIT ASSYGEAR UNIT ASSY
-
1297707-40616-00 SCREW, TAPPINGSCREW, TAPPING
-
1326H-8432M-00-00 KNOB ASSYKNOB ASSY
-
1497007-08040-00 BOLTBOLT
-
1592907-08600-00 WASHER, PLATEWASHER, PLATE
-
1636Y-84354-00-00 GROMMETGROMMET
-
1790201-08766-00 WASHER, PLATEWASHER, PLATE
-
188AT-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
19437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
