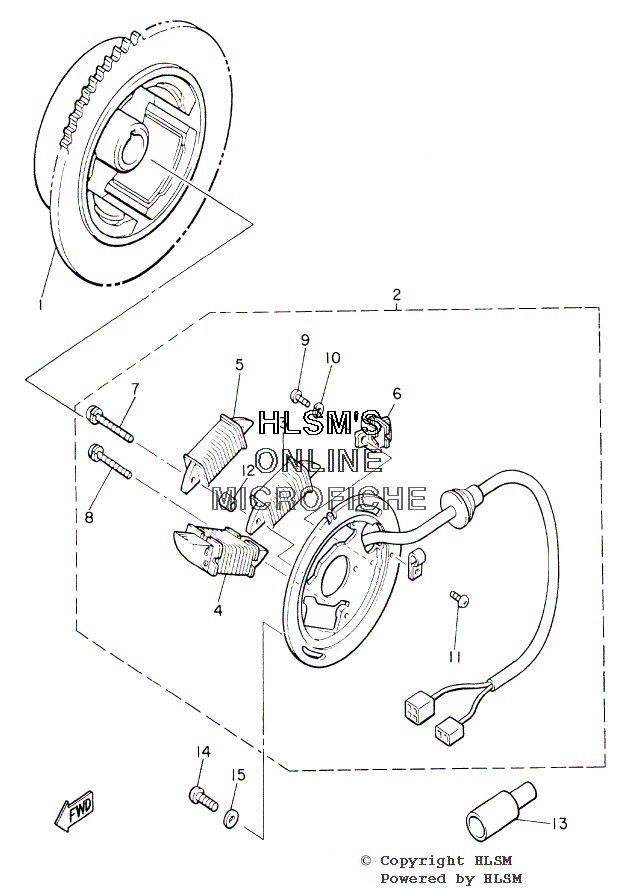

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha VIKING 540 - 2001 года выпуска
-
№АртикулНазвание
-
18AT-85550-00-00 ROTOR ASSYROTOR ASSY
-
28AT-85560-00-00 BASE ASSYBASE ASSY
-
381L-85520-M0-00 ...COIL, CHARGE...COIL, CHARGE
-
481L-81313-M0-00 ...COIL, LIGHTING 1...COIL, LIGHTING 1
-
581L-81314-M0-00 ...COIL, LIGHTING 2...COIL, LIGHTING 2
-
68R4-85580-M0-00 ...COIL, PULSER...COIL, PULSER
-
790159-05130-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
890159-05129-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
998502-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1092902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1198502-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1290387-06299-00 ...COLLAR...COLLAR
-
138Y0-82599-00-00 COVER, CONNECTERCOVER, CONNECTER
-
1498907-06016-00 SCREW, BINDSCREW, BIND
-
1590201-06043-00 WASHER, PLATEWASHER, PLATE
