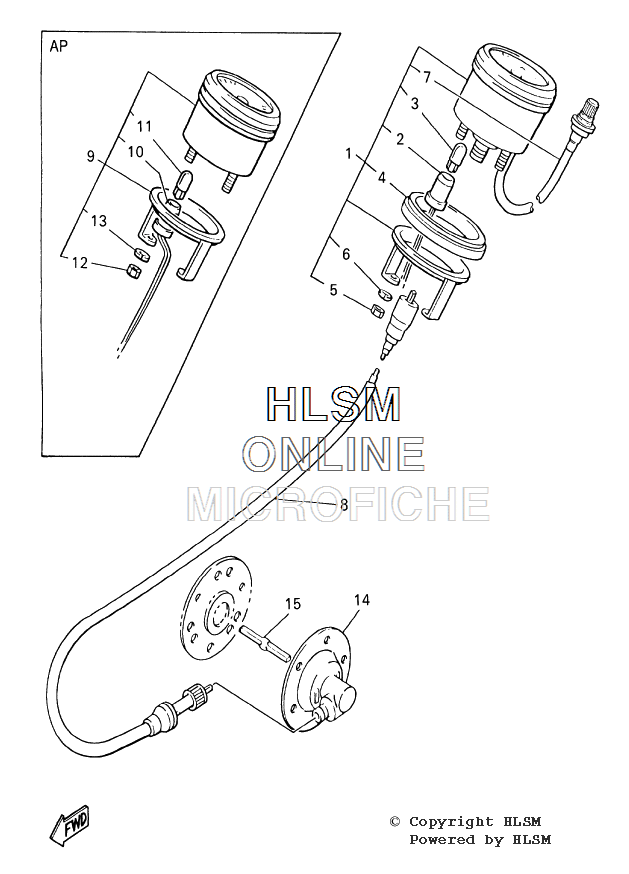

SPEEDOMETER KIT для Yamaha VIKING 540 - 2001 года выпуска
-
№АртикулНазвание
-
187R-83510-40-00 SPEEDOMETER ASSY (MILE/H)SPEEDOMETER ASSY (MILE/H)
-
28V7-83536-40-00 ...SOCKET, METER...SOCKET, METER
-
34R0-83517-00-00 ...BULB (12V-3.4W T10)...BULB (12V-3.4W T10)
-
48G6-83523-00-00 ...DAMPER...DAMPER
-
595302-05600-00 ...NUT...NUT
-
692902-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
78K1-83603-00-00 ...TRIP METER CABLE ASSY...TRIP METER CABLE ASSY
-
88H4-83560-00-00 METER CABLE ASSYMETER CABLE ASSY
-
985L-83540-00-00 TACHOMETER ASSY (OPT)TACHOMETER ASSY (OPT)
-
1085L-83509-00-00 ...SOCKET CORD ASSY (OPT)...SOCKET CORD ASSY (OPT)
-
114R0-83517-00-00 ...BULB (12V-3.4W T10) (OPT)...BULB (12V-3.4W T10) (OPT)
-
1295380-05600-00 ...NUT (OPT)...NUT (OPT)
-
1392990-05100-00 ...WASHER, SPRING (OPT)...WASHER, SPRING (OPT)
-
1483R-47700-00-00 METER GEAR HOUSING COMP.METER GEAR HOUSING COMP.
-
158K4-47715-00-00 JOINTJOINT
