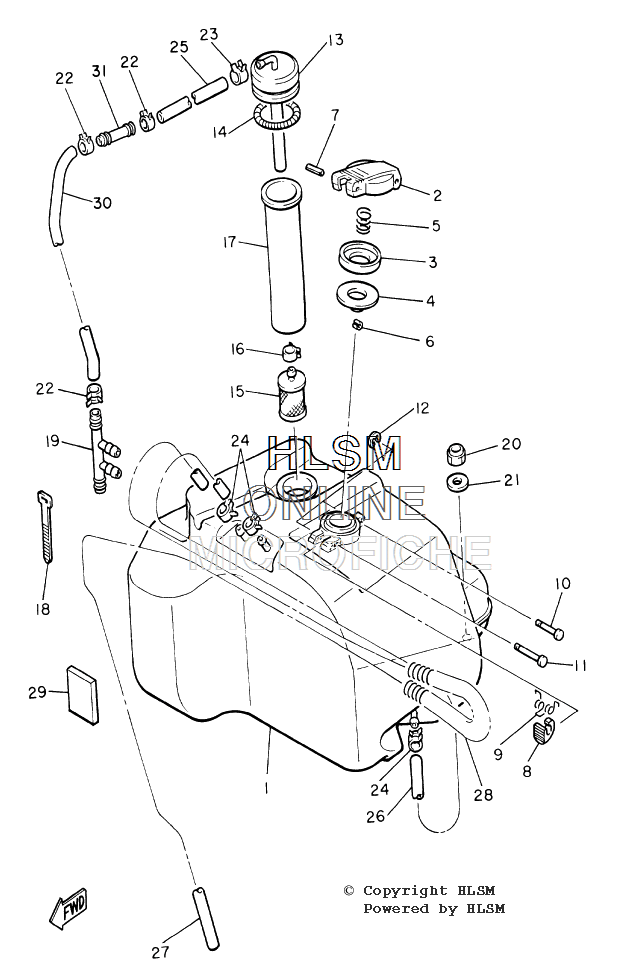

FUEL TANK ASSY для Yamaha VIKING 540 - 2001 года выпуска
-
№АртикулНазвание
-
183R-24111-00-00 TANK, FUELTANK, FUEL
-
28W6-24611-00-00 BODY, CAPBODY, CAP
-
3813-24613-01-00 DISC, CAPDISC, CAP
-
48F7-24641-00-00 GASKET, CAP 1GASKET, CAP 1
-
590501-20130-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
691609-30016-00 PIN, SPRINGPIN, SPRING
-
791609-25050-00 PIN, SPRINGPIN, SPRING
-
883M-24628-00-00 HOOKHOOK
-
990508-10715-00 SPRING, TORSIONSPRING, TORSION
-
1090249-03175-00 PINPIN
-
1190249-03017-00 PINPIN
-
1293430-02001-00 CIRCLIPCIRCLIP
-
1383R-24335-00-00 PIPE, SUCTION 1PIPE, SUCTION 1
-
1490506-06065-00 SPRING, TENSIONSPRING, TENSION
-
158H5-24560-00-00 FILTER ASSYFILTER ASSY
-
1690467-11032-00 CLIPCLIP
-
17813-24336-00-00 PIPE, SUCTION 2PIPE, SUCTION 2
-
18341-26397-01-00 BANDBAND
-
1982M-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
2095707-08300-00 NUT, FLANGENUT, FLANGE
-
2190201-08784-00 WASHER, PLATEWASHER, PLATE
-
2290467-11009-00 CLIPCLIP
-
2390467-11032-00 CLIPCLIP
-
2490467-09026-00 CLIPCLIP
-
2590445-115K6-00 HOSE (L390)HOSE (L390)
-
2691A20-05065-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
2791A20-05145-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
2881E-24328-00-00 PROTECTOR, PIPEPROTECTOR, PIPE
-
298V0-23858-00-00 SPACERSPACER
-
3090445-114J9-00 HOSE (L265)HOSE (L265)
-
31878-24379-00-00 PIPE, JOINT 4PIPE, JOINT 4
