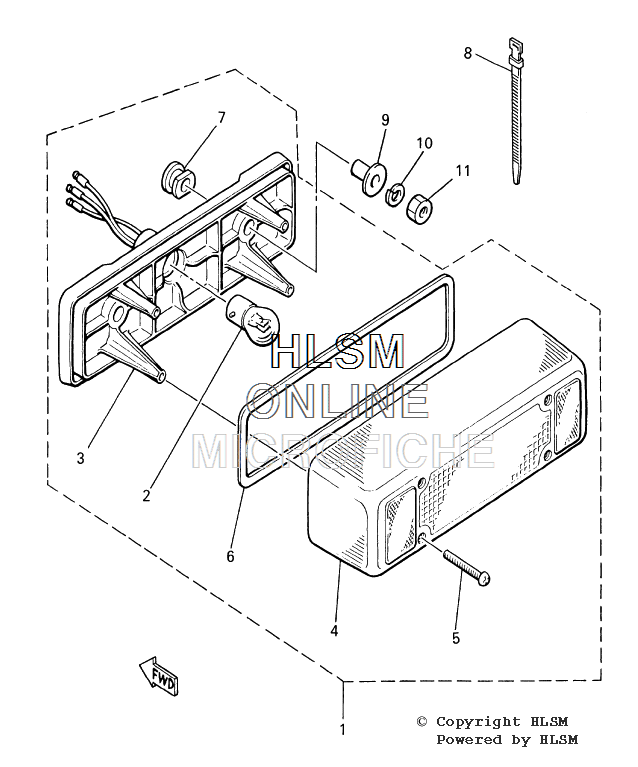

ELECTRICAL - TAILLIGHT ASSY для Yamaha VIKING 540 - 2001 года выпуска
-
№АртикулНазвание
-
18K4-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
2838-84714-01-00 ...BULB (12V-23/8W)...BULB (12V-23/8W)
-
38K4-84711-00-00 ...BASE, TAILLIGHT...BASE, TAILLIGHT
-
48K4-84721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
597701-40130-00 ...SCREW, PANHEAD TAPPING...SCREW, PANHEAD TAPPING
-
687M-84723-00-00 ...GASKET, TAIL LENS...GASKET, TAIL LENS
-
78K4-84718-00-00 ...GROMMET...GROMMET
-
890465-10098-00 CLAMPCLAMP
-
990387-066N1-00 COLLARCOLLAR
-
1092907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1195307-06600-00 NUTNUT
