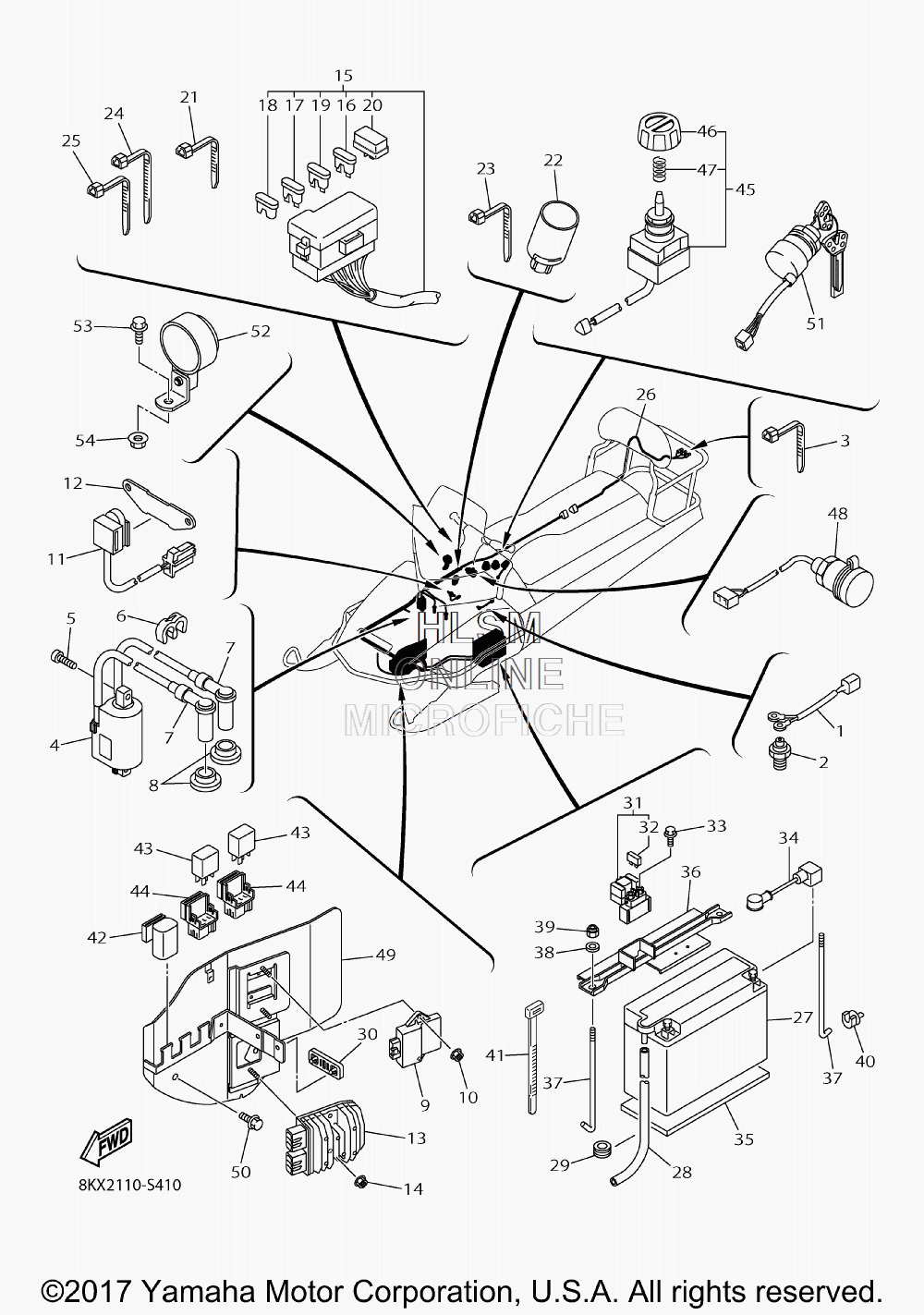

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha VK 540 - 2018 года выпуска
-
№АртикулНазвание
-
187L-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
24KD-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
390464-13077-00 CLAMPCLAMP
-
48KX-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
591312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690464-60067-00 CLAMPCLAMP
-
78K1-82370-20-00 PLUG CAP ASSY (WITH RESISTOR)PLUG CAP ASSY (WITH RESISTOR)
-
88G5-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
98KX-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
1095702-06500-00 NUT, FLANGENUT, FLANGE
-
115FU-82560-50-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
128JD-83773-00-00 BRACKET, SWITCHBRACKET, SWITCH
-
1327D-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1495702-06500-00 NUT, FLANGENUT, FLANGE
-
158KX-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
165JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
175JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
185JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
195JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
204WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
2190464-13077-00 CLAMPCLAMP
-
228GL-8252U-00-00 COVERCOVER
-
2390464-13073-00 CLAMPCLAMP
-
2490464-15195-00 CLAMPCLAMP
-
2590464-13073-00 CLAMPCLAMP
-
268KX-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
275E3-82110-81-00 BATTERY ASSY (YUASA YB16AL-A2)BATTERY ASSY (YUASA YB16AL-A2)
-
288AC-8235W-00-00 PIPEPIPE
-
2990480-12314-00 GROMMETGROMMET
-
308FA-83614-00-00 BRACKETBRACKET
-
313D7-81940-00-00 STARTER RELAY ASSY (RC19-076A)STARTER RELAY ASSY (RC19-076A)
-
321AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3395022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
348KX-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
3584N-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
368KX-82136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
378Y7-82133-00-00 SCREW, FITTINGSCREW, FITTING
-
3892902-06600-00 WASHER, PLATEWASHER, PLATE
-
3995702-06300-00 NUT, NYLONNUT, NYLON
-
408AC-82355-00-00 GROMMETGROMMET
-
41437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
425DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
438HG-81951-10-00 RELAY ASSY (8HG-10)RELAY ASSY (8HG-10)
-
448HG-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
451XD-87280-00-00 SWITCH, SELECTSWITCH, SELECT
-
461XD-87285-00-00 ...KNOB, SELECT SWITCH...KNOB, SELECT SWITCH
-
471XD-87288-00-00 ...SPRING...SPRING
-
488FP-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
498KX-85991-01-00 BRACKET, UNITBRACKET, UNIT
-
5095812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
518HV-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
528KX-83383-00-00 BUZZERBUZZER
-
5395822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
5495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
