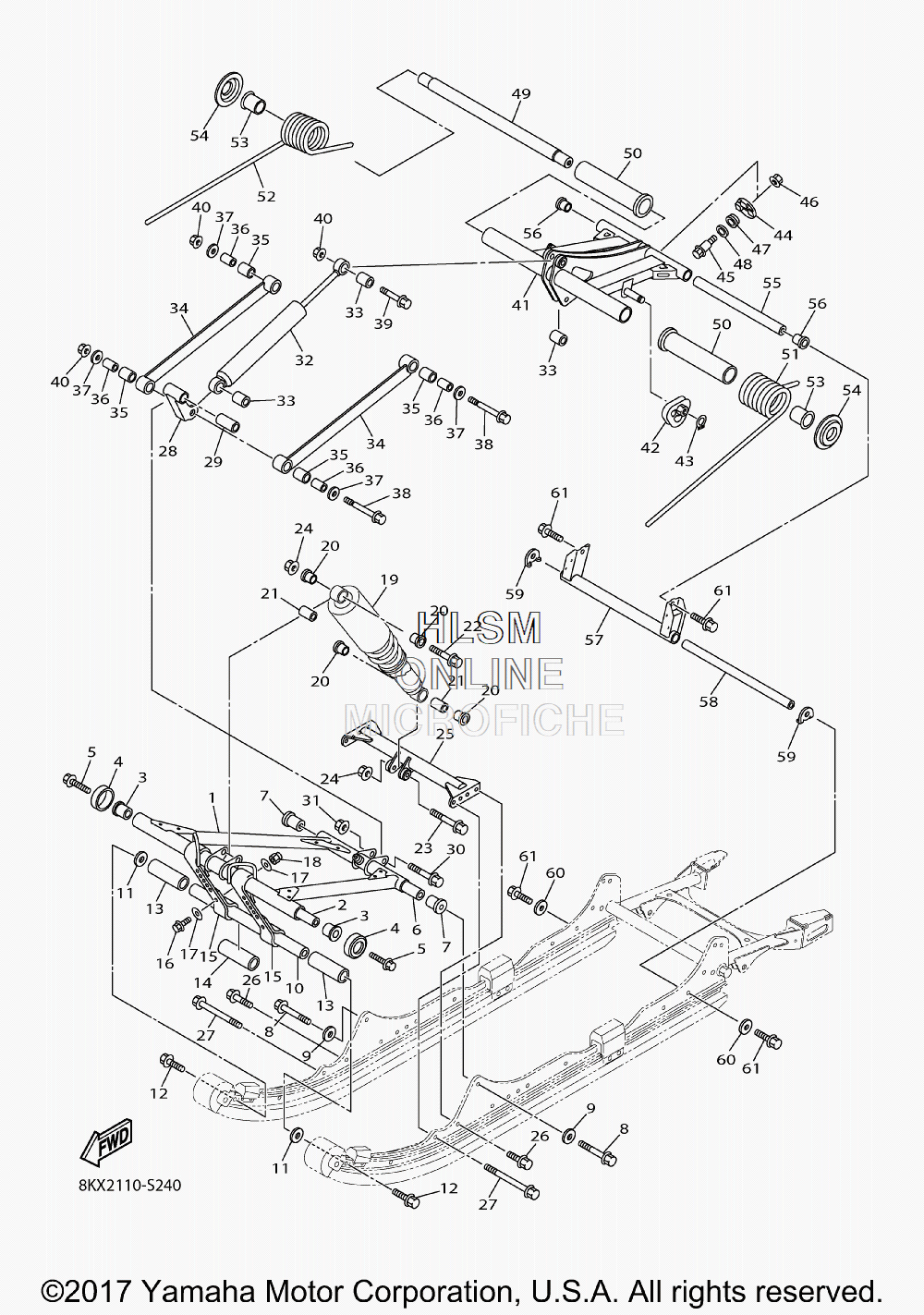

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha VK 540 - 2018 года выпуска
-
№АртикулНазвание
-
18KA-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28KA-47465-00-00 SHAFT 1SHAFT 1
-
390383-22001-00 BUSH, FORMEDBUSH, FORMED
-
48KA-47341-00-00 SPACERSPACER
-
590109-10030-00 BOLTBOLT
-
68JD-47486-00-00 SHAFT 4SHAFT 4
-
790387-10022-00 COLLARCOLLAR
-
890105-10329-00 BOLT, FLANGEBOLT, FLANGE
-
990201-10072-00 WASHER, PLATEWASHER, PLATE
-
1083R-47485-02-00 SHAFT 3SHAFT 3
-
1190201-10126-00 WASHER, PLATEWASHER, PLATE
-
1290105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
1390387-19002-00 COLLARCOLLAR
-
1490387-19007-00 COLLARCOLLAR
-
158HR-47495-00-00 STOPPER 1STOPPER 1
-
1697002-06025-00 BOLTBOLT
-
1790201-06081-00 WASHER, PLATEWASHER, PLATE
-
1895702-06300-00 NUT, NYLONNUT, NYLON
-
198KE-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
2090381-14101-00 BUSH, SOLIDBUSH, SOLID
-
2190387-105G5-00 COLLARCOLLAR
-
2295812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2395812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
2495602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
258KA-47349-10-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
2695812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
2795812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
288KA-47416-10-00 BRACKET 2BRACKET 2
-
2990387-10054-00 COLLARCOLLAR
-
3090105-10390-00 BOLT, FLANGEBOLT, FLANGE
-
3195602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
328KA-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
3390387-10023-00 COLLARCOLLAR
-
348KA-47494-00-00 ROD, RELAYROD, RELAY
-
3590386-16001-00 BUSHBUSH
-
3690387-101A1-00 COLLARCOLLAR
-
3790201-10043-00 WASHER, PLATEWASHER, PLATE
-
3890105-10288-00 BOLT, FLANGEBOLT, FLANGE
-
3990105-10390-00 BOLT, FLANGEBOLT, FLANGE
-
4095602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
418KA-47332-10-00 ARM, PIVOT 2ARM, PIVOT 2
-
428ES-47447-00-00 HOOK 2HOOK 2
-
4399009-14400-00 CIRCLIPCIRCLIP
-
448KA-47448-00-00 HOOK 3HOOK 3
-
4590109-08186-00 BOLTBOLT
-
4695602-08200-00 NUT, U FLANGENUT, U FLANGE
-
4790480-16501-00 GROMMETGROMMET
-
4890201-12047-00 WASHER, PLATEWASHER, PLATE
-
498KA-47475-00-00 SHAFT 2SHAFT 2
-
508GL-47445-00-00 PROTECTORPROTECTOR
-
518KA-47473-00-00 SPRING, REAR 1 (K=2800NMM/DEG)SPRING, REAR 1 (K=2800NMM/DEG)
-
528KA-47474-00-00 SPRING, REAR 1 (K=2800NMM/DEG)SPRING, REAR 1 (K=2800NMM/DEG)
-
5390381-28108-00 BUSH, SOLIDBUSH, SOLID
-
548ES-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
558JD-47488-00-00 SHAFT 6SHAFT 6
-
5690381-19111-00 BUSH, SOLIDBUSH, SOLID
-
578JD-47417-01-00 BRACKET 3BRACKET 3
-
5883R-47485-02-00 SHAFT 3SHAFT 3
-
5990214-10007-00 WASHER, CLAWWASHER, CLAW
-
6090201-10052-00 WASHER, PLATEWASHER, PLATE
-
6190105-10237-00 BOLT, FLANGEBOLT, FLANGE
