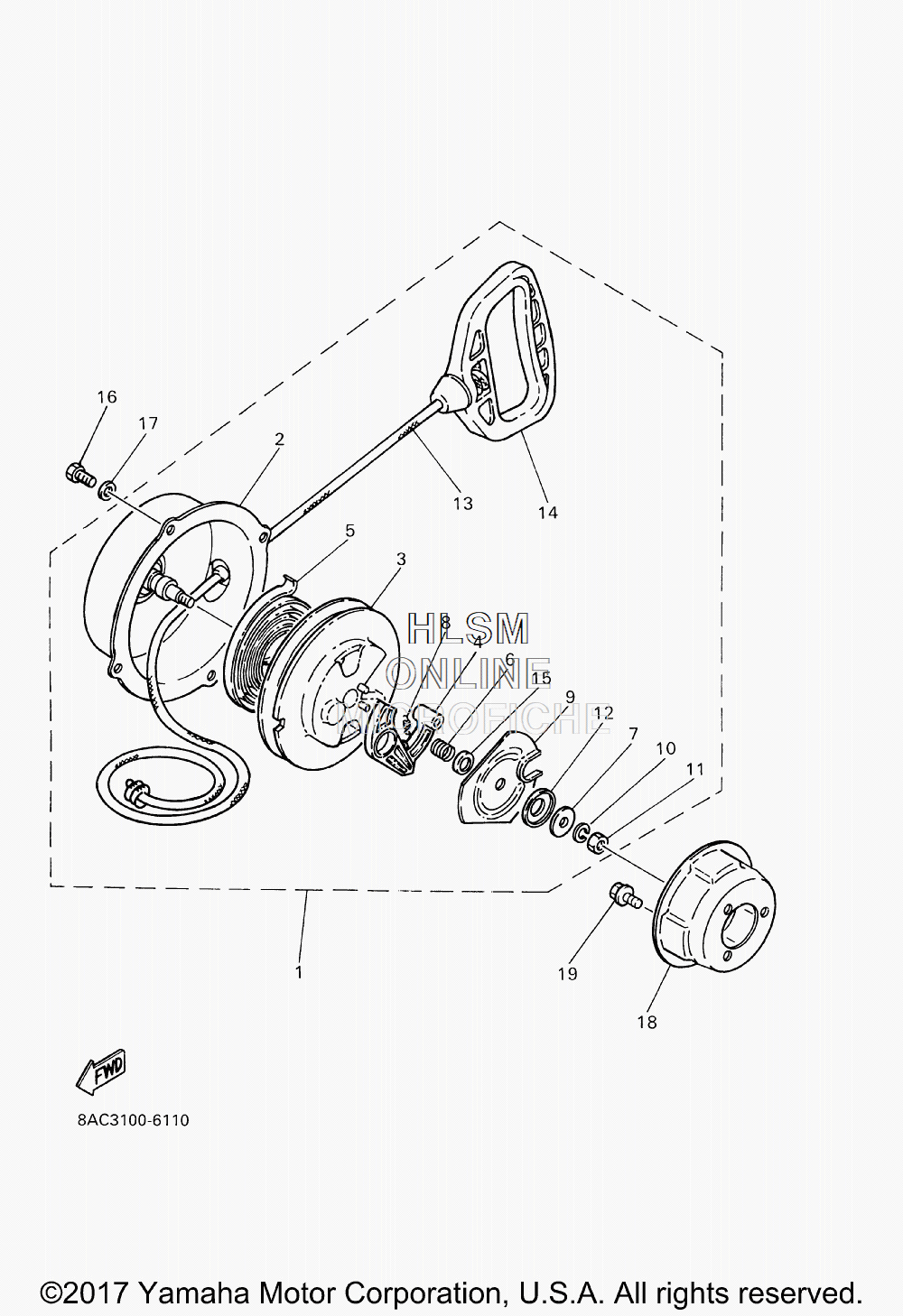

STARTER - REDUCTION GEAR W/ CLUTCH ASSY для Yamaha VK 540 - 2018 года выпуска
-
№АртикулНазвание
-
18H8-15710-00-00 STARTER ASSYSTARTER ASSY
-
28H8-15711-00-00 ...CASE, STARTER...CASE, STARTER
-
38F3-15714-01-00 ...DRUM, SHEAVE...DRUM, SHEAVE
-
48F3-15741-01-00 ...PAWL, DRIVE...PAWL, DRIVE
-
58F3-15713-01-00 ...SPRING, STARTER...SPRING, STARTER
-
68F3-15715-00-00 ...SPRING, FRICTION...SPRING, FRICTION
-
78F3-15739-01-00 ...WASHER, THRUST...WASHER, THRUST
-
88F3-15734-00-00 ...SPRING, RETURN...SPRING, RETURN
-
98F3-15716-03-00 ...PLATE, DRIVE...PLATE, DRIVE
-
1092901-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
1195301-06700-00 ...NUT...NUT
-
128G5-15739-00-00 ...WASHER, THRUST...WASHER, THRUST
-
138F3-15751-00-00 ...WIRE, STARTER...WIRE, STARTER
-
148F3-15755-00-00 ...HANDLE, STARTER...HANDLE, STARTER
-
158G5-15716-00-00 ...COLLAR...COLLAR
-
1697007-06014-00 BOLTBOLT
-
1792907-06600-00 WASHER, PLATEWASHER, PLATE
-
188H8-15723-01-00 PULLEY, STARTERPULLEY, STARTER
-
1995822-08016-00 BOLT, FLANGEBOLT, FLANGE
