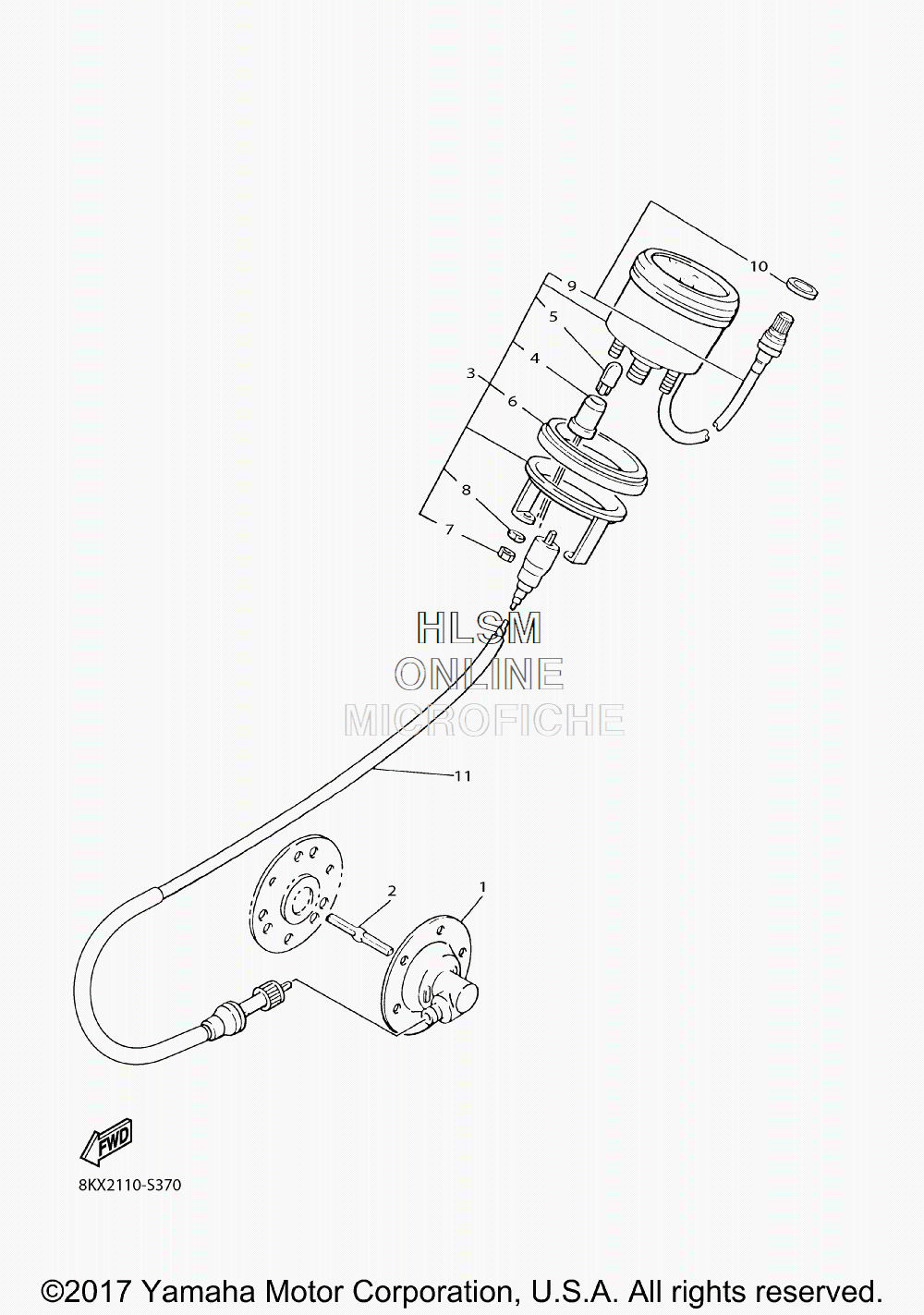

ELECTRICAL - INSTRUMENTS для Yamaha VK 540 - 2018 года выпуска
-
№АртикулНазвание
-
18JD-47700-00-00 METER GEAR HOUSING COMP.METER GEAR HOUSING COMP.
-
28K4-47715-00-00 JOINTJOINT
-
387R-83510-40-00 SPEEDOMETER ASSY (MILE/H)SPEEDOMETER ASSY (MILE/H)
-
48V7-83536-40-00 ...SOCKET, METER...SOCKET, METER
-
54R0-83517-00-00 ...BULB (12V-3.4W T10)...BULB (12V-3.4W T10)
-
68G6-83523-00-00 ...DAMPER...DAMPER
-
795302-05600-00 ...NUT, HEXAGON...NUT, HEXAGON
-
892902-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
98K1-83603-01-00 ...TRIP METER CABLE ASSY...TRIP METER CABLE ASSY
-
108K1-8366W-00-00 ......NUT......NUT
-
118H4-83560-10-00 TACHOMETER CABLE ASSYTACHOMETER CABLE ASSY
