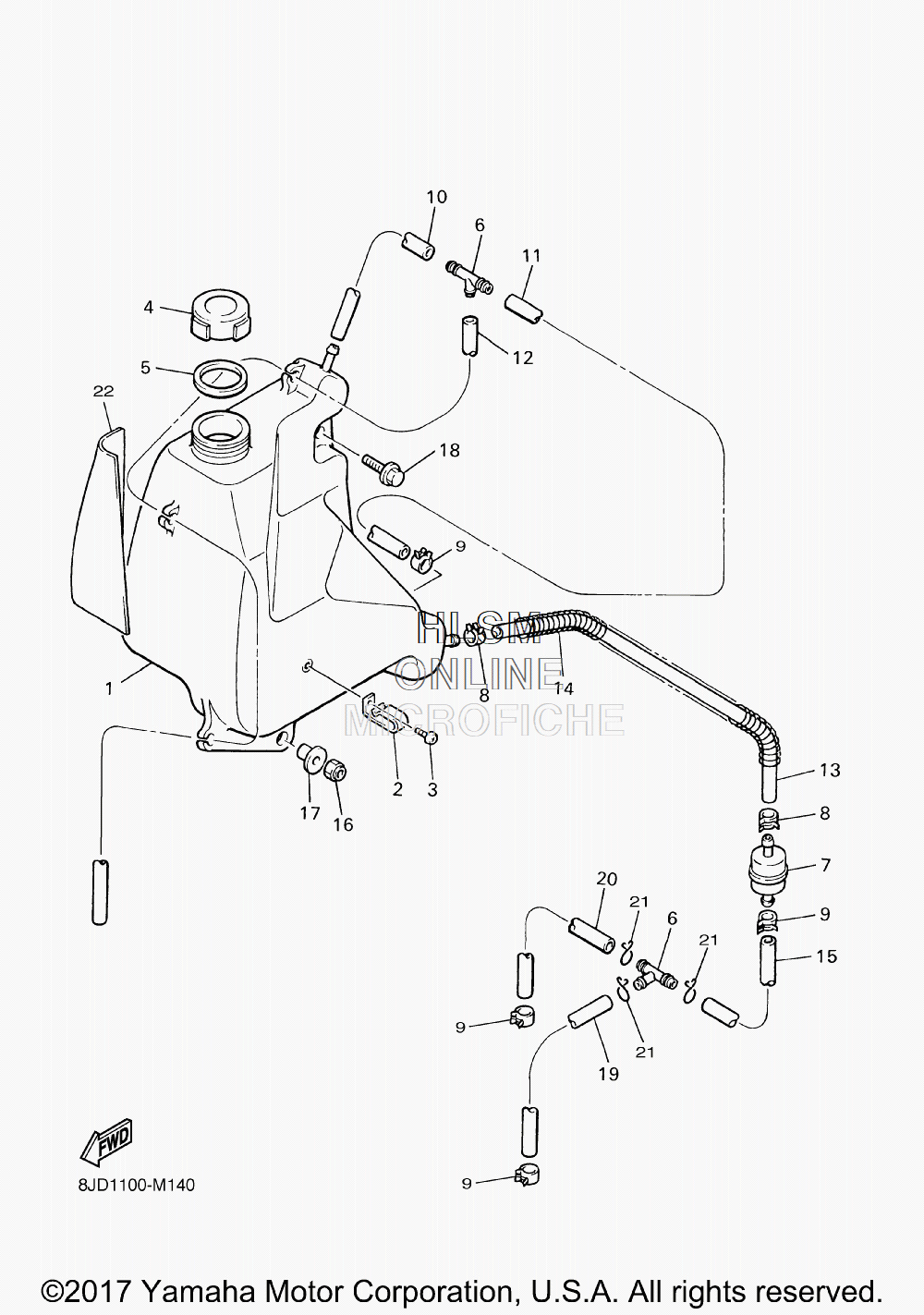

OIL TANK ASSY для Yamaha VK 540 - 2018 года выпуска
-
№АртикулНазвание
-
183R-21751-00-00 TANK, OILTANK, OIL
-
290462-10209-00 CLAMPCLAMP
-
398902-06010-00 SCREW, BINDSCREW, BIND
-
4863-21771-00-00 BODY, CAPBODY, CAP
-
590430-31003-00 GASKETGASKET
-
6801-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
78G8-13410-00-00 STRAINER HOUSING ASSYSTRAINER HOUSING ASSY
-
890467-11032-00 CLIPCLIP
-
990467-09026-00 CLIPCLIP
-
1091A30-05010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1191A30-05120-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1291A30-05085-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1391A30-07016-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1484M-24327-00-00 PROTECTOR, PIPEPROTECTOR, PIPE
-
1591A30-05004-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1695602-06100-00 NUT, S/LNUT, S/L
-
1790387-061U9-00 COLLARCOLLAR
-
1895802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1991A30-05052-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
2091A30-05060-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
2190467-08017-00 CLIPCLIP
-
228AT-21747-00-00 DAMPERDAMPER
