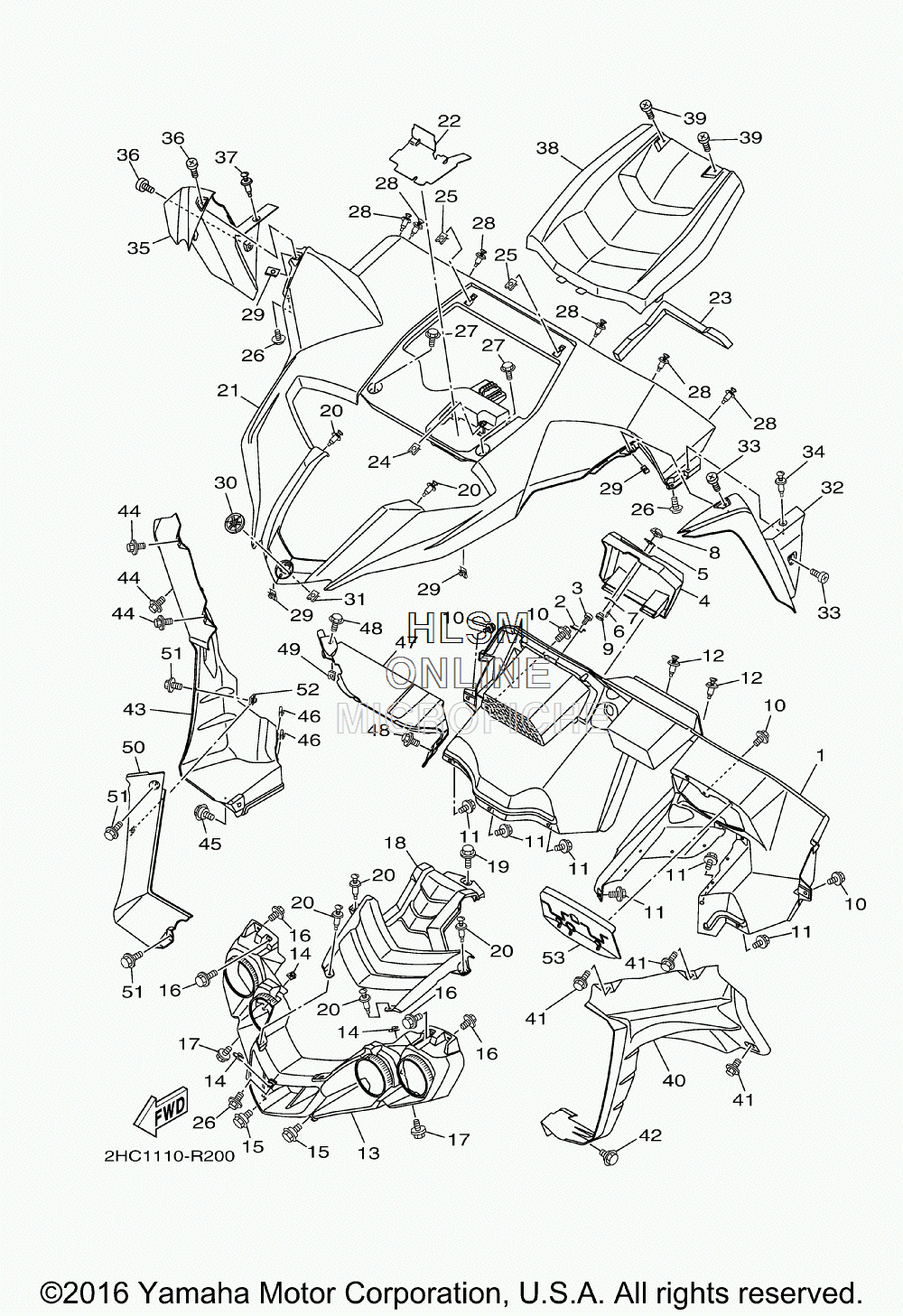

FENDER - FRONT для Yamaha YXZ1000 EPS [YXZ10YPXGL] - 2016 года выпуска
-
№АртикулНазвание
-
12HC-K7711-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
21XD-F139T-00-00 BRACKET, COVERBRACKET, COVER
-
390164-04800-00 SCREW, TAPPINGSCREW, TAPPING
-
42HC-F160F-00-00 LIDLID
-
51XD-F1515-00-00 WASHER, SPECIALWASHER, SPECIAL
-
690267-24143-00 RIVET, BLINDRIVET, BLIND
-
71XD-F1516-00-00 WASHER, SPECIAL 2WASHER, SPECIAL 2
-
81XD-2837G-00-00 LOCK 1LOCK 1
-
91XD-2837H-00-00 LOCK 2LOCK 2
-
1090111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1190119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290269-07803-00 RIVETRIVET
-
132HC-F8309-00-00 GRILLE, FRONTGRILLE, FRONT
-
1490183-060A6-00 NUT, SPRINGNUT, SPRING
-
1590109-06202-00 BOLTBOLT
-
1690119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
182HC-F3121-21-00 COVER, UPPER 1 FOR VYRS4 (UR)COVER, UPPER 1 FOR VYRS4 (UR)
-
182HC-F3121-00-00 COVER, UPPER 1 FOR DPBSE (UR)COVER, UPPER 1 FOR DPBSE (UR)
-
1990119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090269-07803-00 RIVETRIVET
-
212HC-F1511-00-00 FENDER, FRONT FOR DPBSE (UR)FENDER, FRONT FOR DPBSE (UR)
-
212HC-F1511-10-00 FENDER, FRONT FOR VYRS4 (UR)FENDER, FRONT FOR VYRS4 (UR)
-
222HC-8258K-00-00 INSULATOR 1INSULATOR 1
-
232HC-8259K-00-00 INSULATOR 2INSULATOR 2
-
2490183-060A6-00 NUT, SPRINGNUT, SPRING
-
2590183-060A6-00 NUT, SPRINGNUT, SPRING
-
2690119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2790119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2890269-07803-00 RIVETRIVET
-
2990183-060A6-00 NUT, SPRINGNUT, SPRING
-
301XD-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
3190183-06071-00 NUT, SPRINGNUT, SPRING
-
322HC-K8185-00-00 EXTENSION, FRONT FENDER 1 FOR DPBSE (UR)EXTENSION, FRONT FENDER 1 FOR DPBSE (UR)
-
322HC-K8185-10-00 EXTENSION, FRONT FENDER 1 FOR VYRS4 (UR)EXTENSION, FRONT FENDER 1 FOR VYRS4 (UR)
-
3390110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490269-07803-00 RIVETRIVET
-
352HC-K8186-10-00 EXTENSION, FRONT FENDER 2 FOR VYRS4 (UR)EXTENSION, FRONT FENDER 2 FOR VYRS4 (UR)
-
352HC-K8186-00-00 EXTENSION, FRONT FENDER 2 FOR DPBSE (UR)EXTENSION, FRONT FENDER 2 FOR DPBSE (UR)
-
3690110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3790269-07803-00 RIVETRIVET
-
382HC-F1982-00-00 HOOD 1 FOR DPBSE (UR)HOOD 1 FOR DPBSE (UR)
-
382HC-F1982-21-00 HOOD 1 FOR VYRS4 (UR)HOOD 1 FOR VYRS4 (UR)
-
3990110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
402HC-E246A-00-00 COVER 1COVER 1
-
4190119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4290109-06202-00 BOLTBOLT
-
432HC-E246E-00-00 COVER 2COVER 2
-
4490119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4590109-06202-00 BOLTBOLT
-
4690183-060A6-00 NUT, SPRINGNUT, SPRING
-
472HC-F3383-00-00 COVER, DUST SEAL 1COVER, DUST SEAL 1
-
4890119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4990183-060A6-00 NUT, SPRINGNUT, SPRING
-
502HC-F3384-00-00 COVER, DUST SEAL 2COVER, DUST SEAL 2
-
5190119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5290183-060A6-00 NUT, SPRINGNUT, SPRING
-
532HC-F338G-00-00 COVER, SEAL 3COVER, SEAL 3
