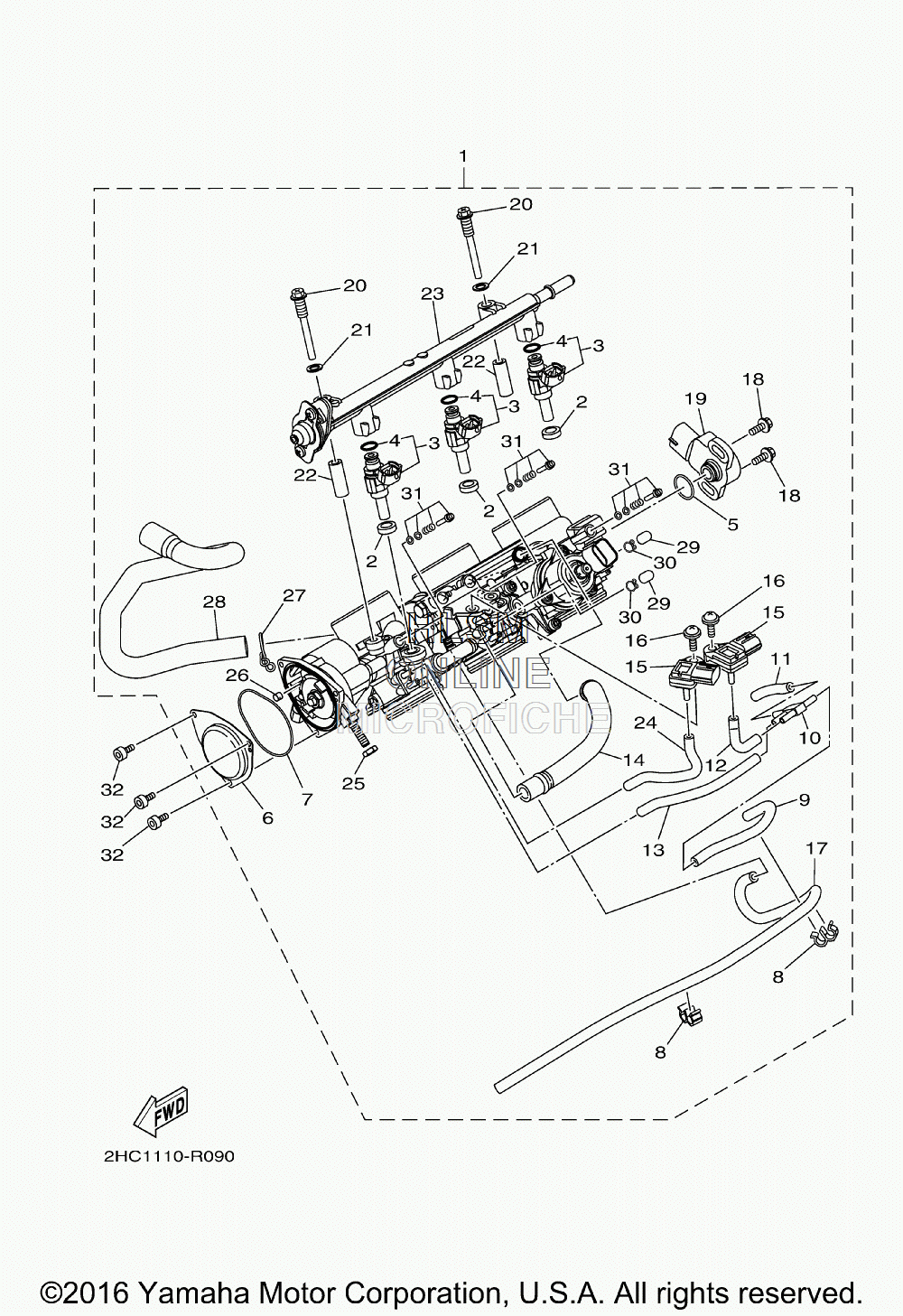

THROTTLE BODY ASSY. для Yamaha YXZ1000 EPS [YXZ10YPXGL] - 2016 года выпуска
-
№АртикулНазвание
-
12HC-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-10-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
32HC-13761-00-00 ...INJECTOR...INJECTOR
-
468V-1416A-00-00 ......O-RING......O-RING
-
55YP-14562-00-00 ...O-RING...O-RING
-
65UG-14293-00-00 ...COVER 1...COVER 1
-
75LP-14147-00-00 ...O-RING...O-RING
-
869J-2417H-00-00 ...CLAMP 1...CLAMP 1
-
92HC-13894-00-00 ...HOSE, AIR 4...HOSE, AIR 4
-
105PW-1410F-00-00 ...CONNECTOR...CONNECTOR
-
118FP-14349-30-00 ...PIPE...PIPE
-
128HF-13892-00-00 ...HOSE, AIR 2...HOSE, AIR 2
-
138GL-13893-00-00 ...HOSE, AIR 3...HOSE, AIR 3
-
148GL-13895-00-00 ...HOSE, AIR...HOSE, AIR
-
151WS-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
162C0-14216-00-00 ...SCREW...SCREW
-
1718P-13543-00-00 ...HOSE, AIR...HOSE, AIR
-
188CC-14216-10-00 ...SCREW...SCREW
-
193B4-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
208GL-13573-00-00 ...BOLT 1...BOLT 1
-
218GL-13571-00-00 ...WASHER...WASHER
-
228GL-14534-00-00 ...COLLAR...COLLAR
-
232HC-13930-00-00 ...PIPE INLET ASSEMBLY...PIPE INLET ASSEMBLY
-
245PW-14349-00-00 ...PIPE...PIPE
-
251S3-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
261UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
2790467-150A2-00 ...CLIP...CLIP
-
282HC-13545-00-00 ...HOSE 1...HOSE 1
-
29895-14169-00-00 ...CAP...CAP
-
308A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
318GL-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
3291312-04006-00 BOLTBOLT
