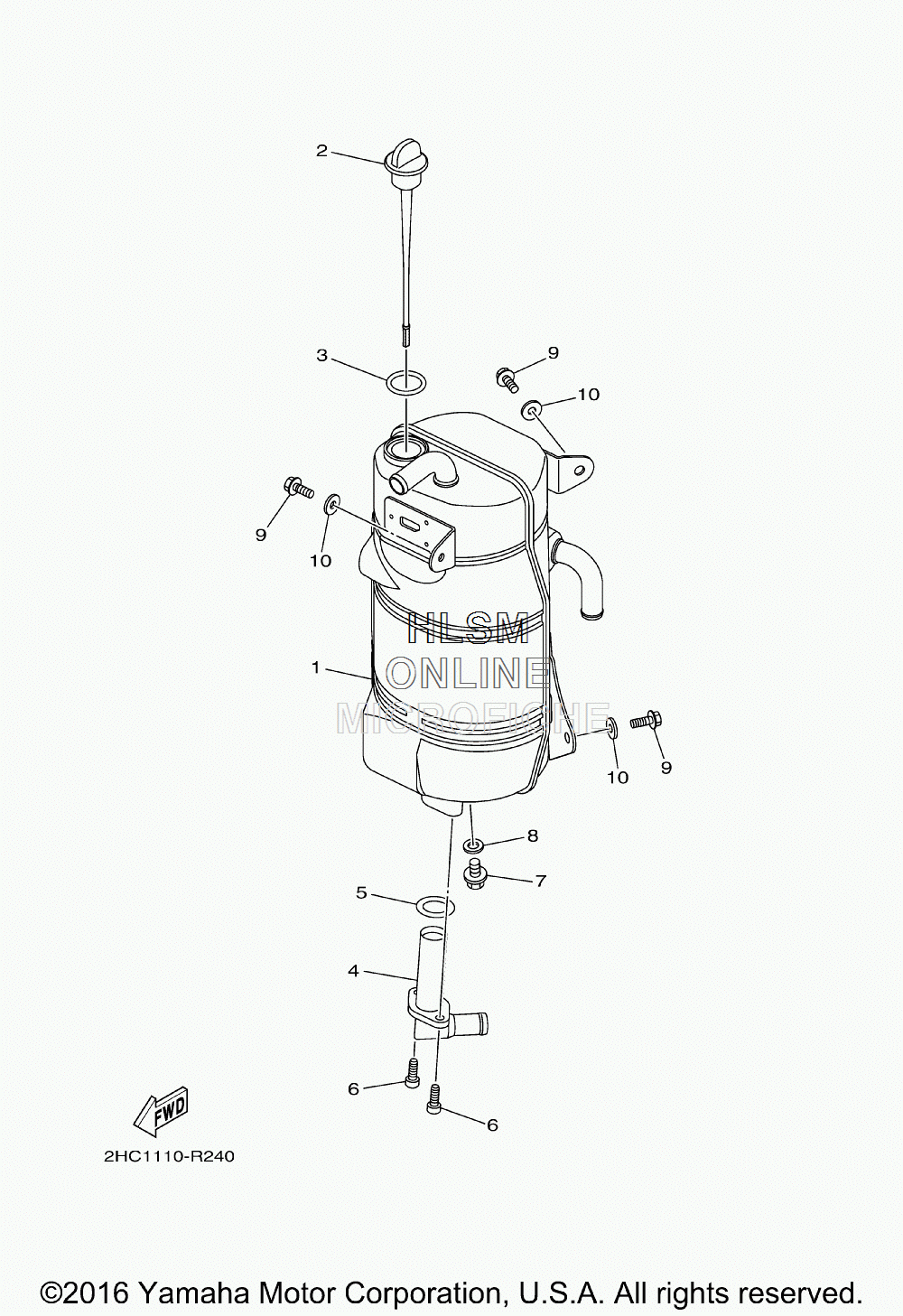

OIL TANK для Yamaha YXZ1000 EPS [YXZ10YPXGL] - 2016 года выпуска
-
№АртикулНазвание
-
12HC-21751-00-00 TANK, OILTANK, OIL
-
22HC-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
393210-22006-00 O-RINGO-RING
-
48GL-13406-00-00 OIL PIPE COMP. 2OIL PIPE COMP. 2
-
593210-24001-00 O-RINGO-RING
-
691312-06016-00 BOLTBOLT
-
795802-08012-00 BOLT, FLANGEBOLT, FLANGE
-
890430-08204-00 GASKETGASKET
-
995812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-06102-00 WASHER, PLATEWASHER, PLATE
