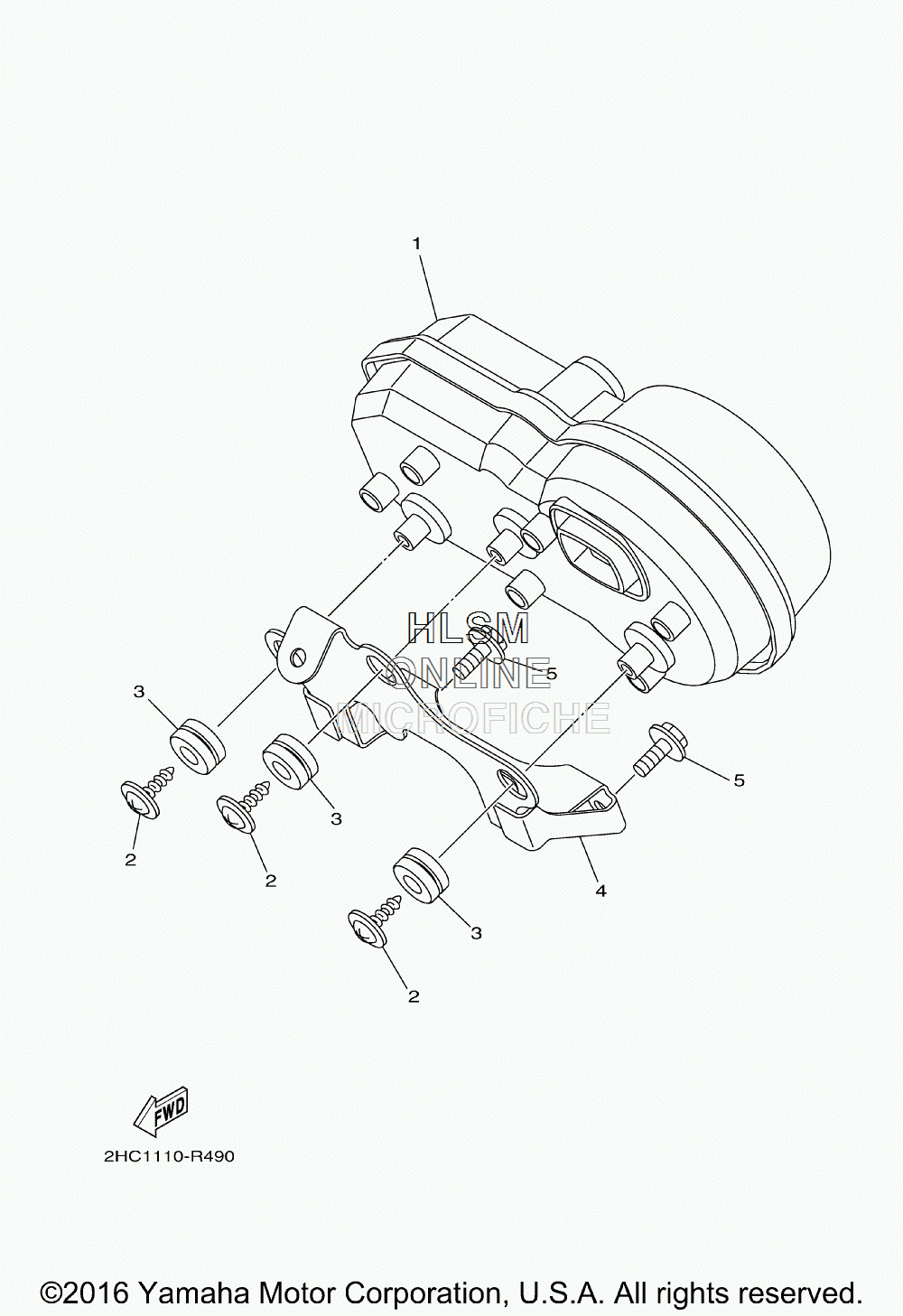

INSTRUMENT PANEL для Yamaha YXZ1000 EPS [YXZ10YPXGL] - 2016 года выпуска
-
№АртикулНазвание
-
12HC-83500-00-00 METER ASSYMETER ASSY
-
290164-05014-00 SCREW, TAPPINGSCREW, TAPPING
-
390480-14052-00 GROMMETGROMMET
-
42HC-H3519-00-00 BRACKET, METERBRACKET, METER
-
595812-06016-00 BOLT, FLANGEBOLT, FLANGE
