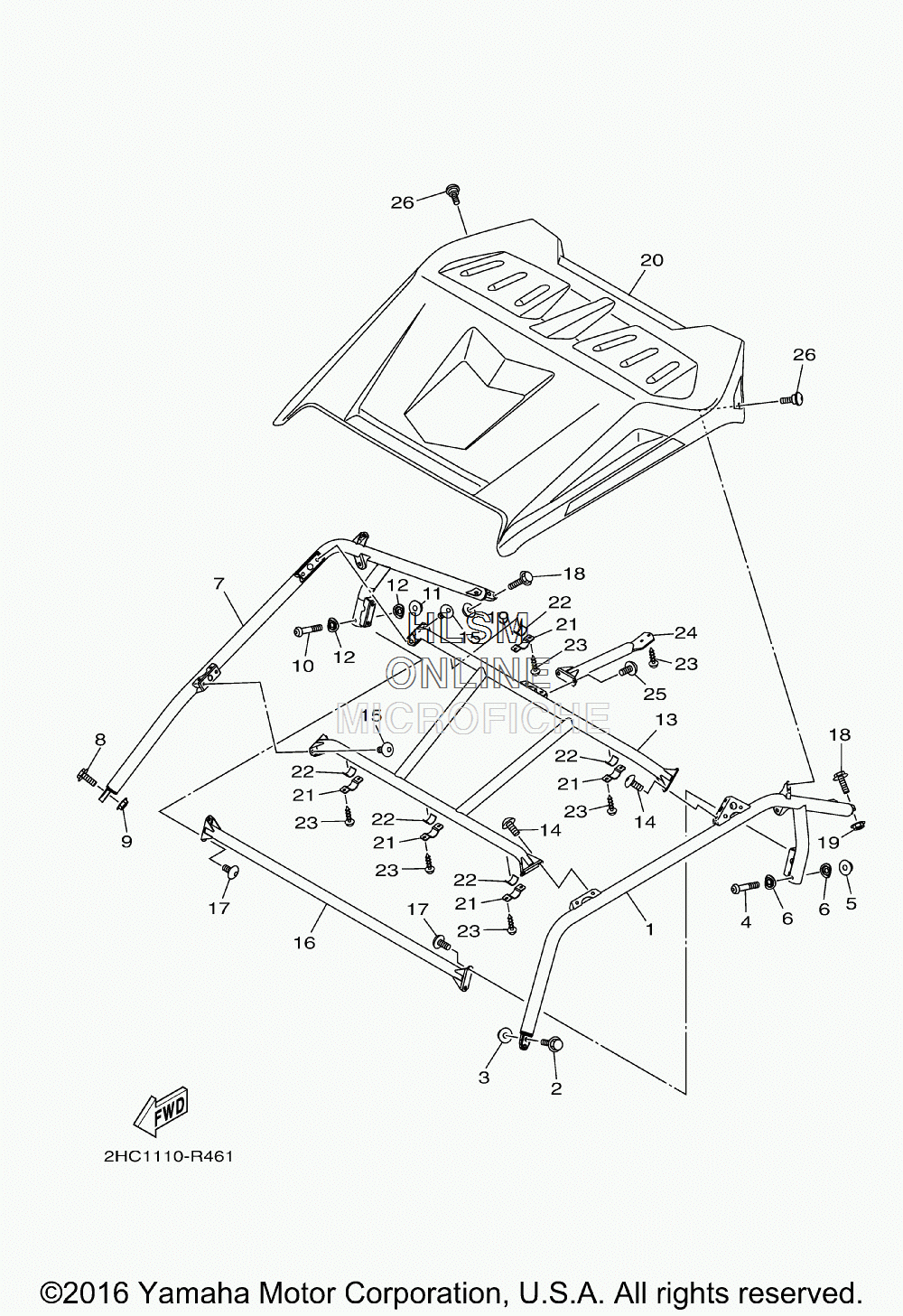

GUARD - ROOF для Yamaha YXZ1000 EPS [YXZ10YPXGL] - 2016 года выпуска
-
№АртикулНазвание
-
12HC-K831A-00-00 SUPPORT, ROOF 3 FOR VYRS4 (UR)SUPPORT, ROOF 3 FOR VYRS4 (UR)
-
12HC-K831A-20-00 SUPPORT, ROOF 3 FOR DPBSE (UR)SUPPORT, ROOF 3 FOR DPBSE (UR)
-
295812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
390185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
492012-10060-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
590185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
65UG-K7526-00-00 WASHER 2WASHER 2
-
72HC-K831E-20-00 SUPPORT, ROOF 4 FOR DPBSE (UR)SUPPORT, ROOF 4 FOR DPBSE (UR)
-
72HC-K831E-00-00 SUPPORT, ROOF 4 FOR VYRS4 (UR)SUPPORT, ROOF 4 FOR VYRS4 (UR)
-
895812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
990185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1092012-10060-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1190185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
125UG-K7526-00-00 WASHER 2WASHER 2
-
132HC-K8392-20-00 MEMBER, ROOF FRAME FOR DPBSE (UR)MEMBER, ROOF FRAME FOR DPBSE (UR)
-
132HC-K8392-00-00 MEMBER, ROOF FRAME FOR VYRS4 (UR)MEMBER, ROOF FRAME FOR VYRS4 (UR)
-
1490111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1590111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
162HC-K830A-20-00 ROOF SUPPORT ASSY 1 FOR DPBSE (UR)ROOF SUPPORT ASSY 1 FOR DPBSE (UR)
-
162HC-K830A-00-00 ROOF SUPPORT ASSY 1 FOR VYRS4 (UR)ROOF SUPPORT ASSY 1 FOR VYRS4 (UR)
-
1790111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1895812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
1990185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
202HC-K8314-00-00 COVER, SUN ROOFCOVER, SUN ROOF
-
212HC-K8366-00-00 CLAMP, SUPPORTCLAMP, SUPPORT
-
225UG-K7588-00-00 DAMPERDAMPER
-
2390167-06800-00 SCREW, TAPPINGSCREW, TAPPING
-
242HC-K830B-00-00 ROOF SUPPORT ASSY 2 FOR VYRS4 (UR)ROOF SUPPORT ASSY 2 FOR VYRS4 (UR)
-
242HC-K830B-20-00 ROOF SUPPORT ASSY 2 FOR DPBSE (UR)ROOF SUPPORT ASSY 2 FOR DPBSE (UR)
-
2590111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2690109-06253-00 BOLTBOLT
