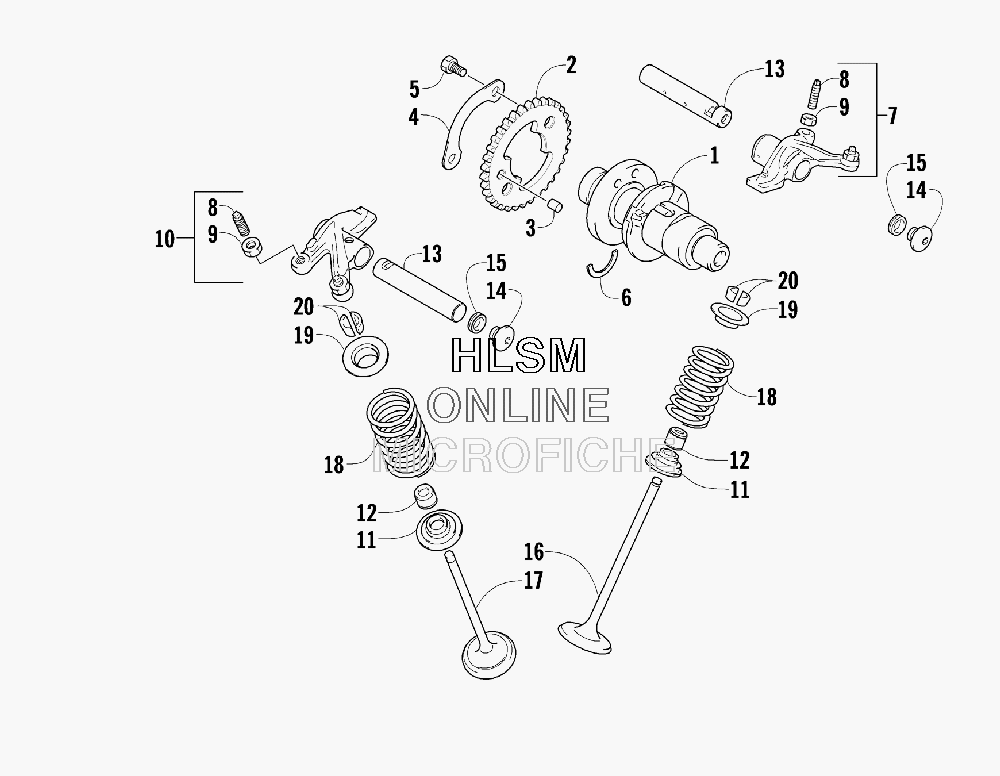

CAMSHAFT/VALVE ASSEMBLY для Arctic Cat 366 (RED) [A2008IDG4BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
10809-155 CAMSHAFTCAMSHAFT
-
20809-166 SPROCKETSPROCKET
-
30829-036 PINPIN
-
40828-086 WASHERWASHER
-
50826-117 BOLTBOLT
-
60809-165 C-RINGC-RING
-
-0808-018 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
70809-144 ...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 8-9)*...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 8-9)*
-
83304-007 ......SCREW*......SCREW*
-
93304-026 ......NUT*......NUT*
-
100809-148 ...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 8-9)*...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 8-9)*
-
110809-141 ...SEAT, SPRING*...SEAT, SPRING*
-
120809-190 ...SEAL, OIL*...SEAL, OIL*
-
130809-151 ...SHAFT, ROCKER ARM*...SHAFT, ROCKER ARM*
-
140831-053 ...PLUG, SHAFT*...PLUG, SHAFT*
-
150830-143 ...GASKET*...GASKET*
-
160809-188 ...VALVE, INTAKE*...VALVE, INTAKE*
-
170809-189 ...VALVE, EXHAUST*...VALVE, EXHAUST*
-
180809-140 ...SPRING, VALVE*...SPRING, VALVE*
-
190809-142 ...RETAINER, SPRING*...RETAINER, SPRING*
-
203303-044 ...COTTER, VALVE*...COTTER, VALVE*
