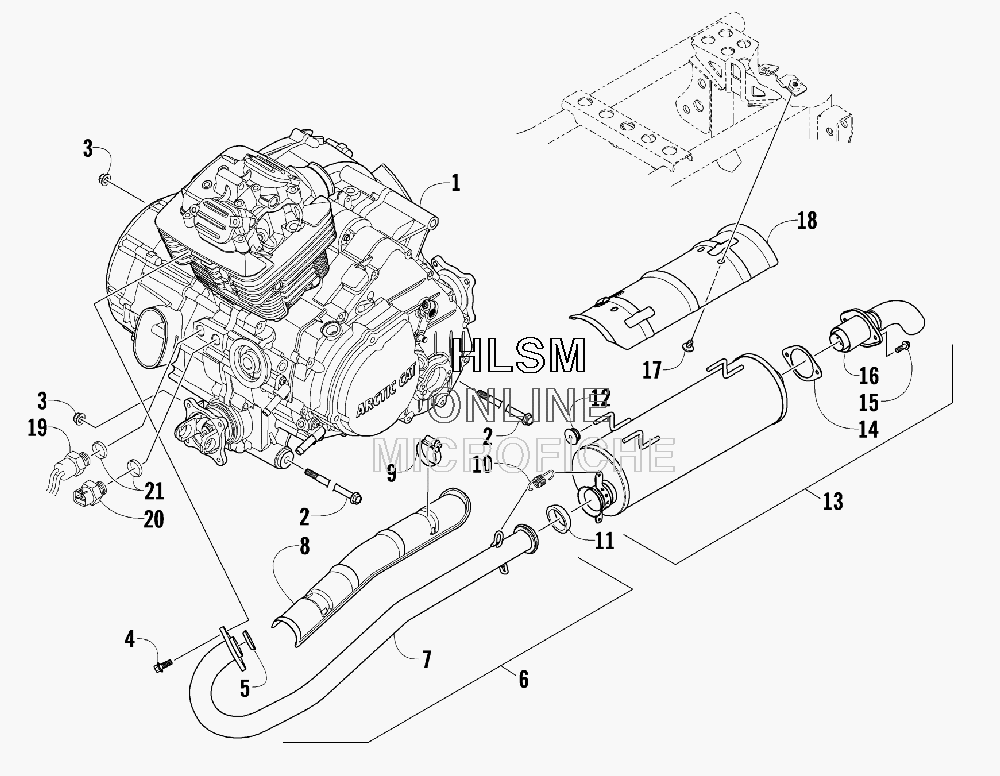

ENGINE AND EXHAUST для Arctic Cat 366 (RED) [A2008IDG4BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
13313-400 ENGINEENGINE
-
23323-174 BOLTBOLT
-
33323-178 NUT, LOCKNUT, LOCK
-
43304-565 SCREW, CAPSCREW, CAP
-
50612-188 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
63313-364 PIPE, EXHAUST - ASSEMBLY (INC. 7-9)PIPE, EXHAUST - ASSEMBLY (INC. 7-9)
-
73313-024 ...PIPE, EXHAUST...PIPE, EXHAUST
-
83313-025 ...SHIELD, EXHAUST PIPE...SHIELD, EXHAUST PIPE
-
90423-317 ...CLAMP, HOSE...CLAMP, HOSE
-
100612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
110412-007 SEAL, EXHAUSTSEAL, EXHAUST
-
123313-264 BUSHING, EXHAUST PIPEBUSHING, EXHAUST PIPE
-
133313-050 MUFFLER - ASSEMBLY (INC. 14-16)MUFFLER - ASSEMBLY (INC. 14-16)
-
143323-116 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
153304-173 ...SCREW, CAP...SCREW, CAP
-
163313-365 ...ARRESTER, SPARK - ASSEMBLY...ARRESTER, SPARK - ASSEMBLY
-
173304-187 SCREW, MACHINESCREW, MACHINE
-
183313-026 COVER, MUFFLERCOVER, MUFFLER
-
193313-432 SWITCH - TEMPERATURE - FANSWITCH - TEMPERATURE - FAN
-
203313-431 SWITCH - TEMPERATURE - LIGHTSWITCH - TEMPERATURE - LIGHT
-
210830-180 O-RINGO-RING
