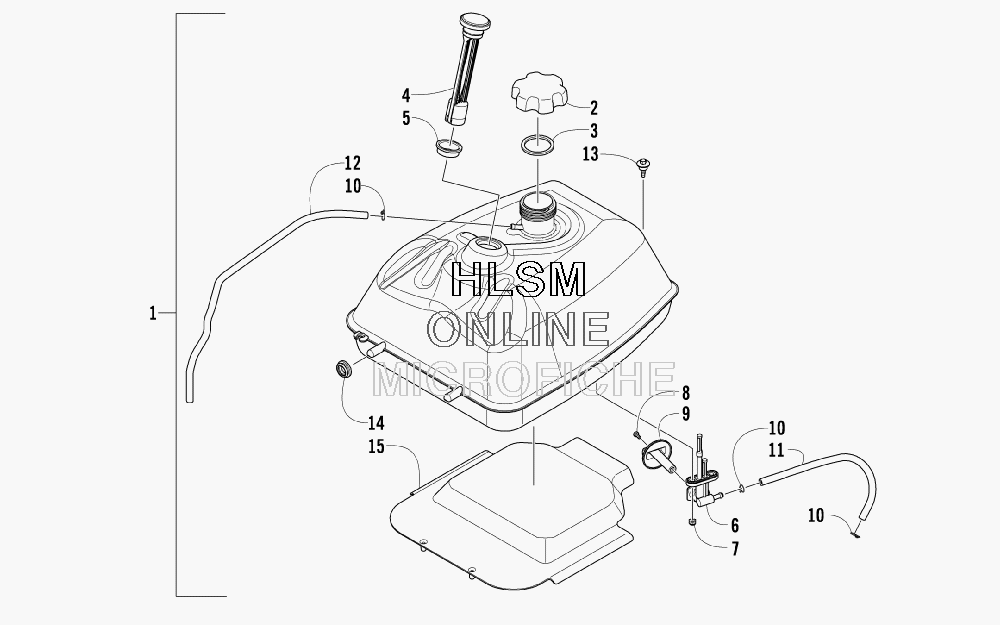

GAS TANK ASSEMBLY для Arctic Cat 366 (RED) [A2008IDG4BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
13313-283 TANK, GAS - ASSEMBLY (INC. 2-7)TANK, GAS - ASSEMBLY (INC. 2-7)
-
23323-094 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
33323-086 ......GASKET, GAS TANK CAP......GASKET, GAS TANK CAP
-
43313-324 ...GAUGE, GAS - ASSEMBLY (INC. 5)...GAUGE, GAS - ASSEMBLY (INC. 5)
-
53323-092 ......SEAL, GAS GAUGE......SEAL, GAS GAUGE
-
63313-325 ...VALVE, GAS TANK...VALVE, GAS TANK
-
73323-095 ...NUT, LOCK...NUT, LOCK
-
83323-091 SCREW, VALVE KNOBSCREW, VALVE KNOB
-
93313-287 KNOB, GAS TANK VALVEKNOB, GAS TANK VALVE
-
103303-349 CLAMP, HOSECLAMP, HOSE
-
113313-288 HOSE, GASLINEHOSE, GASLINE
-
123313-322 HOSE, GASLINEHOSE, GASLINE
-
133323-087 SCREW, GAS TANKSCREW, GAS TANK
-
140423-460 GROMMETGROMMET
-
153313-286 SHIELD, HEATSHIELD, HEAT
