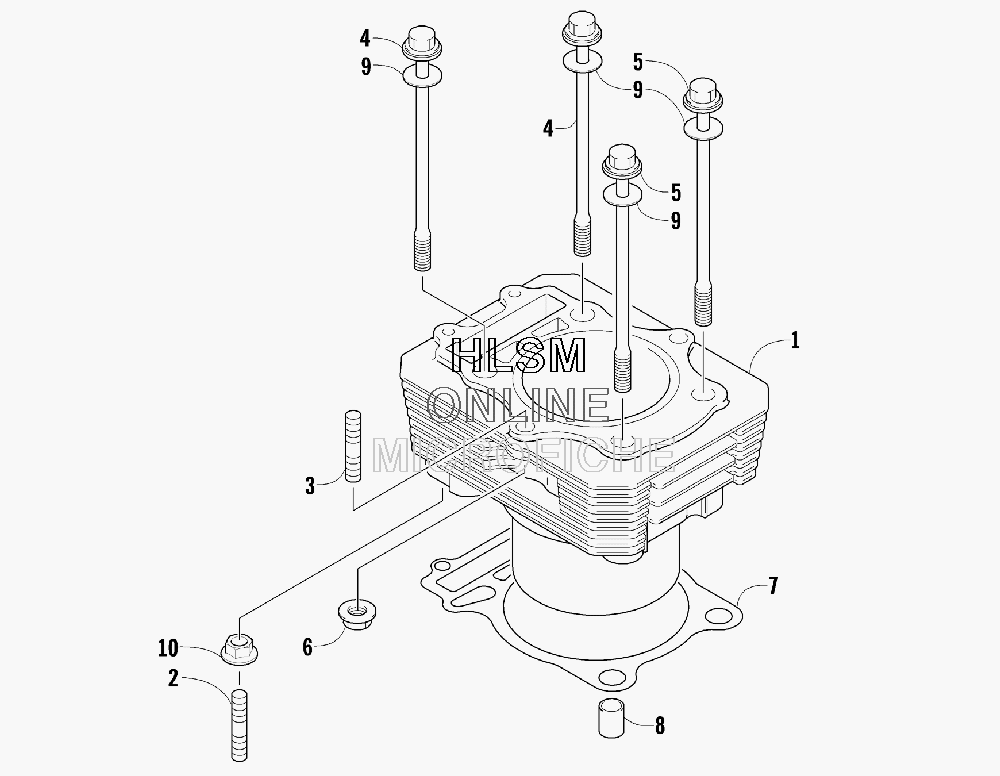

CYLINDER ASSEMBLY для Arctic Cat 366 (RED) [A2008IDG4BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
10804-042 CYLINDERCYLINDER
-
20827-044 BOLT, STUDBOLT, STUD
-
30827-019 BOLT, STUDBOLT, STUD
-
40826-061 BOLT, HEADBOLT, HEAD
-
50826-062 BOLT, HEADBOLT, HEAD
-
63303-332 NUTNUT
-
70830-053 GASKET, CYLINDERGASKET, CYLINDER
-
80829-046 PIN, DOWELPIN, DOWEL
-
90828-044 WASHER, HEAD BOLTWASHER, HEAD BOLT
-
103303-331 NUTNUT
