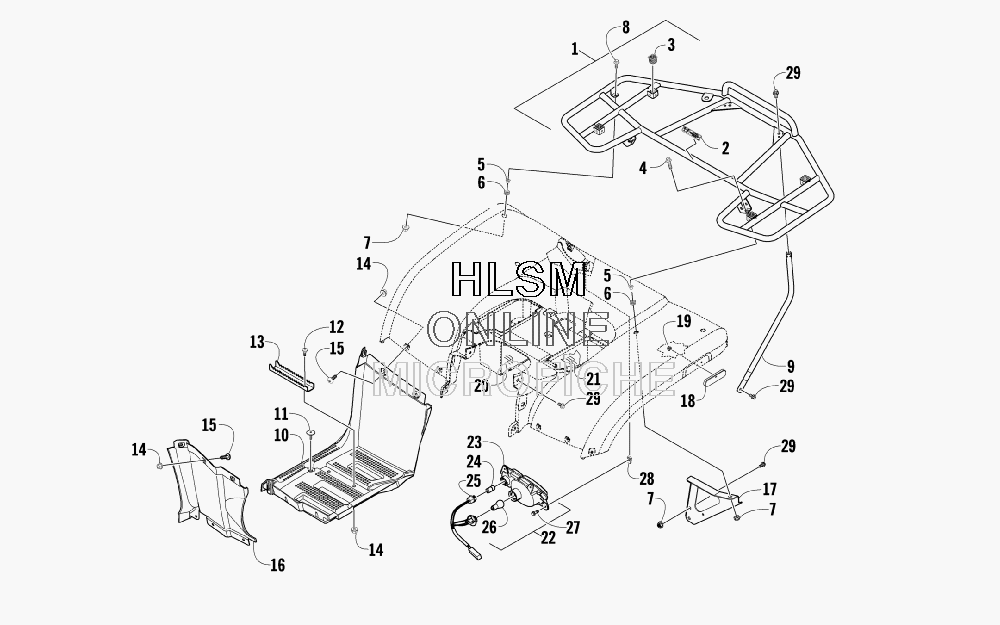

REAR RACK- FOOTWELL- AND TAILLIGHT ASSEMBLY для Arctic Cat 366 (RED) [A2008IDG4BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
13313-373 RACK, REAR - ASSEMBLY (INC. 2-3)RACK, REAR - ASSEMBLY (INC. 2-3)
-
21411-682 ...DECAL, WARNING - REAR RACK LOAD...DECAL, WARNING - REAR RACK LOAD
-
33323-214 ...BUSHING, RACK...BUSHING, RACK
-
43303-616 SCREW, CAPSCREW, CAP
-
53323-014 SPACERSPACER
-
63323-013 GROMMETGROMMET
-
73304-668 NUT, LOCKNUT, LOCK
-
83313-522 BOLT, FLANGEBOLT, FLANGE
-
93313-449 TUBE, MOUNTING - REAR RACKTUBE, MOUNTING - REAR RACK
-
103313-194 FOOTWELL - REAR - RIGHTFOOTWELL - REAR - RIGHT
-
103313-195 FOOTWELL - REAR - LEFTFOOTWELL - REAR - LEFT
-
110423-545 SCREW, BODYSCREW, BODY
-
123323-223 SCREW, SHOULDERSCREW, SHOULDER
-
133323-027 FOOTPEGFOOTPEG
-
143305-275 NUT, LOCKNUT, LOCK
-
153305-342 SCREW, MACHINESCREW, MACHINE
-
163313-462 FOOTWELL - FRONT - RIGHTFOOTWELL - FRONT - RIGHT
-
163313-463 FOOTWELL - FRONT - LEFTFOOTWELL - FRONT - LEFT
-
173313-352 BRACKET, MOUNTING - REAR RACK - RIGHTBRACKET, MOUNTING - REAR RACK - RIGHT
-
173313-353 BRACKET, MOUNTING - REAR RACK - LEFTBRACKET, MOUNTING - REAR RACK - LEFT
-
183313-360 REFLECTORREFLECTOR
-
193305-527 NUT, FLANGENUT, FLANGE
-
203313-362 SHIELD, HEAT - RIGHTSHIELD, HEAT - RIGHT
-
213313-363 SHIELD, HEAT - LEFTSHIELD, HEAT - LEFT
-
223313-382 TAILLIGHT ASSEMBLY - RIGHT (INC. 23-26)TAILLIGHT ASSEMBLY - RIGHT (INC. 23-26)
-
223313-383 TAILLIGHT ASSEMBLY - LEFT (INC. 23-26)TAILLIGHT ASSEMBLY - LEFT (INC. 23-26)
-
243313-499 ...SOCKET, TAILLIGHT - ASSEMBLY...SOCKET, TAILLIGHT - ASSEMBLY
-
253303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
263313-508 ...BULB...BULB
-
273304-029 BOLT W/WASHERBOLT W/WASHER
-
283304-061 NUT, CLIPNUT, CLIP
-
293304-543 BOLT, FLANGEBOLT, FLANGE
