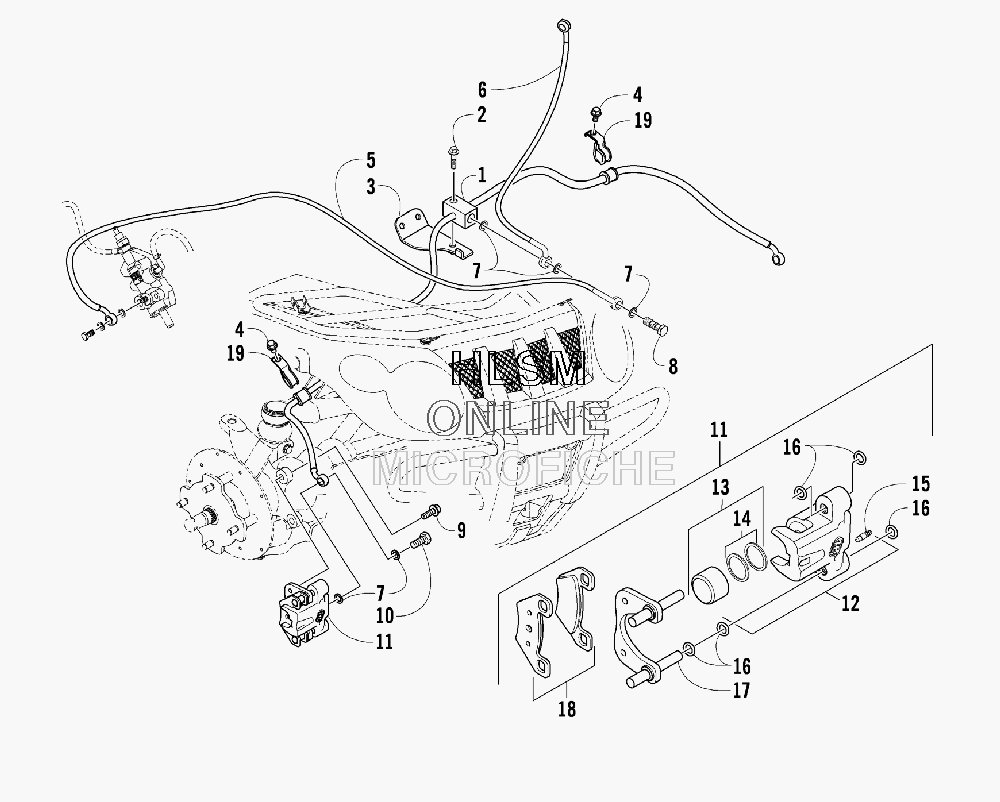

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 366 (RED) [A2008IDG4BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
13313-424 HOSE, BRAKE - ASSEMBLYHOSE, BRAKE - ASSEMBLY
-
23323-023 SCREW, CAPSCREW, CAP
-
33313-523 BRACKET, MOUNTING - BRAKE HOSE ASSEMBLYBRACKET, MOUNTING - BRAKE HOSE ASSEMBLY
-
43304-553 BOLT, FLANGEBOLT, FLANGE
-
53313-423 HOSE, BRAKEHOSE, BRAKE
-
63313-422 HOSE, BRAKEHOSE, BRAKE
-
73323-155 WASHER, CRUSHWASHER, CRUSH
-
83323-158 BOLT, BANJO-FITTING - DOUBLEBOLT, BANJO-FITTING - DOUBLE
-
93304-565 BOLT, FLANGEBOLT, FLANGE
-
103303-257 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
113323-156 CALIPER, BRAKE - RIGHT FRONT (INC. 12-18)CALIPER, BRAKE - RIGHT FRONT (INC. 12-18)
-
113323-157 CALIPER, BRAKE - LEFT FRONT (INC. 12-18)CALIPER, BRAKE - LEFT FRONT (INC. 12-18)
-
121436-160 ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 13-15)...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 13-15)
-
121436-161 ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. 13-15)...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. 13-15)
-
130502-606 ......PISTON/SEAL SET (INC. 14)......PISTON/SEAL SET (INC. 14)
-
140502-607 .........SEAL SET.........SEAL SET
-
150502-609 ......VALVE, BLEED......VALVE, BLEED
-
160502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
170502-605 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
181436-165 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
193313-550 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
