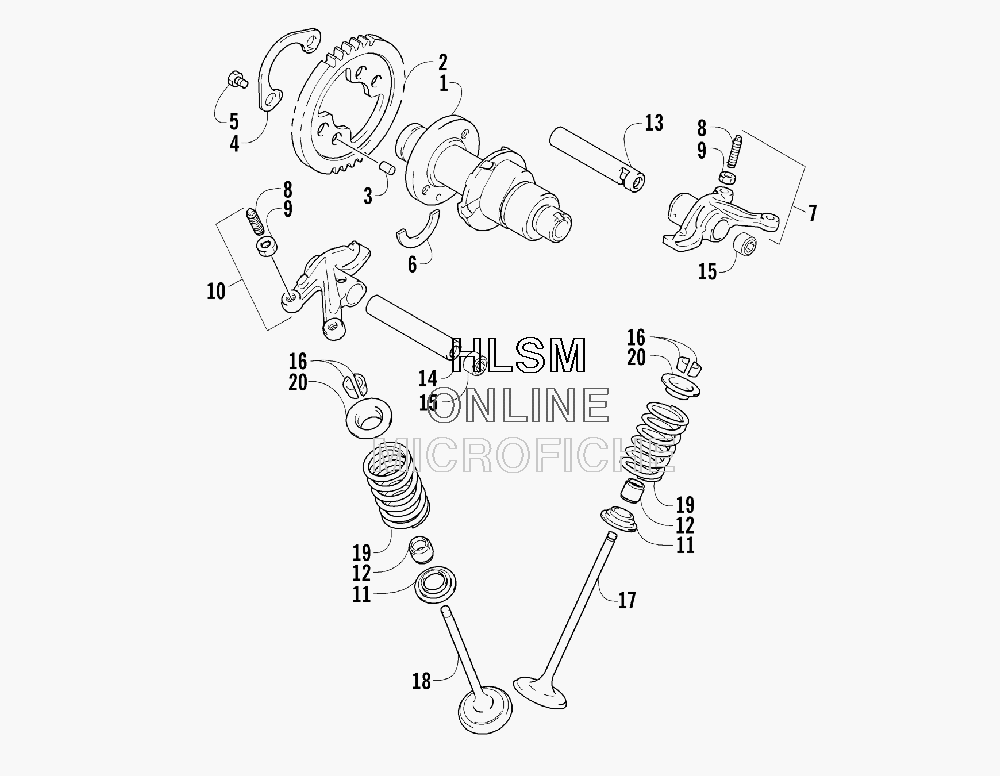

CAMSHAFT/VALVE ASSEMBLY для Arctic Cat 700 H1 EFI (SILVER) [A2008IBT4EUSL] - 2008 года выпуска

№

Артикул

Название
1

0809-200 CAMSHAFT

CAMSHAFT

59 900 ₽
2

0809-002 SPROCKET

SPROCKET

5 610 ₽
3

0829-008 PIN

PIN

210 ₽
4

0828-004 WASHER

WASHER

460 ₽
5

0826-034 BOLT

BOLT

110 ₽
6

0809-003 C-RING

C-RING

2 280 ₽
7

0809-202 ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 8-9) (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 8-9) (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

33 270 ₽
8

0809-033 ...SCREW (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

...SCREW (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

40 ₽
9

0827-007 ...NUT (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

...NUT (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

40 ₽
10

0809-205 ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 8-9) (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 8-9) (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

33 270 ₽
11

0809-006 SEAT, SPRING - VALVE (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

SEAT, SPRING - VALVE (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

440 ₽
12

0830-016 SEAL, OIL (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

SEAL, OIL (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

1 660 ₽
13

0809-007 SHAFT, ROCKER ARM - INTAKE (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

SHAFT, ROCKER ARM - INTAKE (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

3 740 ₽
14

0809-008 SHAFT, ROCKER ARM - EXHAUST (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

SHAFT, ROCKER ARM - EXHAUST (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

3 740 ₽
15

0831-066 PLUG, SHAFT (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

PLUG, SHAFT (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

2 700 ₽
16

0809-014 KEEPER, VALVE (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

KEEPER, VALVE (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

400 ₽
17

0809-039 VALVE, INTAKE (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

VALVE, INTAKE (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

4 780 ₽
18

0809-040 VALVE, EXHAUST (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

VALVE, EXHAUST (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

9 560 ₽
19

0809-138 SPRING, VALVE (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

SPRING, VALVE (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

900 ₽
20

0809-013 RETAINER, SPRING (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

RETAINER, SPRING (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-082)

2 490 ₽

Все узлы модели:
