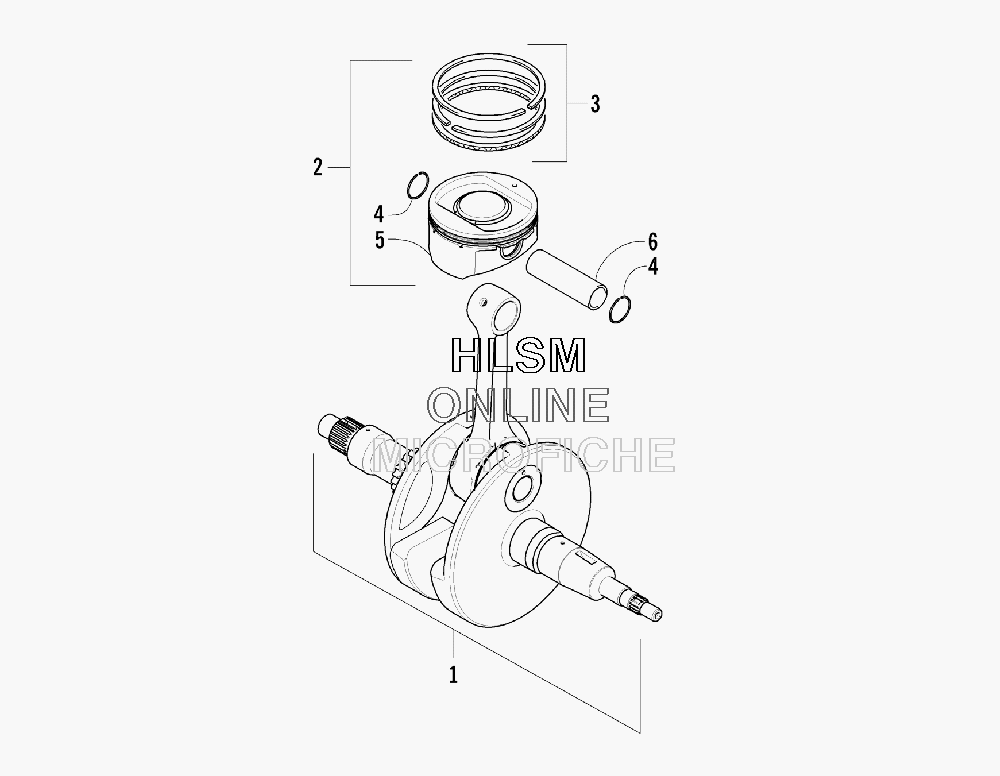

CRANKSHAFT AND PISTON ASSEMBLY для Arctic Cat 700 H1 EFI (SILVER) [A2008IBT4EUSL] - 2008 года выпуска
-
№АртикулНазвание
-
10805-032 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
20805-158 PISTON SET (INC. 3-6)PISTON SET (INC. 3-6)
-
30805-132 ...RING, PISTON - SET...RING, PISTON - SET
-
40831-001 ...CIRCLIP, PISTON PIN...CIRCLIP, PISTON PIN
-
50805-131 ...PISTON...PISTON
-
60805-210 ...PIN, PISTON...PIN, PISTON
