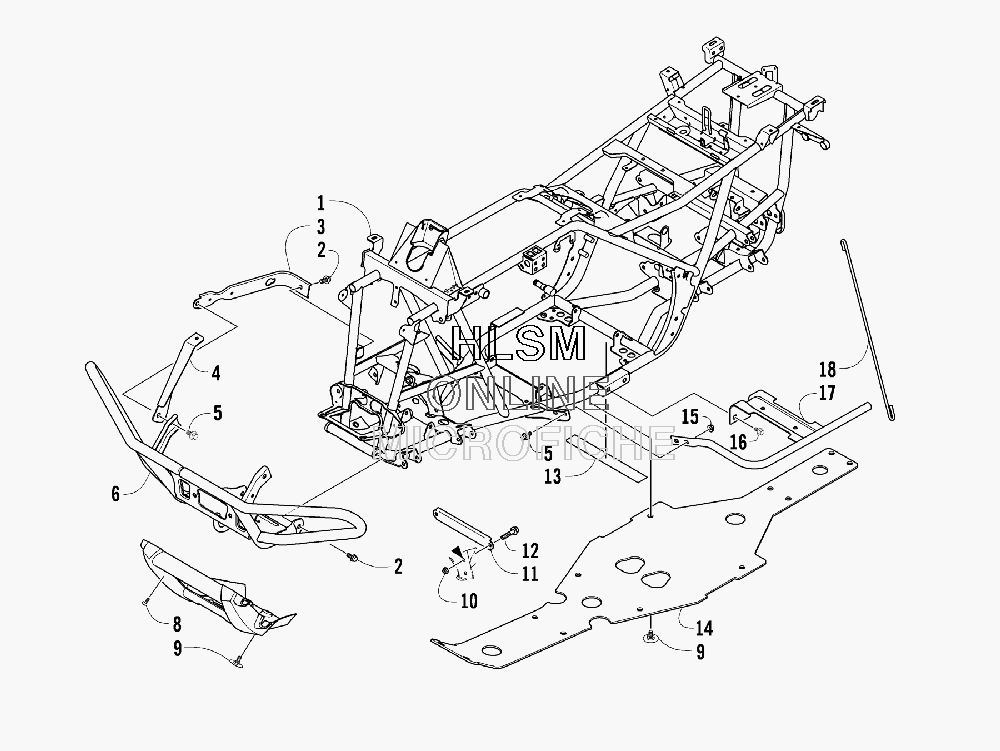

FRAME AND RELATED PARTS для Arctic Cat 700 H1 EFI (SILVER) [A2008IBT4EUSL] - 2008 года выпуска
-
№АртикулНазвание
-
12506-541 FRAME, MAIN-BLACK(450/650/700)FRAME, MAIN-BLACK(450/650/700)
-
28409-020 SCREW, CAPSCREW, CAP
-
31506-596 CHANNEL, BUMPER MOUNTING-BLACK - RIGHTCHANNEL, BUMPER MOUNTING-BLACK - RIGHT
-
30506-653 CHANNEL, BUMPER MOUNTING-BLACK - LEFTCHANNEL, BUMPER MOUNTING-BLACK - LEFT
-
41506-562 BRACKET, MOUNTING - BUMPER-BLACK - RIGHTBRACKET, MOUNTING - BUMPER-BLACK - RIGHT
-
41506-563 BRACKET, MOUNTING - BUMPER-BLACK - LEFTBRACKET, MOUNTING - BUMPER-BLACK - LEFT
-
58408-816 SCREW, CAPSCREW, CAP
-
61506-855 BUMPER, FRONT-BLACKBUMPER, FRONT-BLACK
-
72406-732 FASCIA, BUMPER-FRONT (MOLDED) -SILVERFASCIA, BUMPER-FRONT (MOLDED) -SILVER
-
80423-419 SCREW, MACH-TSTRH-M6-1.0 X 16 BLACKSCREW, MACH-TSTRH-M6-1.0 X 16 BLACK
-
90423-101 SCREW, BODYSCREW, BODY
-
100423-744 NUT, LOCKNUT, LOCK
-
111506-429 BRACE, A-ARM - PTD BLACKBRACE, A-ARM - PTD BLACK
-
128409-025 SCREW, CAPSCREW, CAP
-
130406-289 PAD, FRAMEPAD, FRAME
-
141406-030 PANEL, BELLYPANEL, BELLY
-
158424-802 NUT, FLANGENUT, FLANGE
-
168409-016 SCREW, CAPSCREW, CAP
-
171506-380 FOOTREST - RIGHT BLACKFOOTREST - RIGHT BLACK
-
171506-379 FOOTREST - LEFT BLACKFOOTREST - LEFT BLACK
-
182506-423 ROD, SUPPORT-BLACKROD, SUPPORT-BLACK
