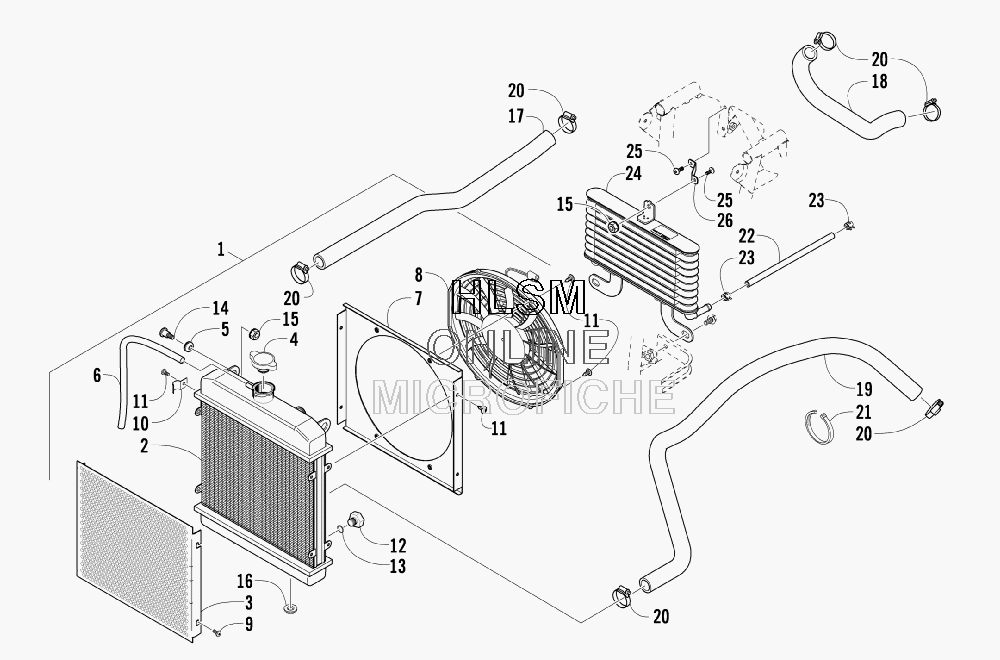

COOLING ASSEMBLY для Arctic Cat 700 H1 EFI (SILVER) [A2008IBT4EUSL] - 2008 года выпуска
-
№АртикулНазвание
-
10413-199 RADIATOR ASSEMBLY (INC. 2-13)RADIATOR ASSEMBLY (INC. 2-13)
-
20413-205 ...RADIATOR...RADIATOR
-
30413-007 ...SCREEN, RADIATOR...SCREEN, RADIATOR
-
40413-002 ...CAP, RADIATOR...CAP, RADIATOR
-
50423-030 ...GROMMET...GROMMET
-
60610-016 ...HOSE - 25 FT...HOSE - 25 FT
-
70413-203 ...SHROUD, FAN...SHROUD, FAN
-
80413-123 ...FAN, COOLING...FAN, COOLING
-
98475-512 ...SCREW, MACHINE...SCREW, MACHINE
-
100423-351 ...CLAMP, WIRE...CLAMP, WIRE
-
110623-378 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
120413-195 ...PLUG, DRAIN...PLUG, DRAIN
-
131602-213 ...O-RING...O-RING
-
140423-484 SCREW, SHOULDERSCREW, SHOULDER
-
150623-038 NUT W/WASHERNUT W/WASHER
-
160423-028 BUSHING, STEMBUSHING, STEM
-
170410-002 HOSE, COOLANT - UPPERHOSE, COOLANT - UPPER
-
180410-022 HOSE, COOLANT - CROSSOVERHOSE, COOLANT - CROSSOVER
-
190410-041 HOSE, COOLANT - LOWERHOSE, COOLANT - LOWER
-
200423-496 CLAMP, HOSECLAMP, HOSE
-
210123-788 CABLE TIECABLE TIE
-
220410-127 HOSE, OIL COOLERHOSE, OIL COOLER
-
230423-632 CLAMP, HOSECLAMP, HOSE
-
240413-163 COOLER, OILCOOLER, OIL
-
258476-612 SCREW, MACHINESCREW, MACHINE
-
260513-022 BRACKET, MOUNTING - OIL COOLER - UPPERBRACKET, MOUNTING - OIL COOLER - UPPER
