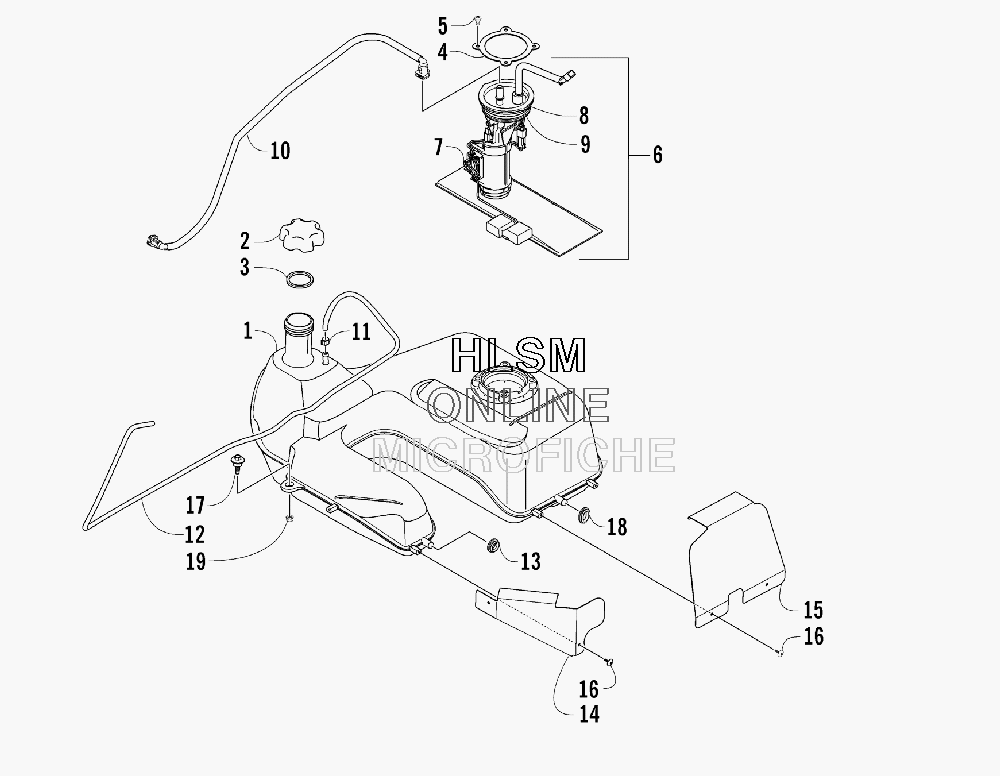

GAS TANK ASSEMBLY для Arctic Cat 700 H1 EFI (SILVER) [A2008IBT4EUSL] - 2008 года выпуска
-
№АртикулНазвание
-
10570-159 TANK, GAS - ASSEMBLY (INC. 2-5 AND ONE NO. 9)TANK, GAS - ASSEMBLY (INC. 2-5 AND ONE NO. 9)
-
20470-438 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
30109-733 ...GASKET, GAS TANK CAP...GASKET, GAS TANK CAP
-
40470-606 ...PLATE, MOUNTING - FUEL PUMP...PLATE, MOUNTING - FUEL PUMP
-
58476-612 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
60570-207 PUMP, FUEL - ASSEMBLY (INC. 7-9)PUMP, FUEL - ASSEMBLY (INC. 7-9)
-
70570-252 ...SENSOR, FUEL LEVEL - KIT (INC. 8-9)...SENSOR, FUEL LEVEL - KIT (INC. 8-9)
-
80470-614 ...SEAL, FUEL PUMP...SEAL, FUEL PUMP
-
90470-613 ...SEAL, FUEL PUMP...SEAL, FUEL PUMP
-
100470-645 HOSE, GASLINE - ASSEMBLYHOSE, GASLINE - ASSEMBLY
-
110423-688 CLAMP, HOSECLAMP, HOSE
-
120410-070 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
130423-460 GROMMETGROMMET
-
140470-709 SHIELD, HEAT - GAS TANK - FRONTSHIELD, HEAT - GAS TANK - FRONT
-
150470-710 SHIELD, HEAT - GAS TANK - REARSHIELD, HEAT - GAS TANK - REAR
-
160623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
170423-732 SCREW, GAS TANKSCREW, GAS TANK
-
180423-806 GROMMETGROMMET
-
190623-038 NUT W/WASHERNUT W/WASHER
